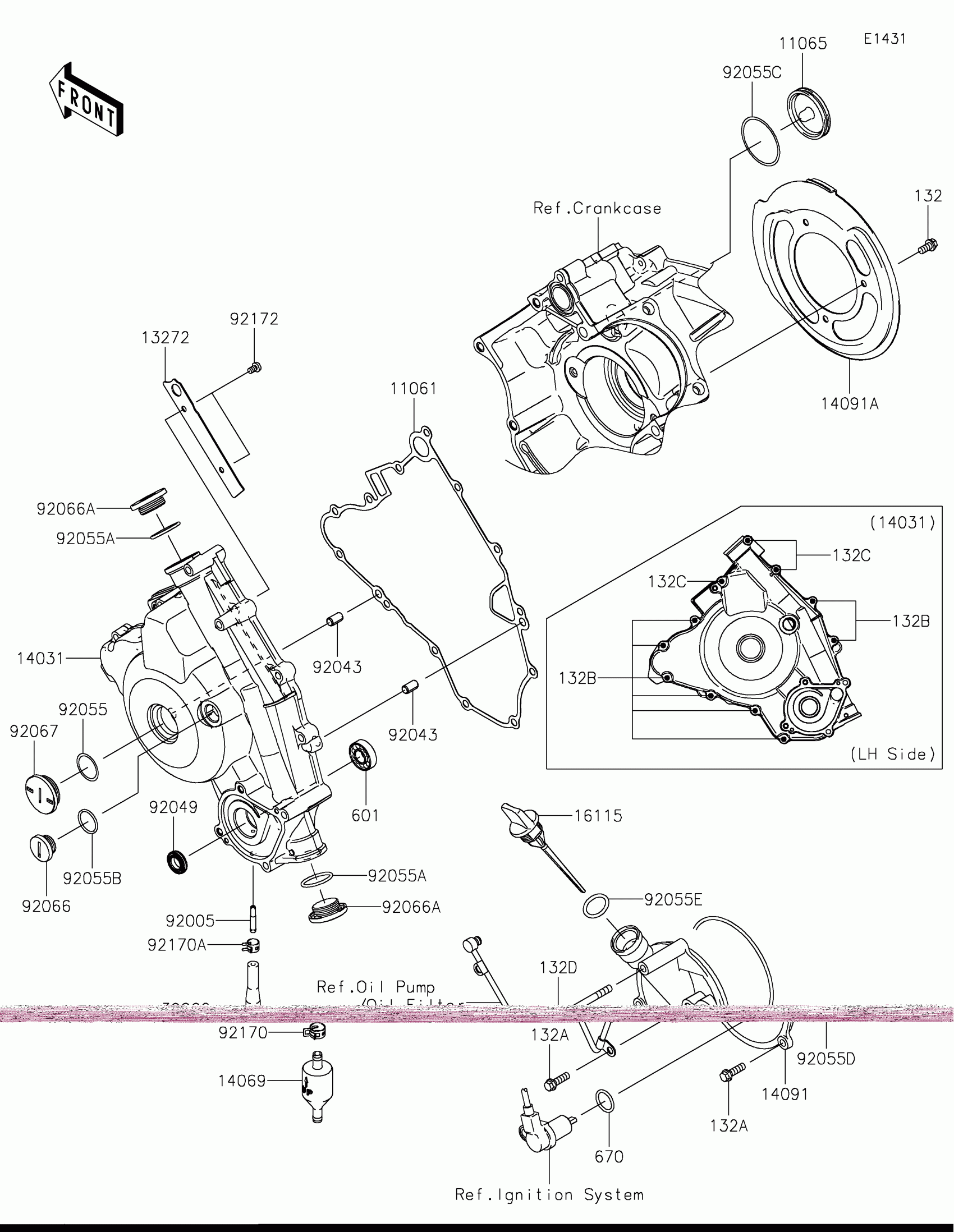

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Engine Cover(s) Diagram

Description

Price

11061

GASKET

11061-1119

$21.13

11065

CAP

11065-1151

$16.26

13272

PLATE

13272-1090

$3.65

14031

COVER-GENERATOR

14031-0127

$164.53

14069

BREATHER

14069-1051

$10.19

14091

COVER

14091-1365

$73.61

14091A

COVER,BELT CONVERTER

14091-1571

$21.80

16115

CAP-OIL FILLER

16115-0001

$14.18

39062

HOSE-COOLING,CARBURETOR-VALVE

39062-1382

$5.08

92005

FITTING

92005-1264

$7.56

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,12X22X5

92049-0783

$7.75

92055

RING-O,27.7X2.4

92055-091

$6.22

92055A

RING-O,25.7X2.4

92055-1136

$5.00

92055B

RING-O,20X2

92055-1146

$8.58

92055C

RING-O,44.7X2.4

92055-1279

$7.34

92055D

RING-O,99.5X2.0

92055-1632

$11.16

92055E

RING-O,20X3

92055-2185

$1.03

92066

PLUG,COVER

92066-0011

$15.94

92066A

PLUG,25X8

92066-0012

$11.70

92067

PLUG,30X8

92067-024

$11.29

92170

CLAMP

92170-1492

$5.00

92170A

CLAMP

92170-1493

$5.00

92172

SCREW,5X8

92172-0119

$2.12

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

132B

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132C

BOLT-FLANGED-SMALL,6X55

132BA0655

$2.80

132D

BOLT-FLANGED-SMALL,6X65

132BA0665

$4.45

601

BEARING-BALL

601A6001

$11.71

670

O RING,18MM

670D2018

$1.91
