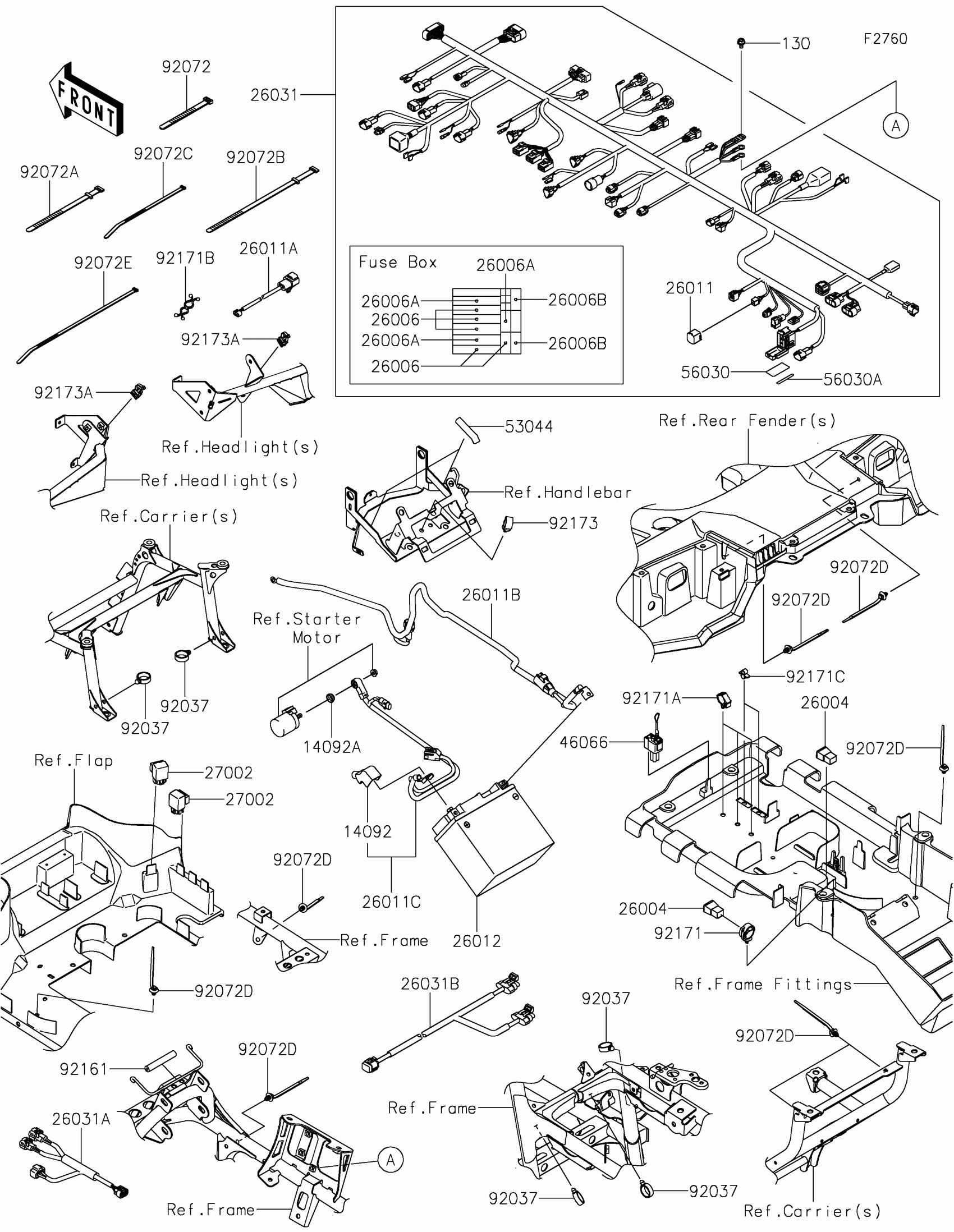

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Chassis Electrical Equipment Diagram
#
Description
Price
14092
COVER
14092-0767
$7.88
14092A
COVER,MAGNETIC SW.
14092-0851
$1.93
26004
FUSE-ASSY,40A
26004-0035
$4.11
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,10A,RED
26006-0009
Unavailable
26006B
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,CAP
26011-0271
$14.74
26011A
WIRE-LEAD,EPS EXTENSION
26011-0312
$29.31
26011B
WIRE-LEAD,BATTERY(-)
26011-0744
$46.13
26011C
WIRE-LEAD,BATTERY(+)
26011-2463
$79.14
26012
BATTERY,MF,KMX14-BS,12V 12AH
26012-0785
Unavailable
26031
HARNESS,MAIN
26031-4045
$543.30
26031A
HARNESS,INJECTOR
26031-4136
$54.19
26031B
HARNESS,TAIL LAMP
26031-4176
$31.39
27002
RELAY-ASSY
27002-1062
$45.39
46066
CONNECTOR-ASSY,RESET
46066-0001
$26.91
53044
TRIM,L=60
53044-0651
$2.70
56030
LABEL,FUSE BOX,10A&15A
56030-0401
$3.77
56030A
LABEL,FUSE BOX,30A
56030-0404
$3.77
92037
CLAMP,HOSE
92037-1827
$7.45
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=186
92072-056
$5.00
92072B
BAND,L=278
92072-1087
Unavailable
92072C
BAND,L=188
92072-1239
$1.73
92072D
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92072E
BAND,L=292.1
92072-3509
Unavailable
92161
DAMPER,4.5X11X68
92161-0988
$2.67
92171
CLAMP,CLIP,DIA=20
92171-0068
$2.80
92171A
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171B
CLAMP
92171-0476
$3.90
92171C
CLAMP
92171-0477
$3.35
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP,W/EDGE CLIP,DIA.6-45
92173-1827
$2.34
130
BOLT-FLANGED,6X10
130BA0610
$1.20
