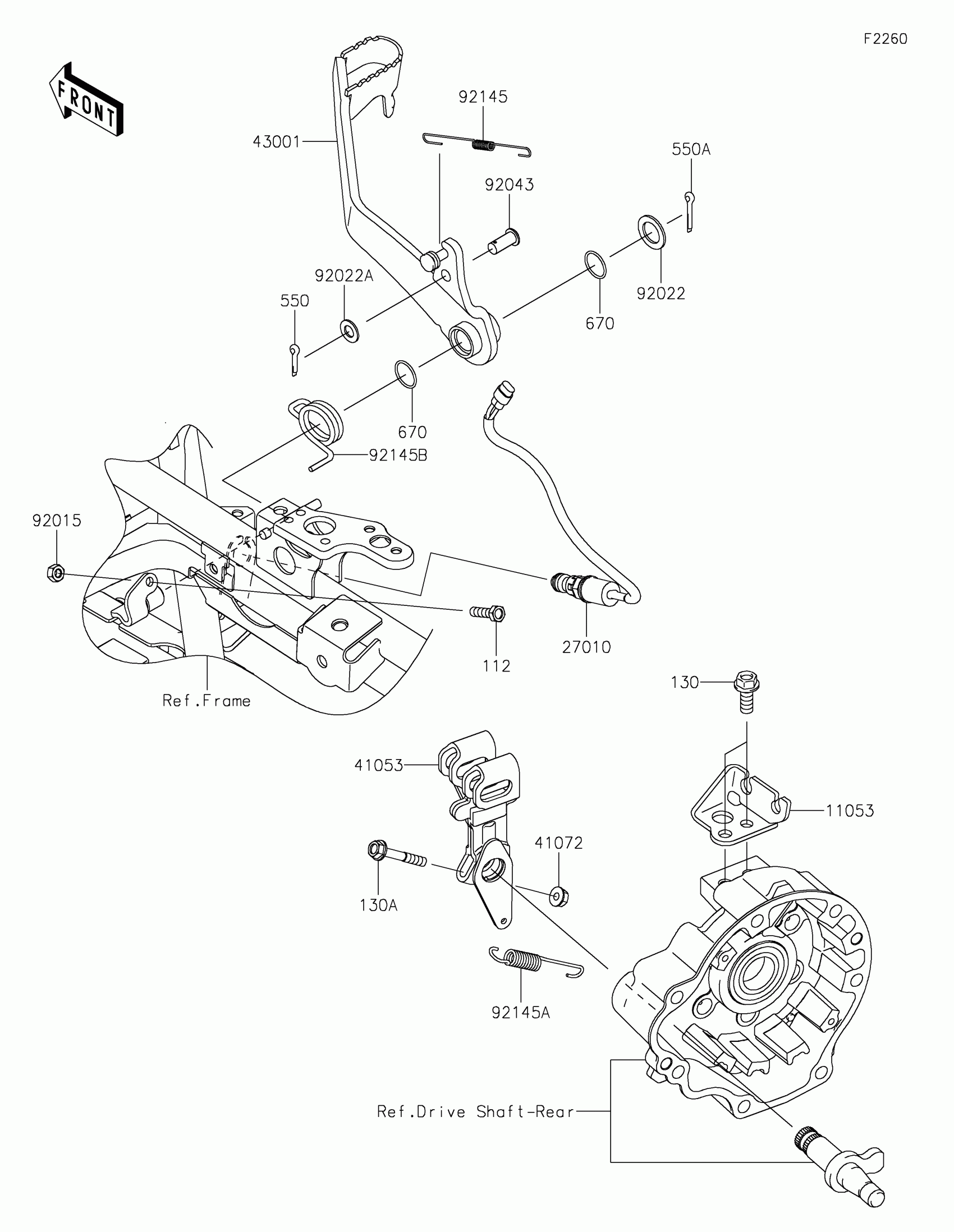

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Brake Pedal Diagram

Description

Price

11053

BRACKET,BRAKE CABLE

11053-0642

$5.51

27010

SWITCH,BRAKE

27010-1494

$51.47

41053

LEVER-BRAKE CAM

41053-0017

$54.21

41072

NUT,6MM

41072-007

$2.99

43001

LEVER-BRAKE,PEDAL

43001-0092

$65.08

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,15.5X24X1.6

92022-1049

$5.71

92022A

WASHER,8.5X16X1.2

92022-1582

$0.81

92043

PIN,8X16

92043-1013

$7.54

92145

SPRING,REAR BRAKE SWITCH

92145-0144

$3.49

92145A

SPRING,BRAKE LEVER RETURN

92145-1313

$3.78

92145B

SPRING,BRAKE PEDAL RETURN

92145-1421

$4.78

112

BOLT-UPSET,6X22

112AA0622

$4.10

130

BOLT-FLANGED,8X20

130BA0820

$3.04

130A

BOLT-FLANGED,6X40

130CA0640

$2.29

550

PIN-COTTER,2.0X15

550AA2015

$0.90

550A

PIN-COTTER,2.0X22

550AA2022

$1.80

670

O RING,15MM

670B2015

$1.08
