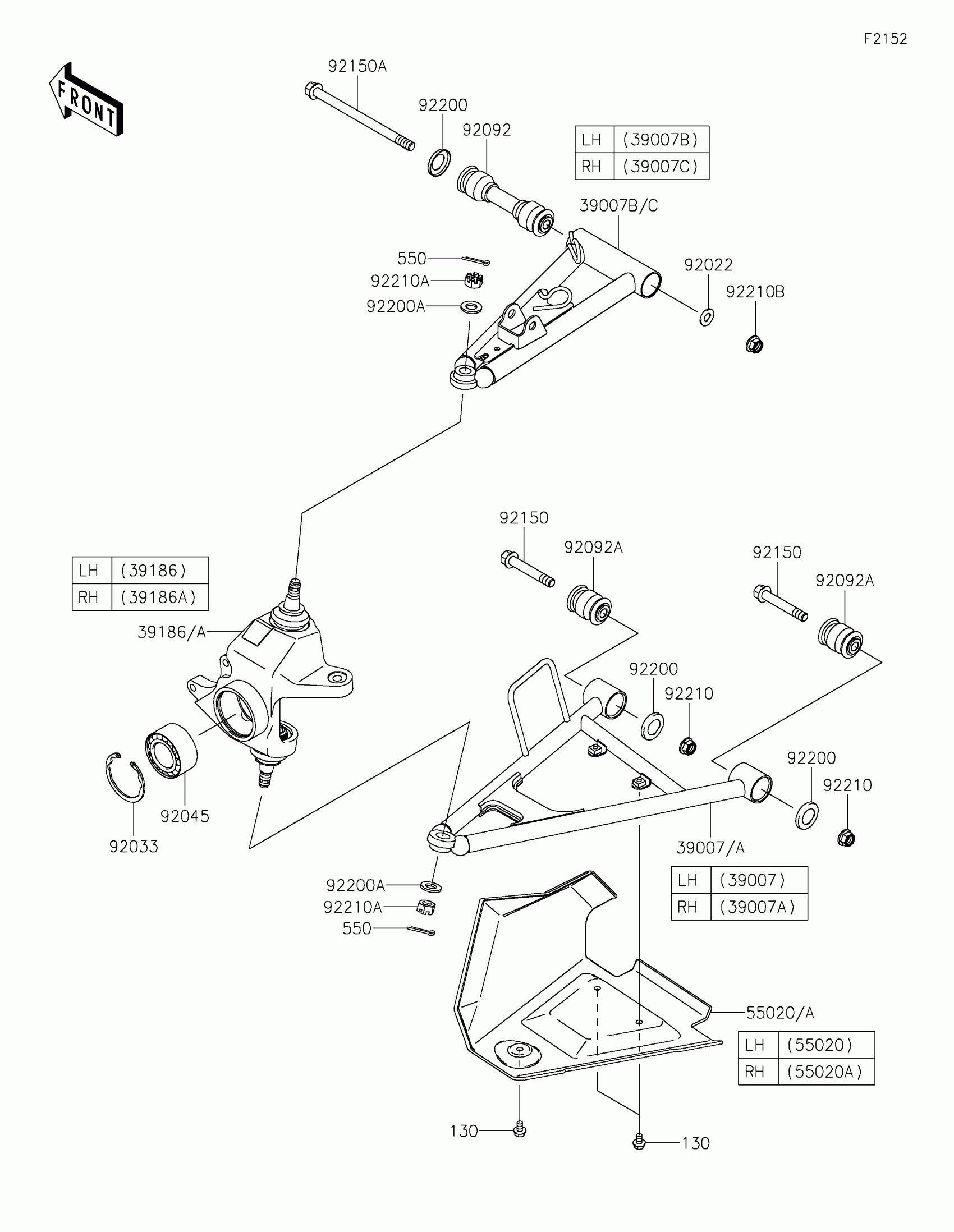

Kawasaki BRUTE FORCE® 750 Front Suspension Diagram

Description

Price

39007

ARM-SUSP,FR,LWR,LH,BLACK

39007-0176-10

$111.32

39007A

ARM-SUSP,FR,LWR,RH,BLACK

39007-0177-10

$111.32

39007B

ARM-SUSP,FR,UPP,LH,BLACK

39007-0341-10

$134.67

39007C

ARM-SUSP,FR,UPP,RH,BLACK

39007-0342-10

$134.67

39186

KNUCKLE ASSY,FR,LH

39186-0033

$296.64

39186A

KNUCKLE ASSY,FR,RH

39186-0034

$296.64

55020

GUARD,FRONT ARM,LH,F.BLACK

55020-0109-6Z

$33.78

55020A

GUARD,FRONT ARM,RH,F.BLACK

55020-0110-6Z

$33.78

92022

WASHER,10.2X20X1.5

92022-3742

$4.18

92033

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,30BWD08ACA13

92045-0095

Unavailable

92092

BUSHING-RUBBER

92092-0025

$29.34

92092A

BUSHING-RUBBER

92092-0026

$15.36

92150

BOLT,FLANGED,10X63

92150-1384

$13.75

92150A

BOLT,FLANGED,10X150

92150-1686

$16.01

92200

WASHER,19X31.8X4

92200-0582

$3.74

92200A

WASHER,12.3X23X2.3

92200-1004

$4.69

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,CASTLE,12MM

92210-0395

$3.86

92210B

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

130

BOLT-FLANGED,6X10

130BA0610

$1.20

550

PIN-COTTER,3.0X25

550AA3025

$0.62
