2026 Kawasaki Brute Force® 750 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2026 Kawasaki Brute Force® 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

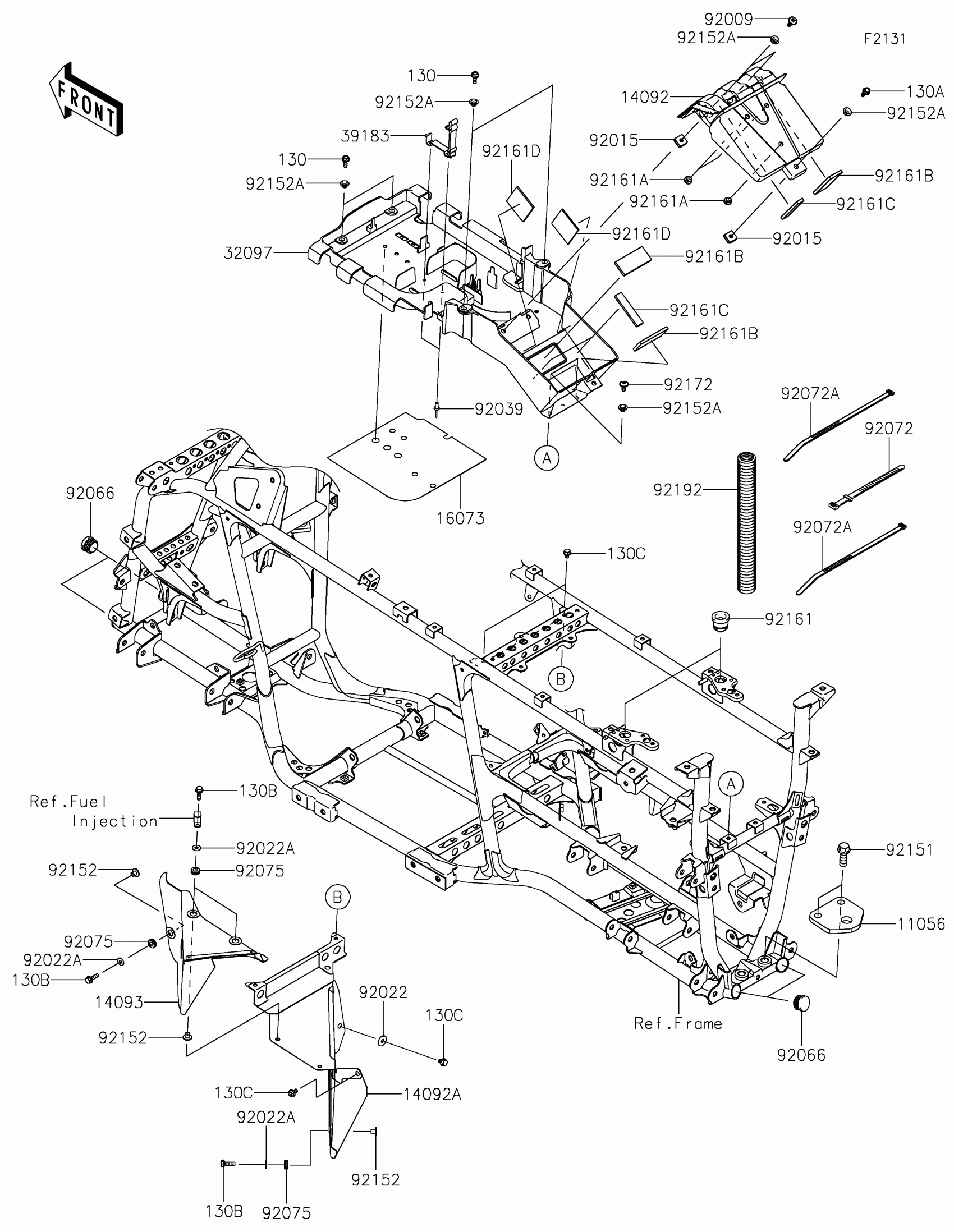

2026 Kawasaki Brute Force® 750 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$7.98

In stock

14092

COVER,BATTERY

14092-0189

1
Out of stock

14092A

COVER,HEAT GUARD,FR

14092-0897

1
Out of stock

14093

COVER,HEAT GUARD

14093-0021

1
Out of stock

16073

INSULATOR,BATTERY CASE

16073-0809

1
Out of stock

32097

CASE-BATTERY

32097-0577

1
Out of stock

39183

BAND-ASSY,TOOL BAG

39183-1065

1

$9.17

In stock

92009

SCREW,6X20

92009-1289

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1804

1
Out of stock

92022A

WASHER,6.2X15X1.2

92022-2373

1
Out of stock

92039

RIVET,4.8MM

92039-3719

1
Out of stock

92066

PLUG

92066-0036

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92072A

BAND,L=292.1

92072-3509

1
Out of stock

92075

DAMPER

92075-2097

1
Out of stock

92151

BOLT,FLANGED,12X35

92151-1903

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1
Out of stock

92152A

COLLAR,6.3X8.3X7.2

92152-1865

1
Out of stock

92161

DAMPER

92161-0048

1
Out of stock

92161A

DAMPER

92161-1084

1
Out of stock

92161B

DAMPER,30X70X5

92161-1127

1
Out of stock

92161C

DAMPER,15X70X5

92161-1380

1
Out of stock

92161D

DAMPER,50X50X3

92161-1386

1
Out of stock

92172

SCREW,6X14

92172-0401

1
Out of stock

92192

TUBE,CORRUGATED,25.5X32.25X300

92192-1042

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

130B

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

130C

BOLT-FLANGED,6X10

130BD0610

1

$3.24

In stock
