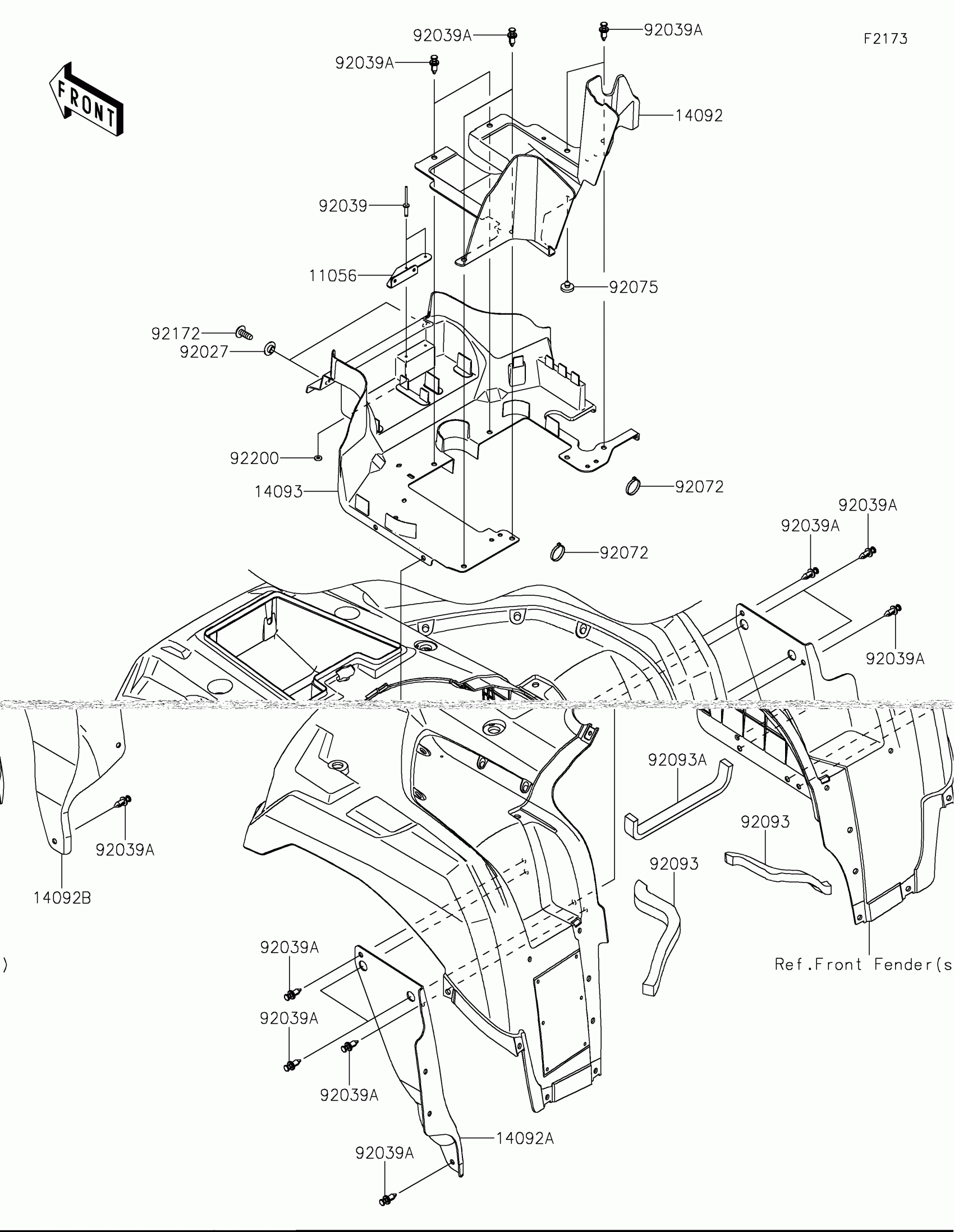

Kawasaki BRUTE FORCE® 750 Flap Diagram

Description

Price

11056

BRACKET,V.D. SENSOR

11056-0956

$4.86

14092

COVER,TOP INNER,RR

14092-0182

$14.59

14092A

COVER,SIDE INNER,LH

14092-0183

$10.00

14092B

COVER,SIDE INNER,RH

14092-0184

$10.00

14093

COVER,TOP INNER,FR

14093-0022

$28.86

92027

COLLAR

92027-4020

$3.54

92039

RIVET

92039-0031

$0.95

92039A

RIVET

92039-0776

$0.80

92072

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER,BOOST SENSOR

92075-2113

$0.92

92093

SEAL,20X270X30

92093-0570

$10.63

92093A

SEAL,20X300X20

92093-0571

$8.85

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92200

WASHER,3.5X8X1

92200-1251

$0.84
