2026 Kawasaki Brute Force® 750 EPS Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

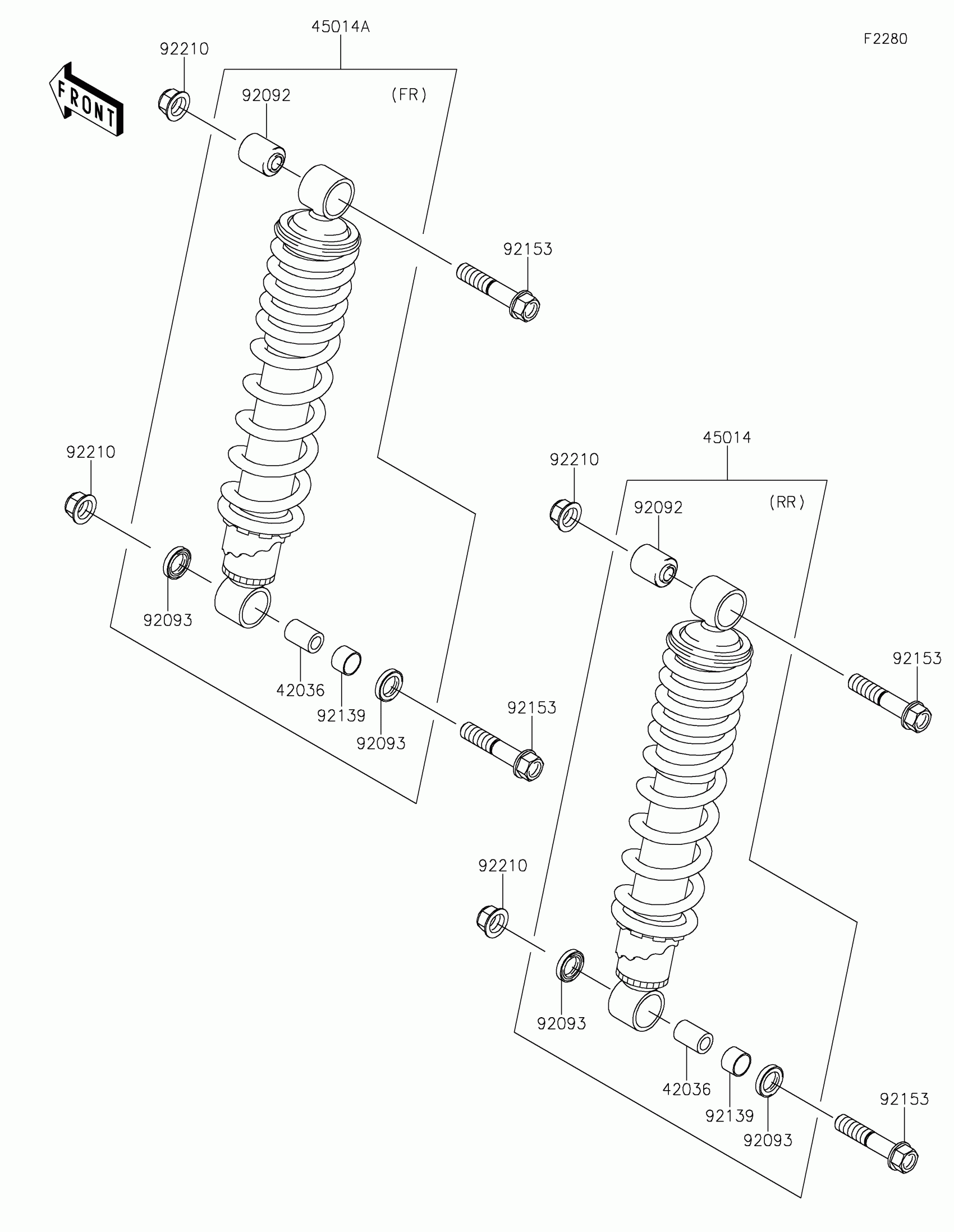

2026 Kawasaki Brute Force® 750 EPS Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

42036

SLEEVE

42036-0018

1
Out of stock

45014

SHOCKABSORBER,RR,BLACK

45014-0447-10

1
Out of stock

45014A

SHOCKABSORBER,FR,BLACK

45014-0851-10

1
Out of stock

92092

BUSHING-RUBBER

92092-0007

1
Out of stock

92093

SEAL

92093-0033

1
Out of stock

92139

BUSHING

92139-0084

1
Out of stock

92153

BOLT,FLANGED,10X50

92153-1139

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
