2026 Kawasaki Brute Force® 750 Eps Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2026 Kawasaki Brute Force® 750 Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

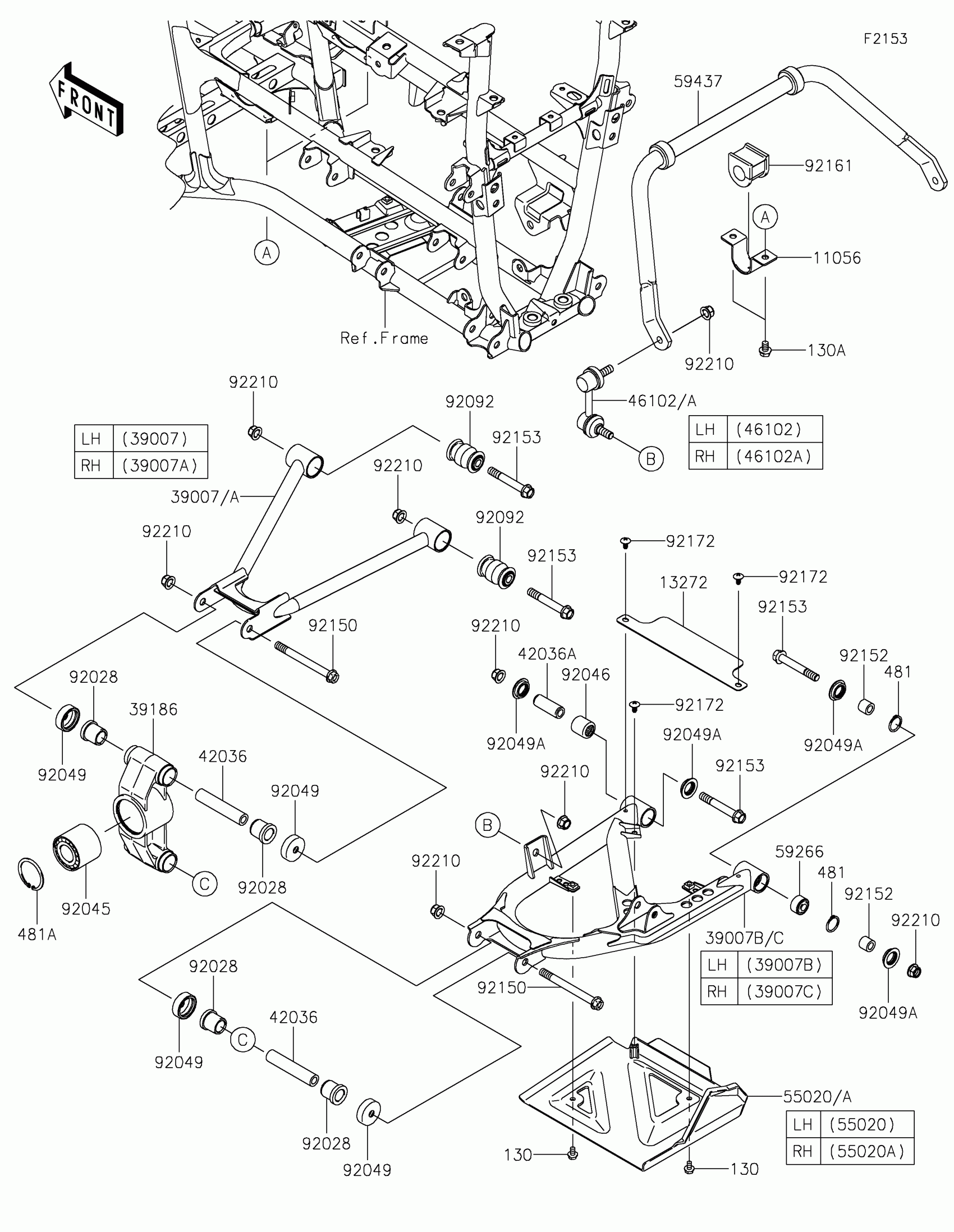

2026 Kawasaki Brute Force® 750 Eps Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,STABILIZER

11056-1062

1

$2.92

In stock

13272

PLATE,RR ARM

13272-0919

1

$2.03

In stock

39007

ARM-SUSP,RR,UPP,LH,BLACK

39007-0170-10

1

$85.04

In stock

39007A

ARM-SUSP,RR,UPP,RH,BLACK

39007-0171-10

1

$85.04

In stock

39007B

ARM-SUSP,RR,LWR,LH,BLACK

39007-0172-10

1

$113.55

In stock

39007C

ARM-SUSP,RR,LWR,RH,BLACK

39007-0173-10

1

$113.55

In stock

39186

KNUCKLE,RR

39186-0099

1

$202.97

In stock

42036

SLEEVE,10X17X85.6

42036-1190

1

$26.83

In stock

42036A

SLEEVE

42036-1376

1

$11.64

In stock

46102

ROD,STABILIZER,LH

46102-0100

1

$44.03

In stock

46102A

ROD,STABILIZER,RH

46102-0101

1

$44.03

In stock

55020

1

$34.38

In stock

55020A

1

$34.38

In stock

59266

JOINT-BALL

59266-0013

1

$60.17

In stock

59437

STABILIZER,RR

59437-0307

1

$106.93

In stock

92028

BUSHING

92028-1466

1

$8.16

In stock

92045

BEARING-BALL,25BWD02ACA68

92045-0094

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92049

SEAL-OIL,KNUCKLE

92049-1198

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92092

BUSHING-RUBBER

92092-0004

1

$6.58

In stock

92150

BOLT,FLANGED,10X105

92150-1624

1

$7.86

In stock

92152

COLLAR,10X17X14.5

92152-1455

1

$7.20

In stock

92153

BOLT,FLANGED,10X70

92153-1606

1

$4.14

In stock

92161

DAMPER

92161-0265

1

$4.46

In stock

92172

SCREW,6X12

92172-0884

1

$3.49

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,8X12

130BA0812

1

$0.92

In stock

481

1

$2.58

In stock

481A

1

$3.92

In stock
