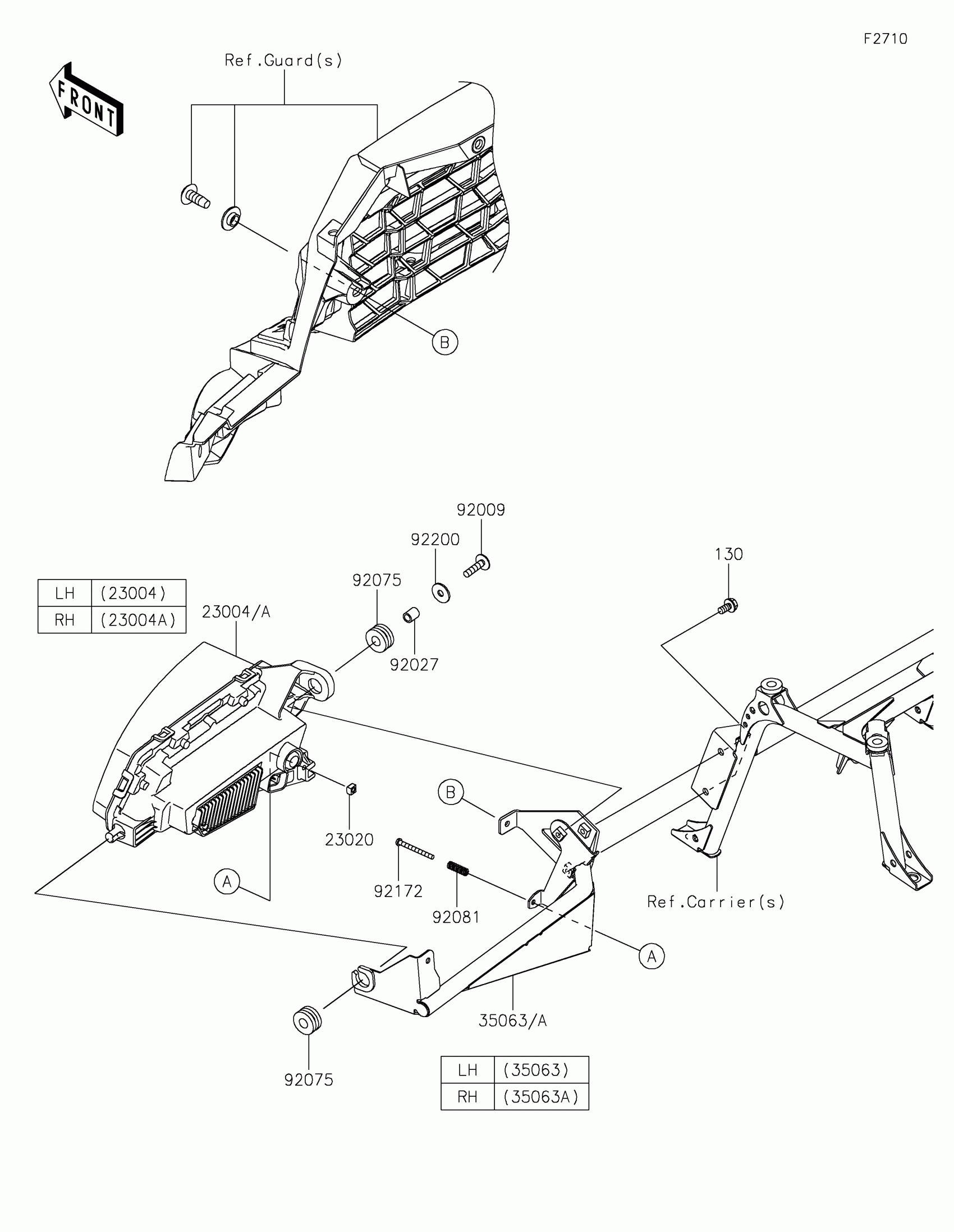

Kawasaki BRUTE FORCE® 750 EPS Headlight(s) Diagram

Description

Price

23004

LAMP-HEAD,LED,LH

23004-0444

$266.38

23004A

LAMP-HEAD,LED,RH

23004-0445

$266.38

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

35063

STAY,HEAD LAMP,LH

35063-1597

$46.02

35063A

STAY,HEAD LAMP,RH

35063-1598

$46.02

92009

SCREW,6X25

92009-1465

$3.92

92027

COLLAR,6.8X10X12

92027-162

$6.57

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92172

SCREW,4X40

92172-1092

$0.85

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

130

BOLT-FLANGED,6X12

130BA0612

$1.72
