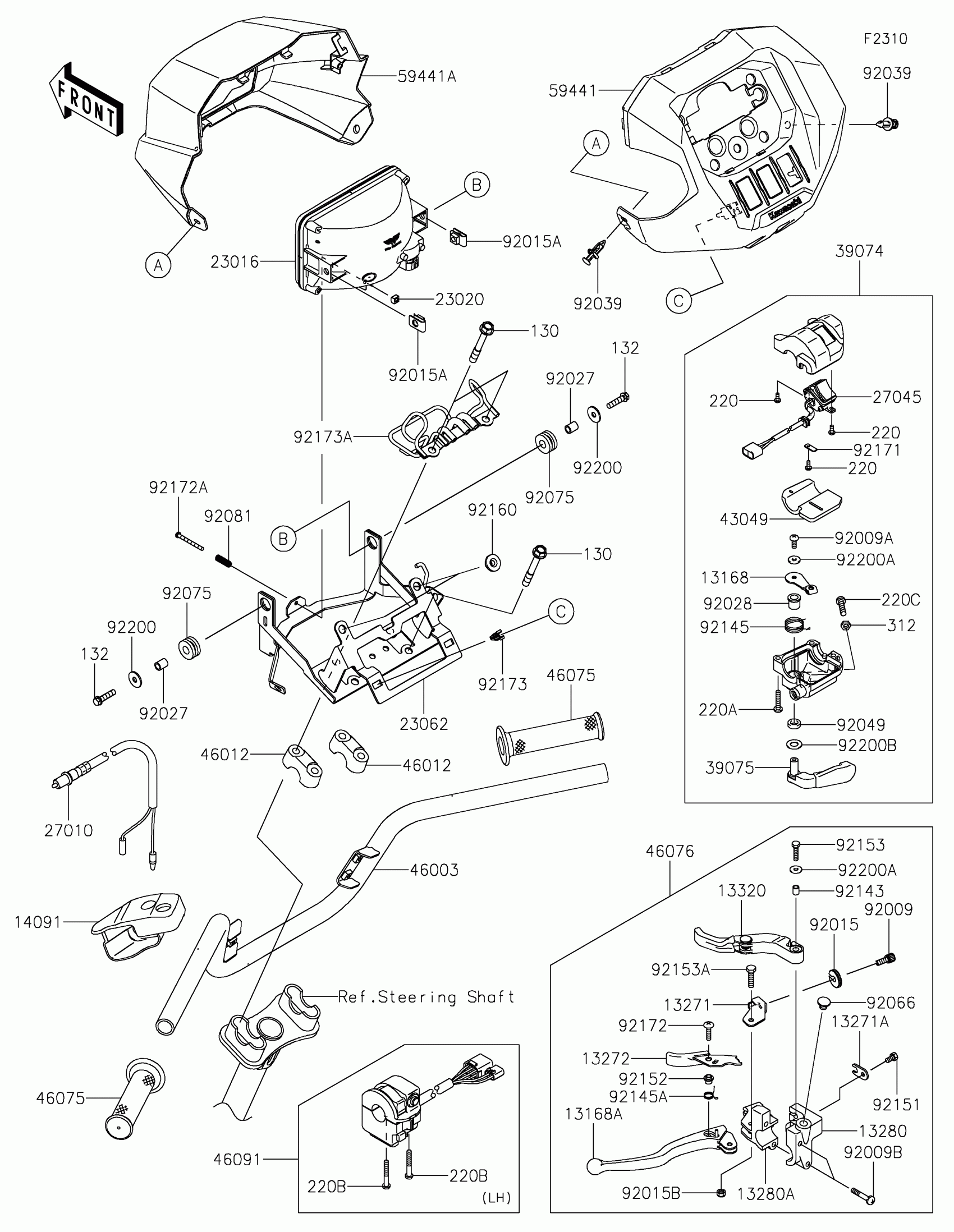

Kawasaki BRUTE FORCE® 750 EPS Handlebar Diagram
#
13168
LEVER
13168-1715
$8.58
13168A
LEVER,LH
13168-1736
$26.86
13271
PLATE,LOCK
13271-1259
$17.76
13271A
PLATE,WIRE OUTER STOPPER
13271-1636
$4.18
13272
PLATE,LEVER LOCK
13272-3826
$14.02
13280
HOLDER,DIFF LOCK LEVER
13280-1226
$28.44
13280A
HOLDER,LEVER,LH
13280-1227
$28.44
13320
LEVER-ASSY,DIFF LOCK
13320-0040
$63.90
14091
COVER,DIFF LOCK LEVER
14091-1403
$18.20
23016
LAMP-ASSY,WORK
23016-0672
$103.83
23020
NUT,4MM,FOCUS ADJUST
23020-018
$4.65
23062
BRACKET-COMP,HANDLE
23062-1479
$25.24
27010
SWITCH,BRAKE
27010-1294
$35.18
27045
SWITCH-ASSY
27045-0010
$34.82
39074
LEVER-ASSY-THROTTLE
39074-0011
$183.68
39075
LEVER-THROTTLE
39075-0032
$28.70
43049
PACKING
43049-1088
$11.06
46003
HANDLE
46003-0838
$75.62
46012
HOLDER-HANDLE
46012-1168
$16.33
46075
GRIP
46075-0065
$30.65
46076
LEVER-ASSY-GRIP,DIFF LOCK
46076-0180
$103.23
46091
HOUSING-ASSY-CONTROL
46091-0243
$190.03
59441
COVER,METER
59441-0308
$18.91
59441A
COVER,WORK LAMP,G.BLUE
59441-0309-72W
$22.88
92009
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92009A
SCREW
92009-1959
$2.41
92009B
SCREW,6X30
92009-1961
$2.80
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92015A
NUT,6MM
92015-1602
$7.34
92015B
NUT
92015-1829
$4.26
92027
COLLAR,6.8X10X12
92027-162
$6.57
92028
BUSHING
92028-1986
$4.14
92039
RIVET
92039-0776
$1.19
92049
SEAL-OIL
92049-1578
$4.67
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92075
DAMPER,10X24X12
92075-1690
$5.00
92081
SPRING,FOCUS ADJUST
92081-1896
$5.25
92143
COLLAR
92143-1216
$6.34
92145
SPRING
92145-1392
$3.70
92145A
SPRING
92145-1429
$7.58
92151
BOLT,5X10
92151-1975
$2.41
92152
COLLAR
92152-1176
$4.31
92153
BOLT,5X20
92153-1129
$3.26
92153A
BOLT
92153-1919
$17.27
92160
DAMPER
92160-1613
$3.74
92171
CLAMP
92171-1344
$2.41
92172
SCREW,5X20
92172-0078
$2.80
92172A
SCREW,4X40
92172-1092
$0.85
92173
CLAMP
92173-1423
$1.48
92173A
CLAMP
92173-2656
$84.27
92200
WASHER,6.5X20X1.6
92200-0283
$1.40
92200A
WASHER
92200-1558
$5.00
92200B
WASHER
92200-1559
$5.00
130
BOLT-FLANGED,8X60
130CA0860
$1.77
132
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
220
SCREW-PAN-CROS,3X8
220AA0308
$0.59
220A
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220B
SCREW-PAN-CROS,5X35
220AB0535
$2.06
220C
SCREW-PAN-CROS,6X25
220AB0625
$3.67
312
NUT-HEX,6MM,BLACK
312AB0600
$3.92
