2026 Kawasaki Brute Force® 750 EPS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

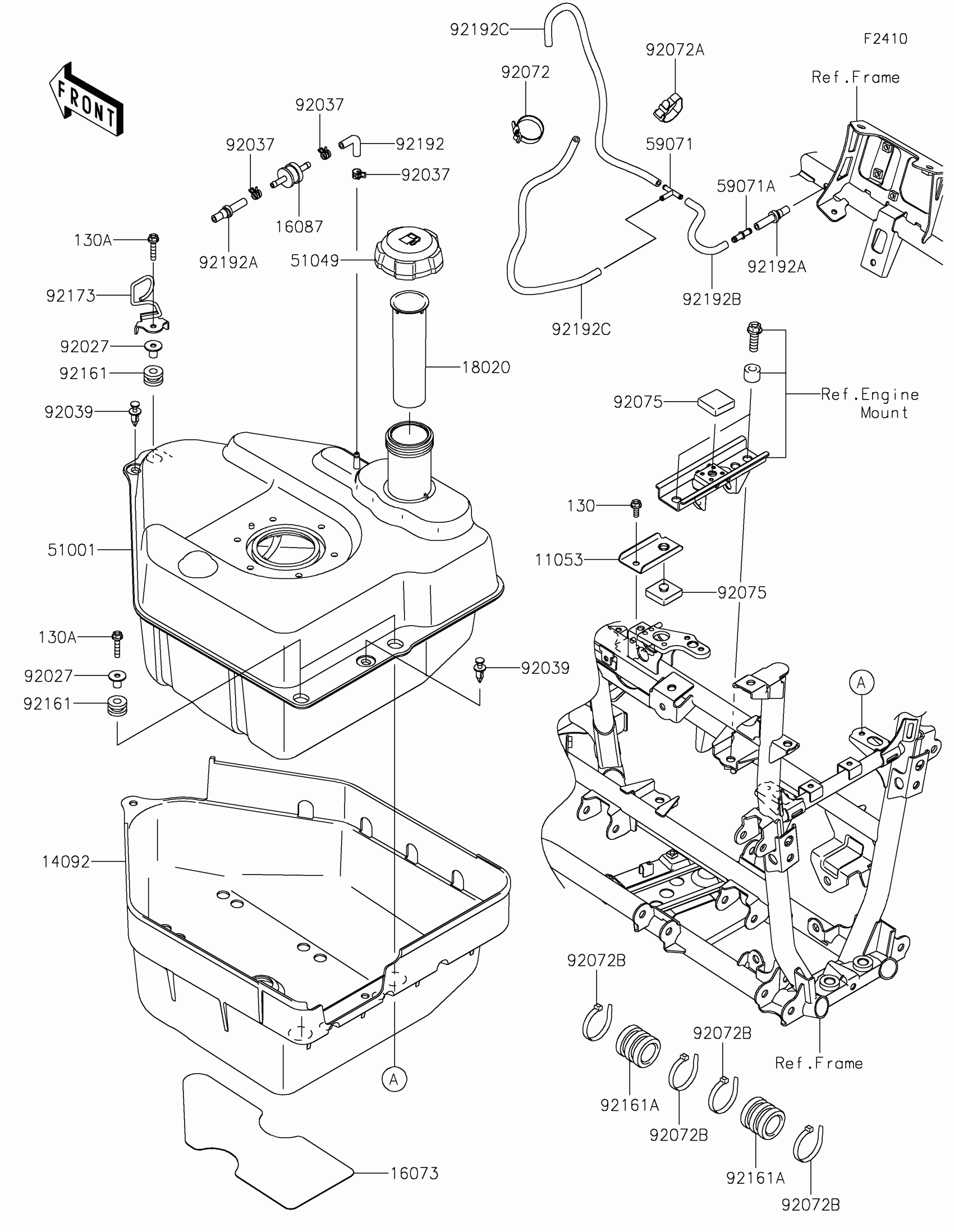

2026 Kawasaki Brute Force® 750 EPS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

1

$3.17

In stock

14092

COVER,FUEL TANK,LWR

14092-0186

1
Out of stock

16073

INSULATOR,FUEL TANK COVER,LWR

16073-0925

1
Out of stock

16087

VALVE-CHECK

16087-0008

1
Out of stock

18020

BAFFLE,FUEL TANK

18020-0008

1
Out of stock

51001

TANK-COMP-FUEL

51001-0237

1
Out of stock

51049

CAP-TANK,FUEL

51049-0718

1
Out of stock

59071

JOINT

59071-3705

1
Out of stock

59071A

JOINT

59071-3717

1
Out of stock

92027

COLLAR,L=16.1

92027-1847

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92072B

BAND,L=188

92072-1239

1
Out of stock

92075

DAMPER

92075-1882

1
Out of stock

92161

DAMPER

92161-0106

1
Out of stock

92161A

DAMPER,FUEL TANK,RR

92161-1111

1
Out of stock

92173

CLAMP,FUEL TUBE

92173-0872

1
Out of stock

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

1
Out of stock

92192A

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

1
Out of stock

92192B

TUBE,5X10X80/22

92192-0992

1
Out of stock

92192C

TUBE,5X10X470

92192-0993

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X30

130BA0630

1

$1.31

In stock
