2026 Kawasaki Brute Force® 750 EPS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

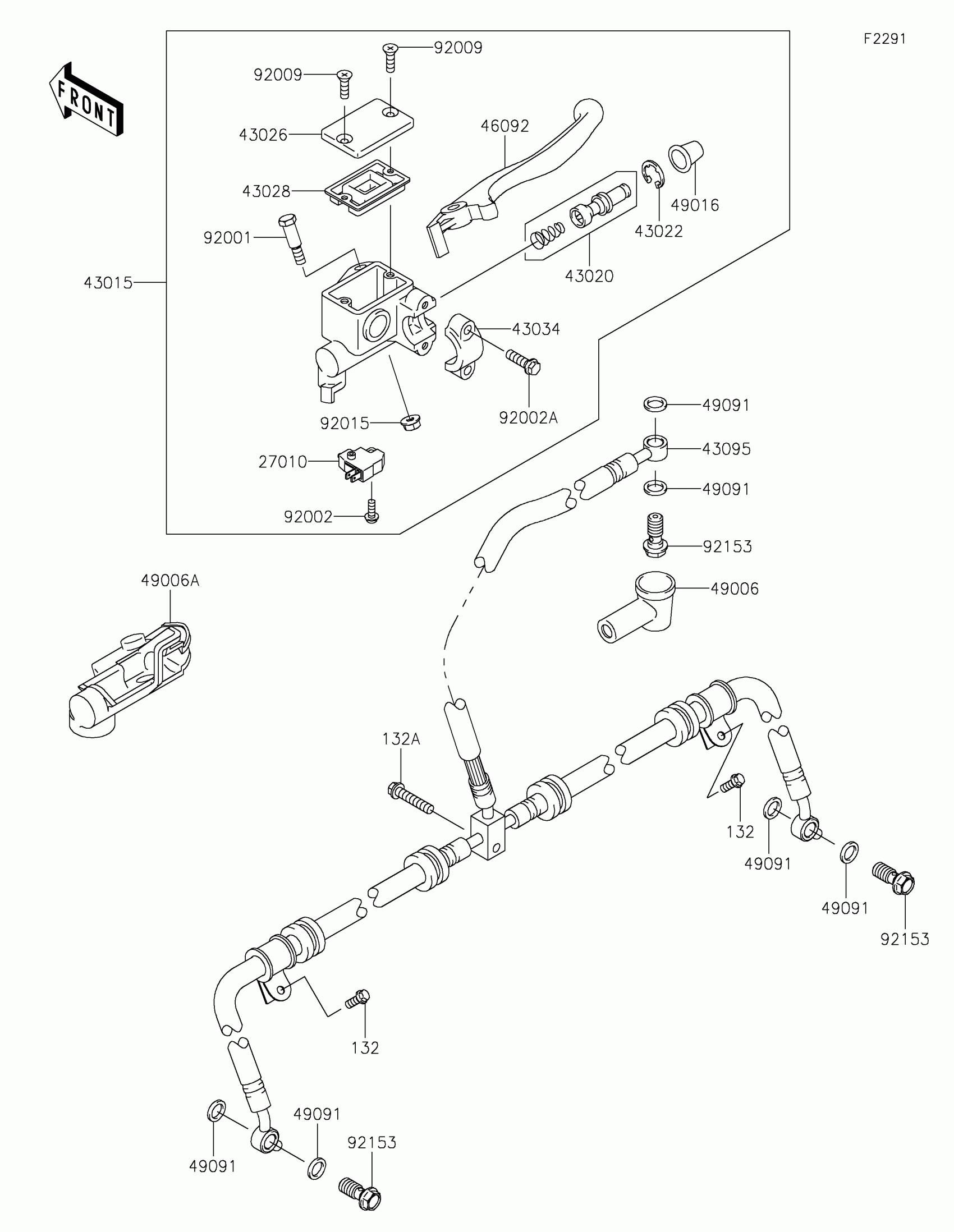

2026 Kawasaki Brute Force® 750 EPS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0711

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1054

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE

43095-1940

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1208

1
Out of stock

49006

BOOT,DUST

49006-1040

1
Out of stock

49006A

BOOT

49006-1338

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92153

BOLT,OIL,L=23

92153-1419

1
Out of stock

132

1

$1.93

In stock

132A

1

$2.17

In stock
