2026 Kawasaki Brute Force® 750 EPS Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

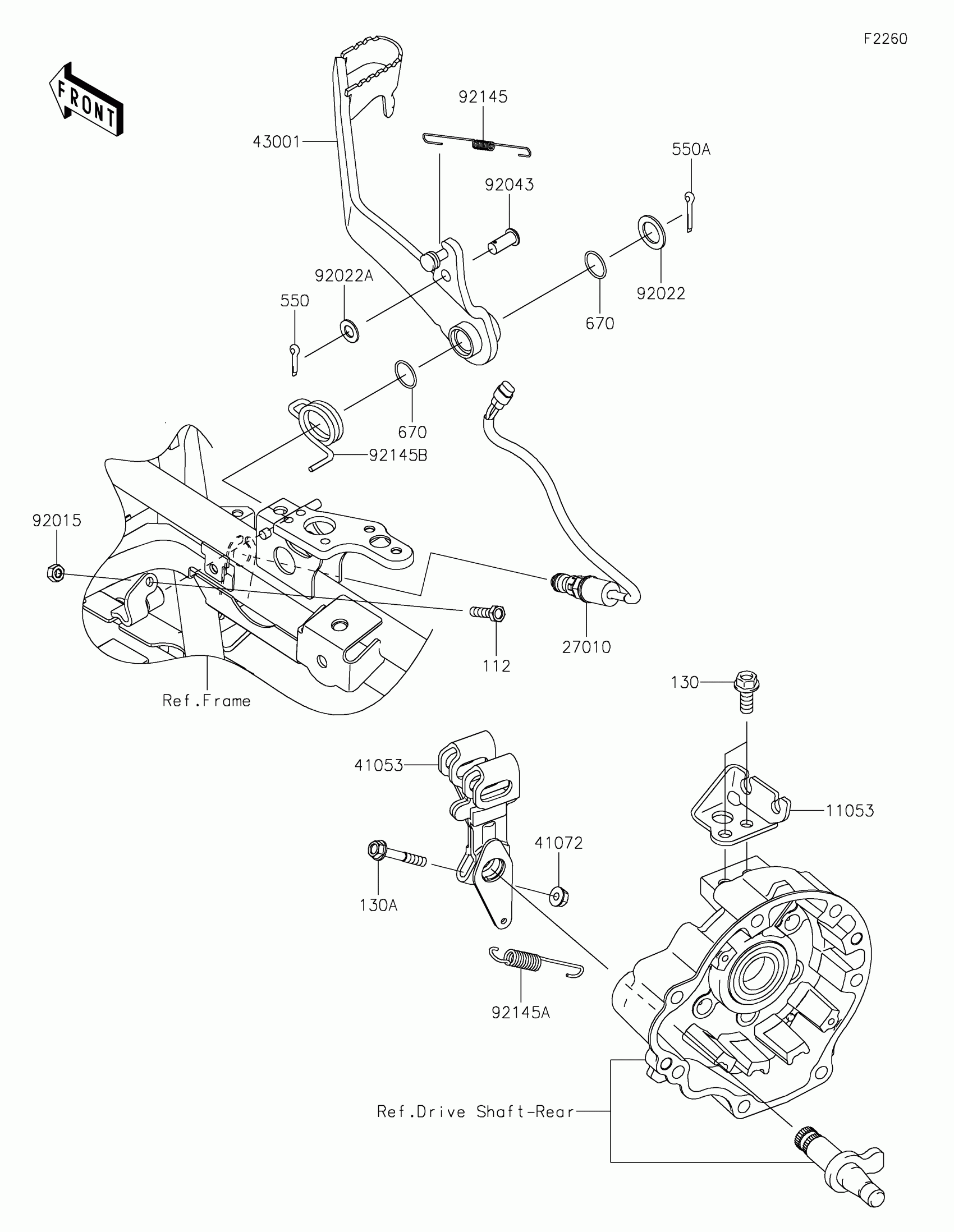

2026 Kawasaki Brute Force® 750 EPS Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,BRAKE CABLE

11053-0642

1

$5.51

In stock

27010

SWITCH,BRAKE

27010-1494

1
Out of stock

41053

LEVER-BRAKE CAM

41053-0017

1

$54.21

In stock

41072

NUT,6MM

41072-007

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-0092

1
Out of stock

92015

NUT,6MM

92015-1410

1
Out of stock

92022

WASHER,15.5X24X1.6

92022-1049

1
Out of stock

92022A

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92145

SPRING,REAR BRAKE SWITCH

92145-0144

1
Out of stock

92145A

SPRING,BRAKE LEVER RETURN

92145-1313

1
Out of stock

92145B

SPRING,BRAKE PEDAL RETURN

92145-1421

1
Out of stock

112

BOLT-UPSET,6X22

112AA0622

1
Out of stock

130

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

130A

BOLT-FLANGED,6X40

130CA0640

1

$2.29

In stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

550A

PIN-COTTER,2.0X22

550AA2022

1
Out of stock

670

O RING,15MM

670B2015

1
Out of stock
