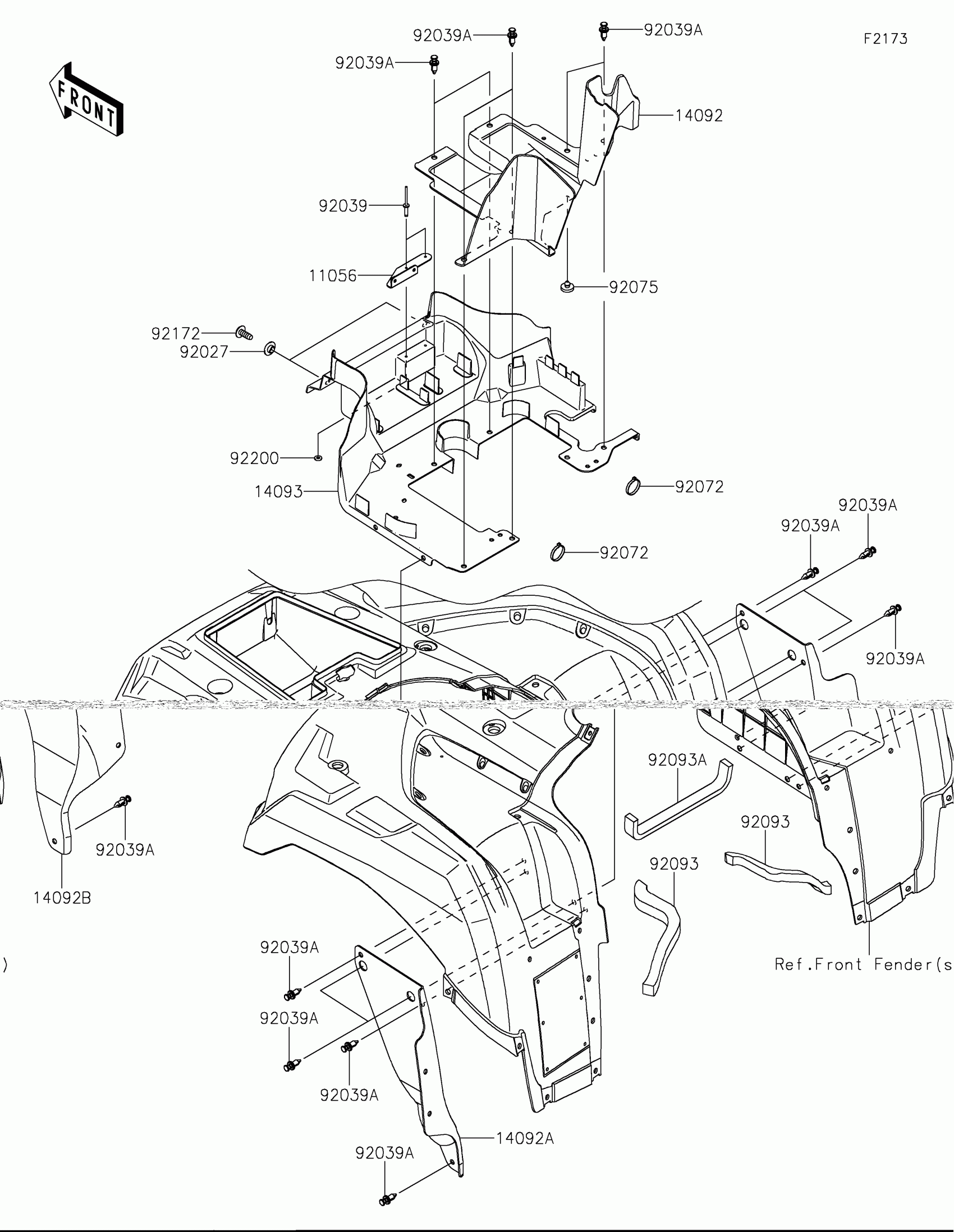

Kawasaki BRUTE FORCE® 750 EPS Flap Diagram

Description

Price

11056

BRACKET,V.D. SENSOR

11056-0956

$5.56

14092

COVER,TOP INNER,RR

14092-0182

$15.47

14092A

COVER,SIDE INNER,LH

14092-0183

$10.39

14092B

COVER,SIDE INNER,RH

14092-0184

$10.39

14093

COVER,TOP INNER,FR

14093-0022

$28.34

92027

COLLAR

92027-4020

$4.65

92039

RIVET

92039-0031

$1.19

92039A

RIVET

92039-0776

$1.19

92072

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER,BOOST SENSOR

92075-2113

$1.15

92093

SEAL,20X270X30

92093-0570

$11.06

92093A

SEAL,20X300X20

92093-0571

$9.09

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92200

WASHER,3.5X8X1

92200-1251

$1.00
