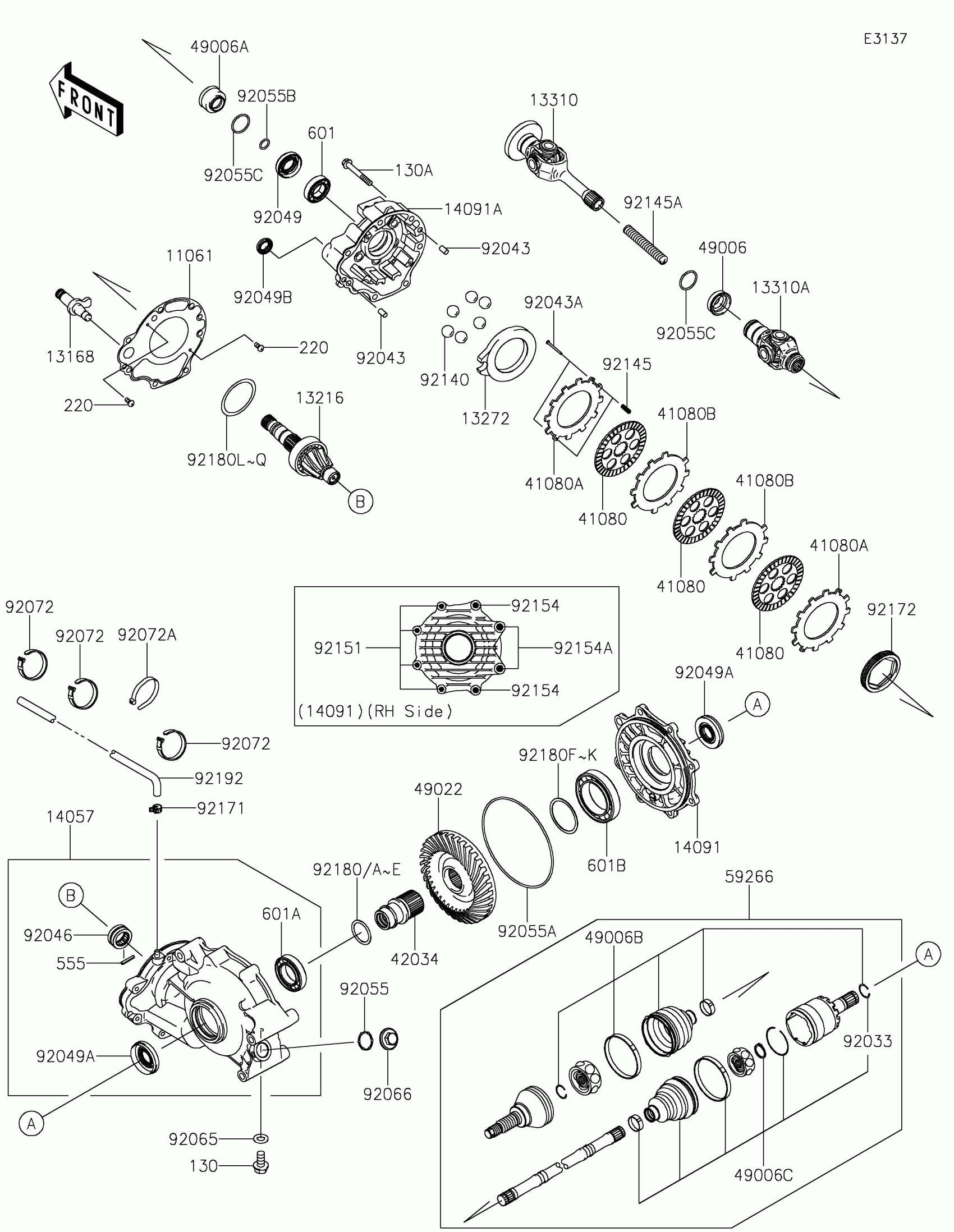

Kawasaki BRUTE FORCE® 750 EPS Drive Shaft-Rear Diagram

#

Description
Price

11061

GASKET,SOFT METAL

11061-0059

$29.88

13168

LEVER,BRAKE

13168-0042

$39.27

13216

GEAR-COMP

13216-0871

$232.64

13272

PLATE

13272-1083

$28.50

13310

SHAFT-ASSY,ENGINE SIDE

13310-0028

$232.34

13310A

SHAFT-ASSY,GEAR-ASSY SIDE

13310-0558

$232.34

14057

CASE-COMP-GEAR

14057-0010

$258.17

14091

COVER,RH

14091-0142

$70.53

14091A

COVER,FR

14091-0143

$113.97

41080

DISC,FRICTION

41080-1482

$44.05

41080A

DISC,PRESSURE

41080-1483

$14.18

41080B

DISC,SEPARATER

41080-1484

$14.18

42034

COUPLING

42034-0006

$80.49

49006

BOOT

49006-0007

$3.13

49006A

BOOT

49006-0008

$3.13

49006B

BOOT,UJ

49006-0064

$96.45

49006C

BOOT,DOJ

49006-0065

$96.45

49022

GEAR-BEVEL,35T

49022-0609

$442.02

59266

JOINT-BALL

59266-0023

$668.65

92033

RING-SNAP

92033-0835

$2.44

92043

PIN,8X14

92043-1567

$1.62

92043A

PIN,3X35

92043-1617

$1.73

92046

BEARING-NEEDLE,AH502504A

92046-1280

$64.90

92049

SEAL-OIL,HTGY 24X45X9.5

92049-0028

$9.08

92049A

SEAL-OIL,SDD7 25X57X7 HS

92049-0029

$9.08

92049B

SEAL-OIL,TC17X28X6

92049-1537

$8.98

92055

RING-O

92055-0122

$2.98

92055A

RING-O,158.5X3.70

92055-1631

$9.82

92055B

RING-O,18X24X3

92055-1633

$4.65

92055C

RING-O,30X35X2.5

92055-1693

$4.65

92065

GASKET,8.5X16X1

92065-023

$2.63

92066

PLUG

92066-1303

$9.85

92072

BAND,L=186

92072-056

$3.81

92072A

BAND,L=140

92072-1293

$5.26

92140

BALL,D/O#12

92140-1064

$1.71

92145

SPRING,RR BRAKE

92145-1301

$1.36

92145A

SPRING,PROPELLER SHAFT

92145-1304

$2.25

92151

BOLT,8X30

92151-1908

$2.29

92154

BOLT,10X35

92154-1823

$2.63

92154A

BOLT,12X35

92154-1824

$3.75

92171

CLAMP

92171-0515

$5.56

92172

SCREW,SET,76X12

92172-0771

$69.77

92180

SHIM,35.2X44.0X1.2

92180-0161

Unavailable

92180A

SHIM,35.2X44.0X1.0

92180-0162

Unavailable

92180B

SHIM,35.2X44.0X0.8

92180-0163

Unavailable

92180C

SHIM,35.2X44.0X0.5

92180-0164

Unavailable

92180D

SHIM,35.2X44.0X0.2

92180-0165

Unavailable

92180E

SHIM,35.2X44.0X0.15

92180-0166

Unavailable

92180F

SHIM,55X64X0.15

92180-1417

Unavailable

92180G

SHIM,55X64X0.20

92180-1418

Unavailable

92180H

SHIM,55X64X0.50

92180-1419

Unavailable

92180I

SHIM,55X64X0.80

92180-1420

Unavailable

92180J

SHIM,55X64X1.00

92180-1421

Unavailable

92180K

SHIM,55X64X1.20

92180-1422

Unavailable

92180L

SHIM,60X72X0.15

92180-1423

Unavailable

92180M

SHIM,60X72X0.20

92180-1424

Unavailable

92180N

SHIM,60X72X0.50

92180-1425

Unavailable

92180O

SHIM,60X72X0.80

92180-1426

Unavailable

92180P

SHIM,60X72X1.00

92180-1427

Unavailable

92180Q

SHIM,60X72X1.20

92180-1428

Unavailable

92192

TUBE,BREATHER,L=1680MM

92192-0210

$17.25

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,8X60

130CA0860

$1.28

220

SCREW-PAN-CROS,4X8

220AA0408

$0.63

555

PIN-SPRING

555A0428

$1.85

601

BEARING-BALL

601A6005

$10.48

601A

BEARING-BALL,#6007

601A6007

$32.82

601B

BEARING-BALL

601A6011

$38.77
