2026 Kawasaki Brute Force® 750 EPS Drive Shaft-Front Diagram

← All diagrams

Find the part on the Drive Shaft-Front diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

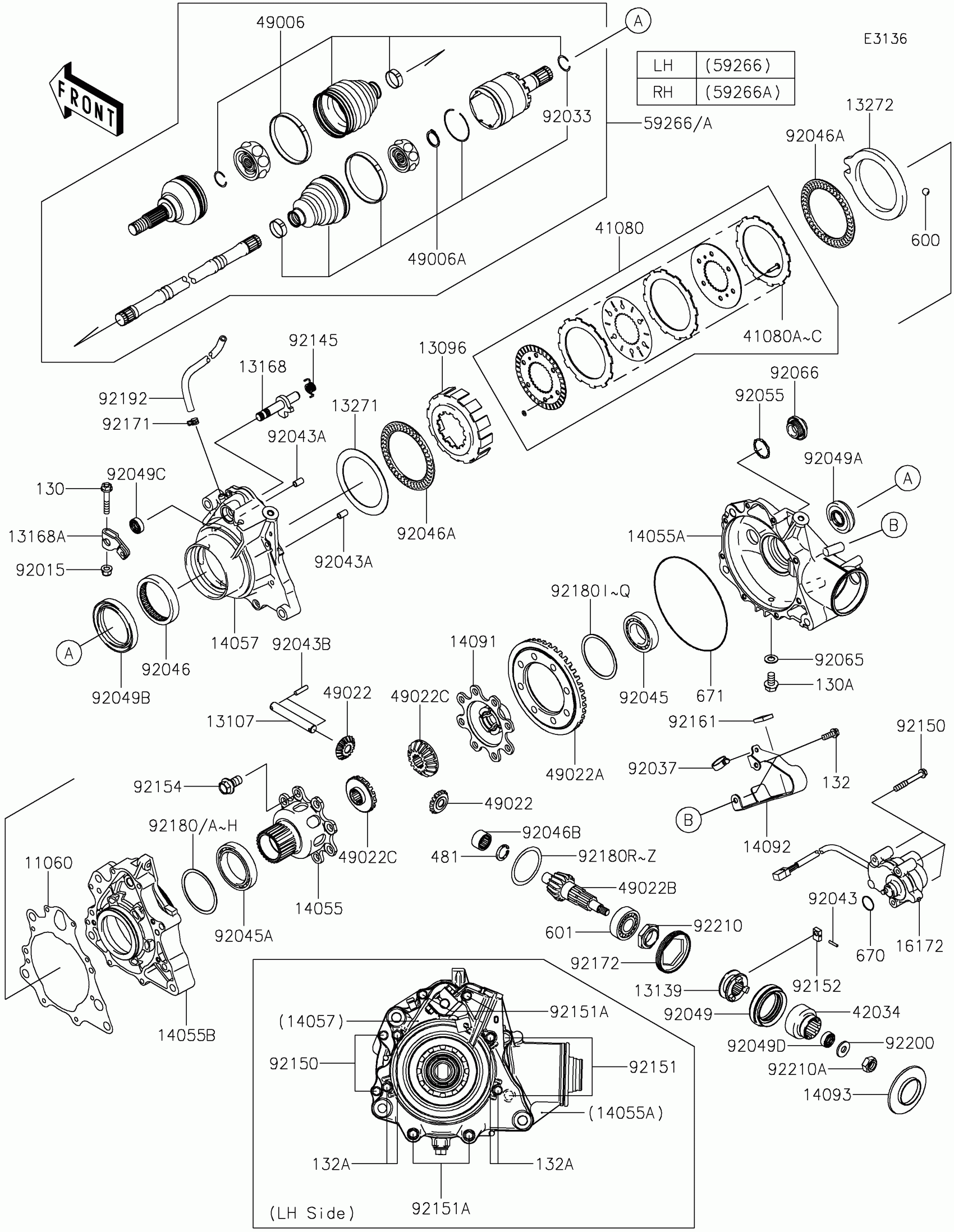

2026 Kawasaki Brute Force® 750 EPS Drive Shaft-Front Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,DIFF CASE

11060-1982

1
Out of stock

13096

HOUSING-CLUTCH,DISC

13096-1163

1

$46.48

In stock

13107

SHAFT,CROSS

13107-0923

1
Out of stock

13139

SHIFTER,DIFFERENTIAL

13139-1097

1
Out of stock

13168

LEVER,DIFF

13168-1724

1
Out of stock

13168A

LEVER,DIFFERENTIAL

13168-1725

1
Out of stock

13271

PLATE,DISC

13271-1503

1

$14.56

In stock

13272

PLATE,CAM

13272-0848

1

$46.27

In stock

14055

CASE-GEAR,BEVEL,LH

14055-0601

1

$119.32

In stock

14055A

CASE-GEAR

14055-0627

1

$127.04

In stock

14055B

CASE-GEAR,CENTER

14055-0629

1

$145.52

In stock

14057

1

$131.07

In stock

14091

COVER,BEVEL,RH

14091-1197

1
Out of stock

14092

COVER

14092-0202

1
Out of stock

14093

COVER,COUPLING

14093-0020

1
Out of stock

16172

ACTUATOR

16172-0039

1
Out of stock

41080

DISC ASSY,DIFFERENTIAL LOCK

41080-0609

1
Out of stock

41080A

DISC,T=1.20

41080-1499

—
Out of stock

41080B

DISC,T=1.80

41080-1500

—
Out of stock

41080C

DISC,T=2.40

41080-1501

—
Out of stock

42034

COUPLING

42034-0767

1
Out of stock

49006

BOOT,UJ

49006-0073

1
Out of stock

49006A

BOOT,DOJ

49006-0074

1
Out of stock

49022

GEAR-BEVEL,10T

49022-0575

1
Out of stock

49022A

GEAR-BEVEL,35T

49022-0610

1
Out of stock

49022B

GEAR-BEVEL,8T

49022-0611

1
Out of stock

49022C

GEAR-BEVEL,16T

49022-1178

1
Out of stock

59266

JOINT-BALL

59266-0024

1
Out of stock

59266A

JOINT-BALL

59266-0025

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92033

RING-SNAP

92033-1298

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92043

PIN,2X10.5

92043-0083

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92043B

PIN

92043-1575

1
Out of stock

92045

BEARING-BALL,60/32

92045-1393

1
Out of stock

92045A

BEARING-BALL,6910

92045-1394

1
Out of stock

92046

BEARING-NEEDLE

92046-0028

1
Out of stock

92046A

BEARING-NEEDLE,AK1116

92046-1286

1
Out of stock

92046B

BEARING-NEEDLE,AJ501515W

92046-1297

1
Out of stock

92049

SEAL-OIL,TC9Y 48X65X9X15.3

92049-0754

1
Out of stock

92049A

SEAL-OIL,SDD7 22X48X7HS

92049-1534

1
Out of stock

92049B

SEAL-OIL,HTCY 62X81X10.5

92049-1536

1
Out of stock

92049C

SEAL-OIL,TC 12X22X7

92049-1550

1
Out of stock

92049D

SEAL-OIL,KB 13X19X13

92049-1572

1
Out of stock

92055

RING-O

92055-0122

1
Out of stock

92065

GASKET,8.5X16X1

92065-023

1
Out of stock

92066

PLUG

92066-1303

1
Out of stock

92145

SPRING,DIFF RETURN

92145-1344

1
Out of stock

92150

BOLT,6X45

92150-1884

1
Out of stock

92151

BOLT,8X50

92151-1794

1
Out of stock

92151A

BOLT,6X60

92151-1795

1
Out of stock

92152

COLLAR

92152-1349

1
Out of stock

92154

BOLT,10X19.5

92154-4340

1
Out of stock

92161

DAMPER,20X20X5

92161-1387

1
Out of stock

92171

CLAMP

92171-0515

1

$5.56

In stock

92172

SCREW,SET,64X10

92172-0719

1
Out of stock

92180

SHIM,62X71X0.15

92180-1390

—
Out of stock

92180A

SHIM,62X71X0.20

92180-1391

—
Out of stock

92180B

SHIM,62X71X0.50

92180-1392

—
Out of stock

92180C

SHIM,62X71X0.70

92180-1393

—
Out of stock

92180D

SHIM,62X71X0.80

92180-1394

—
Out of stock

92180E

SHIM,62X71X0.90

92180-1395

—
Out of stock

92180F

SHIM,62X71X1.00

92180-1396

—
Out of stock

92180G

SHIM,62X71X1.10

92180-1397

—
Out of stock

92180H

SHIM,62X71X1.20

92180-1398

—
Out of stock

92180I

SHIM,32X42X0.15

92180-1399

—
Out of stock

92180J

SHIM,32X42X0.20

92180-1400

—
Out of stock

92180K

SHIM,32X42X0.50

92180-1401

—
Out of stock

92180L

SHIM,32X42X0.70

92180-1402

—
Out of stock

92180M

SHIM,32X42X0.80

92180-1403

—
Out of stock

92180N

SHIM,32X42X0.90

92180-1404

—
Out of stock

92180O

SHIM,32X42X1.00

92180-1405

—
Out of stock

92180P

SHIM,32X42X1.10

92180-1406

—
Out of stock

92180Q

SHIM,32X42X1.20

92180-1407

—
Out of stock

92180R

SHIM,50X61X0.15

92180-1408

—
Out of stock

92180S

SHIM,50X61X0.20

92180-1409

—
Out of stock

92180T

SHIM,50X61X0.50

92180-1410

—
Out of stock

92180U

SHIM,50X61X0.70

92180-1411

—
Out of stock

92180V

SHIM,50X61X0.80

92180-1412

—
Out of stock

92180W

SHIM,50X61X0.90

92180-1413

—
Out of stock

92180X

SHIM,50X61X1.00

92180-1414

—
Out of stock

92180Y

SHIM,50X61X1.10

92180-1415

—
Out of stock

92180Z

SHIM,50X61X1.20

92180-1416

—
Out of stock

92192

TUBE,7X12X760

92192-0716

1
Out of stock

92200

WASHER,10X24X2.5

92200-1635

1
Out of stock

92210

NUT,25MM

92210-1225

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1351

1
Out of stock

130

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

130A

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

132

1

$1.21

In stock

132A

1

$2.17

In stock

481

CIRCLIP-TYPE-C,25MM

481J2500

1
Out of stock

600

BALL-STEEL,11/32"

600A1100

1
Out of stock

601

BEARING-BALL,#6305

601A6305

1
Out of stock

670

O RING

670D3022

1
Out of stock

671

O RING

671D25145

1
Out of stock
