2026 Kawasaki Brute Force® 750 EPS AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

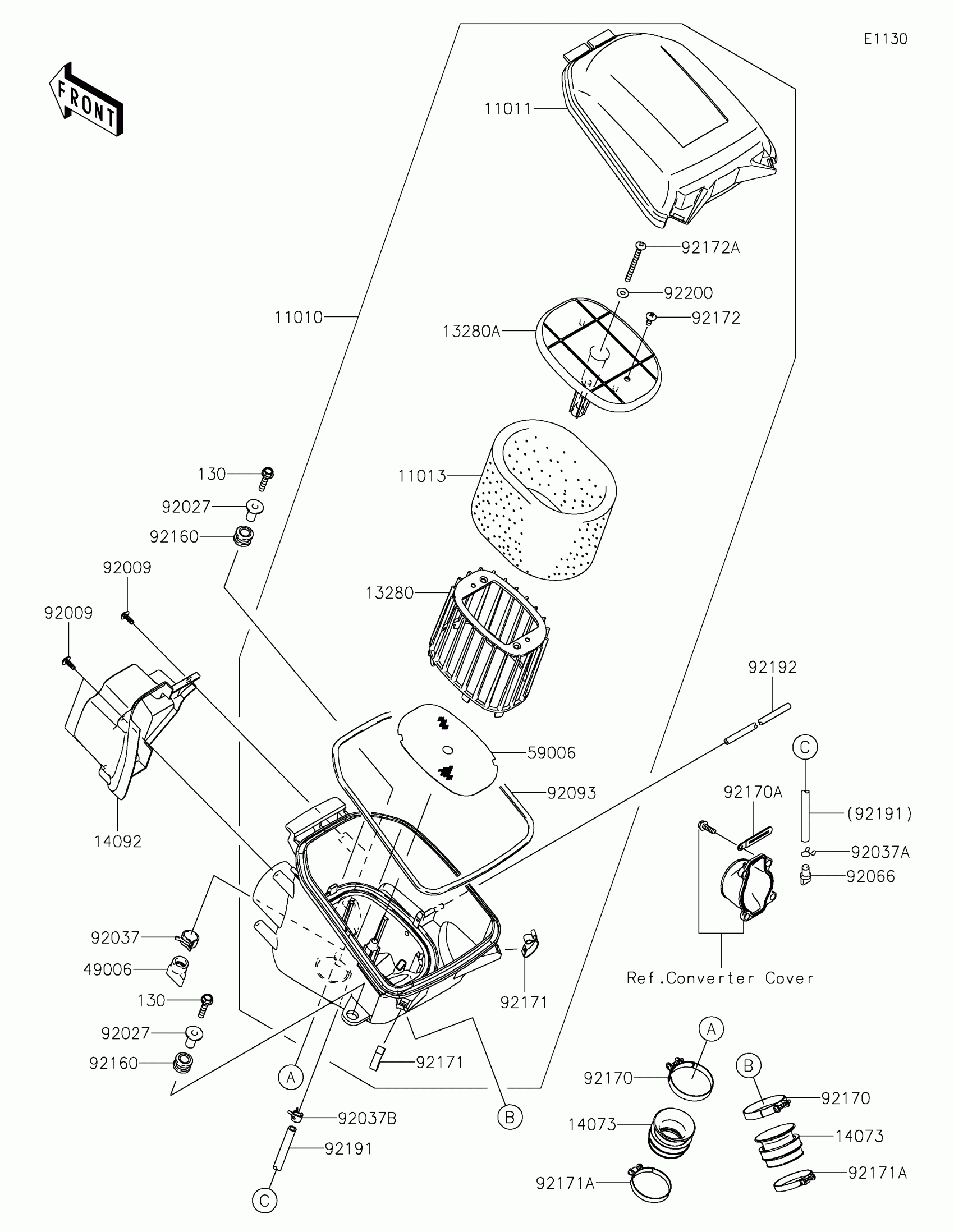

2026 Kawasaki Brute Force® 750 EPS AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0784

1
Out of stock

11011

CASE-AIR FILTER,UPP

11011-0017

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0021

1
Out of stock

13280

HOLDER

13280-0232

1

$15.25

In stock

13280A

HOLDER

13280-0233

1

$7.20

In stock

14073

DUCT

14073-0160

1

$6.27

In stock

14092

COVER,INTAKE DUCT

14092-0768

1
Out of stock

49006

BOOT

49006-1292

1
Out of stock

59006

ARRESTER-FLAME

59006-0015

1
Out of stock

92009

SCREW,TAPPING

92009-1113

1
Out of stock

92027

COLLAR

92027-195

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1460

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,TUBE

92037-1505

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92093

SEAL

92093-0083

1
Out of stock

92160

DAMPER

92160-1594

1
Out of stock

92170

CLAMP

92170-1448

1

$6.44

In stock

92170A

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP

92171-0225

1

$1.68

In stock

92171A

CLAMP

92171-0722

1
Out of stock

92172

SCREW

92172-0297

1
Out of stock

92172A

SCREW

92172-0300

1
Out of stock

92191

TUBE,7X11X470

92191-1531

1
Out of stock

92192

TUBE

92192-0449

1
Out of stock

92200

WASHER

92200-0364

1
Out of stock

130

BOLT-FLANGED,6X30

130BA0630

1

$1.31

In stock
