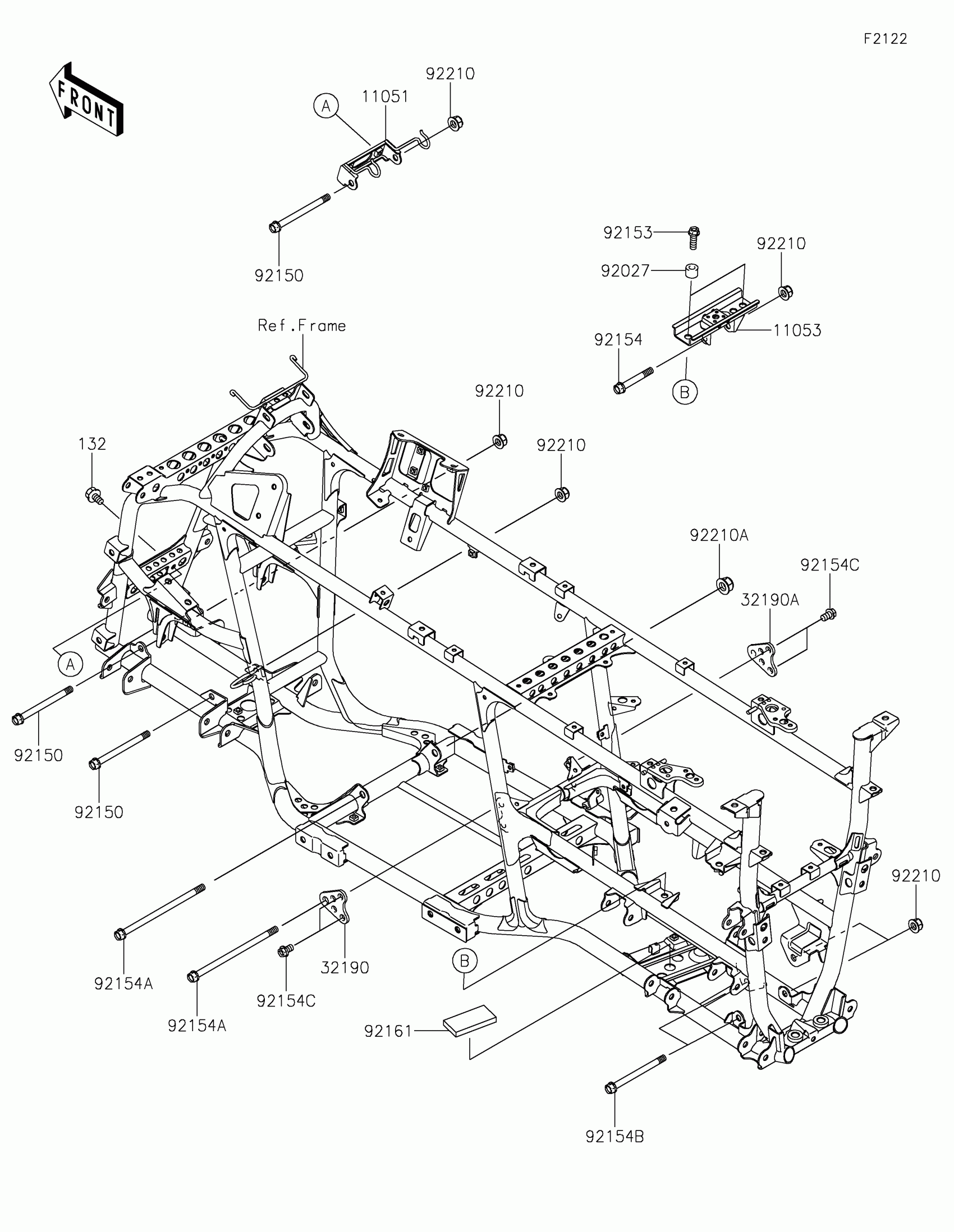

Kawasaki BRUTE FORCE® 750 Engine Mount Diagram

Description

Price

11051

BRACKET,FRONT DIFF

11051-1929

$30.03

11053

BRACKET,REAR DIFF,TOP

11053-1592

$10.37

32190

BRACKET-ENGINE,RR,UPP,LH

32190-0059

$3.68

32190A

BRACKET-ENGINE,RR,UPP,RH

32190-0060

$3.68

92027

COLLAR,FRONT AXLE,L=14.5

92027-1472

$14.23

92150

BOLT,FLANGED,10X120

92150-1642

$17.91

92153

BOLT,10X30

92153-0908

$3.35

92154

BOLT,FLANGED,10X70

92154-0894

$5.98

92154A

BOLT,FLANGED,12X190

92154-1518

$19.45

92154B

BOLT,FLANGED,10X120

92154-1519

$20.39

92154C

BOLT,FLANGED,10X16

92154-1520

$3.63

92161

DAMPER

92161-0215

$7.59

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22

132

BOLT-FLANGED-SMALL,8X14

132BA0814

$3.02
