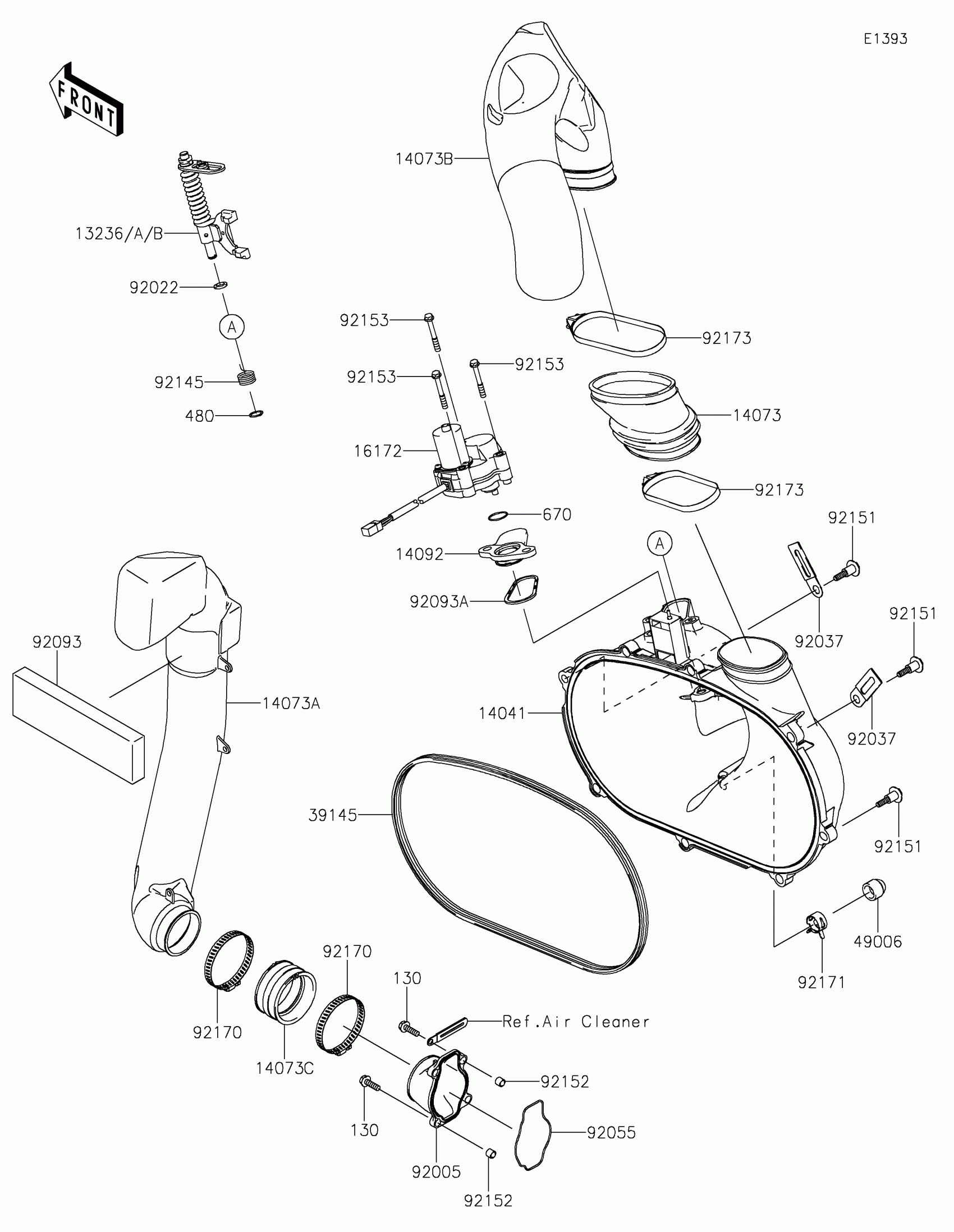

Kawasaki BRUTE FORCE® 750 Converter Cover Diagram

Description

Price

13236

LEVER-COMP,YELLOW

13236-0046

Unavailable

13236A

LEVER-COMP,GREEN

13236-0047

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0048

$131.68

14041

COVER-COMP

14041-0625

$195.13

14073

DUCT,EXHAUST JOINT

14073-0028

$16.47

14073A

DUCT,INTAKE

14073-0298

$35.43

14073B

DUCT,EXHAUST

14073-0734

$23.26

14073C

DUCT,JOINT

14073-1775

$4.36

14092

COVER

14092-0780

$13.37

16172

ACTUATOR

16172-0018

$421.70

39145

TRIM-SEAL

39145-0702

$19.32

49006

BOOT,DRAIN

49006-0560

$6.57

92005

FITTING

92005-0718

$12.20

92022

WASHER,10.2X16X1

92022-1829

$4.31

92037

CLAMP

92037-1780

$6.57

92055

RING-O

92055-1630

$10.49

92093

SEAL

92093-0581

$12.46

92093A

SEAL

92093-1548

$10.06

92145

SPRING

92145-1567

$2.78

92151

BOLT,FLANGED,6X30

92151-1686

$9.43

92152

COLLAR

92152-1332

$4.18

92153

BOLT,6X47

92153-0678

$3.07

92170

CLAMP

92170-1764

$11.48

92171

CLAMP

92171-0329

$8.89

92173

CLAMP

92173-0260

$13.18

130

BOLT-FLANGED,6X20

130CA0620

$1.70

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

670

O RING

670D3022

$2.80
