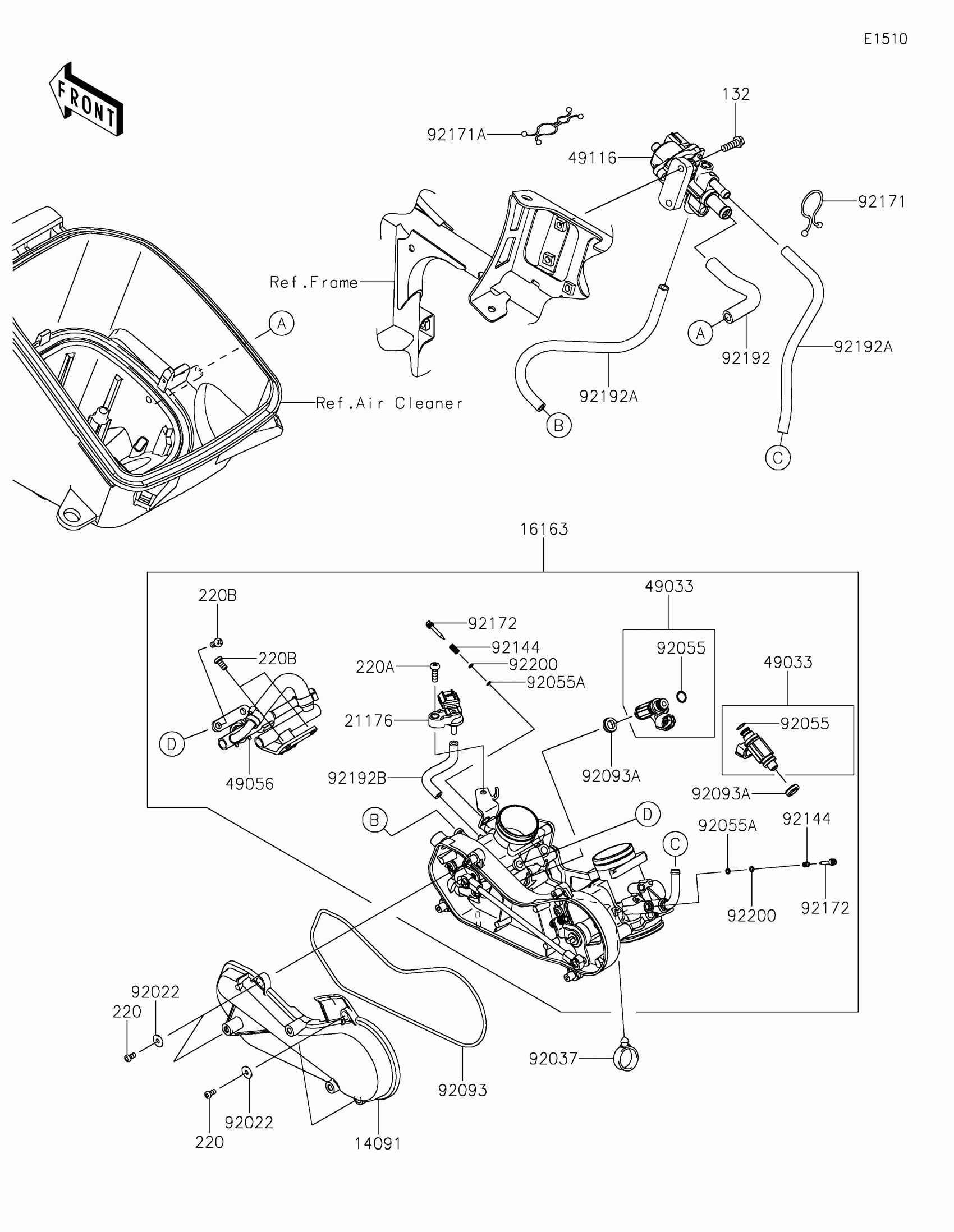

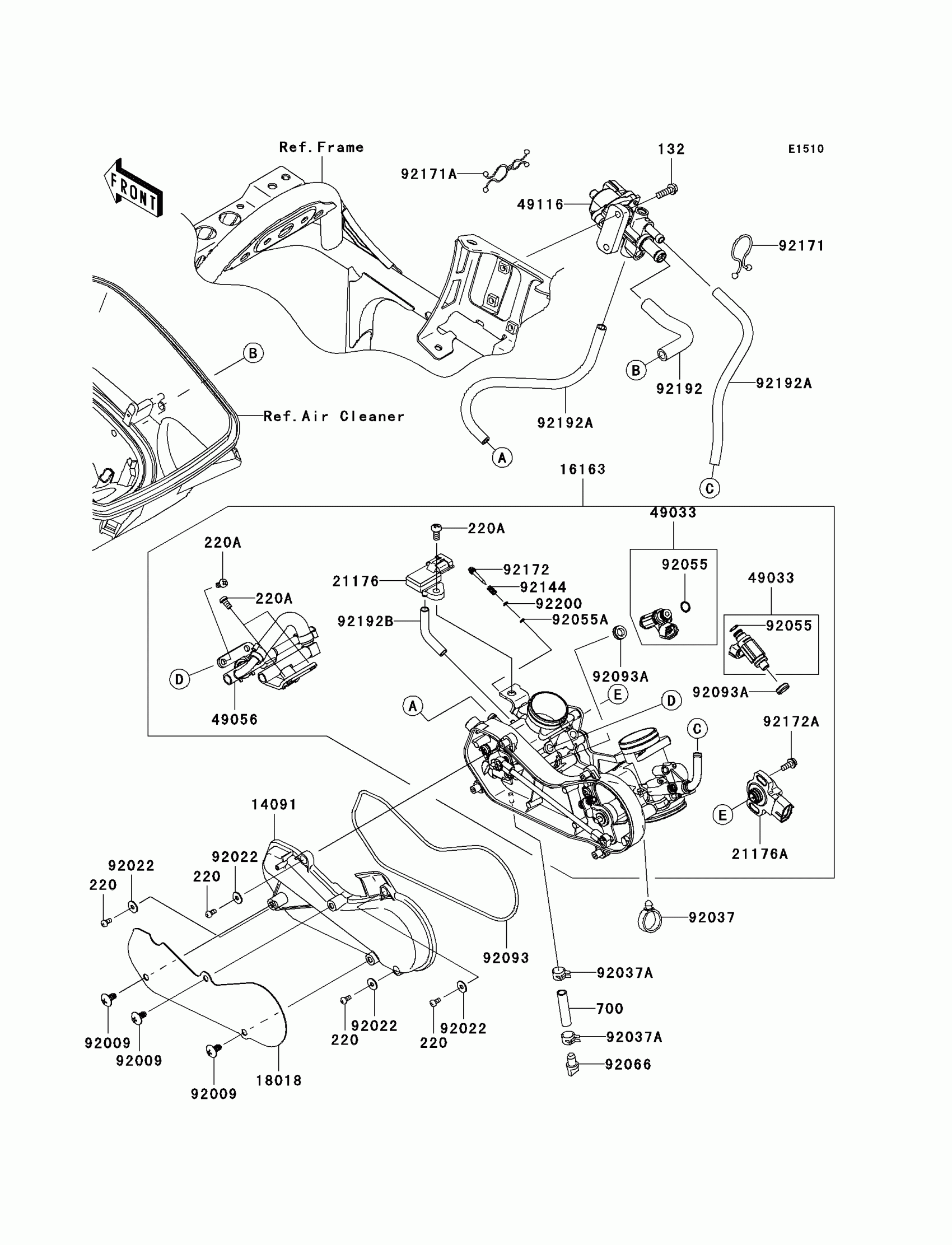

Kawasaki Brute Force® 750 4x4i Throttle Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,6X12

220AA0612

$1.19

700

TUBE-PVC

700Q0740

$8.05

14091

COVER

14091-0737

$24.32

16163

THROTTLE-ASSY,36EIS

16163-0125

Unavailable

18018

PLATE-HEAT GUARD

18018-0010

$5.37

21176

SENSOR,PRESSURE

21176-0058

$141.24

21176A

SENSOR,TPS

21176-0100

$218.06

49033

NOZZLE-INJECTION

49033-1060

$140.46

49056

PIPE-INJECTION

49056-0021

$373.44

49116

VALVE-ASSY,ISC

49116-0021

$197.51

92009

SCREW,6X12

92009-1480

$3.21

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,HOSE

92037-1827

$7.45

92037A

CLAMP

92037-2113

$1.03

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O,AIR SCREW

92055-1658

$6.00

92066

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL

92093-0082

$5.94

92093A

SEAL

92093-0127

$10.56

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92171

CLAMP

92171-1185

$2.46

92171A

CLAMP

92171-1438

$3.73

92172

SCREW

92172-0156

$15.20

92172A

SCREW

92172-0254

$2.97

92192

TUBE

92192-0437

$7.53

92192A

TUBE

92192-0439

$7.36

92192B

TUBE,3.2X7.4X50

92192-0578

$4.87

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58
