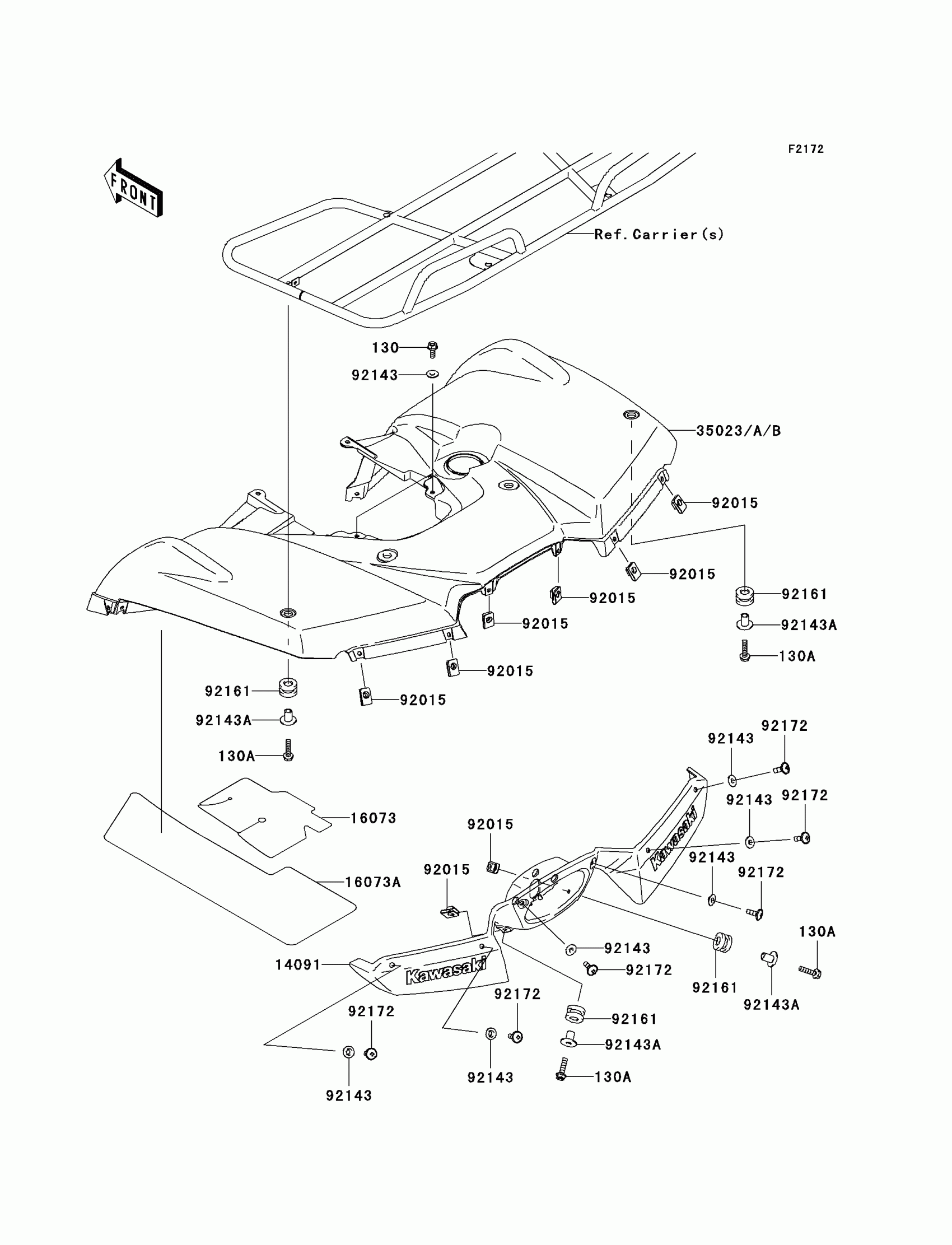

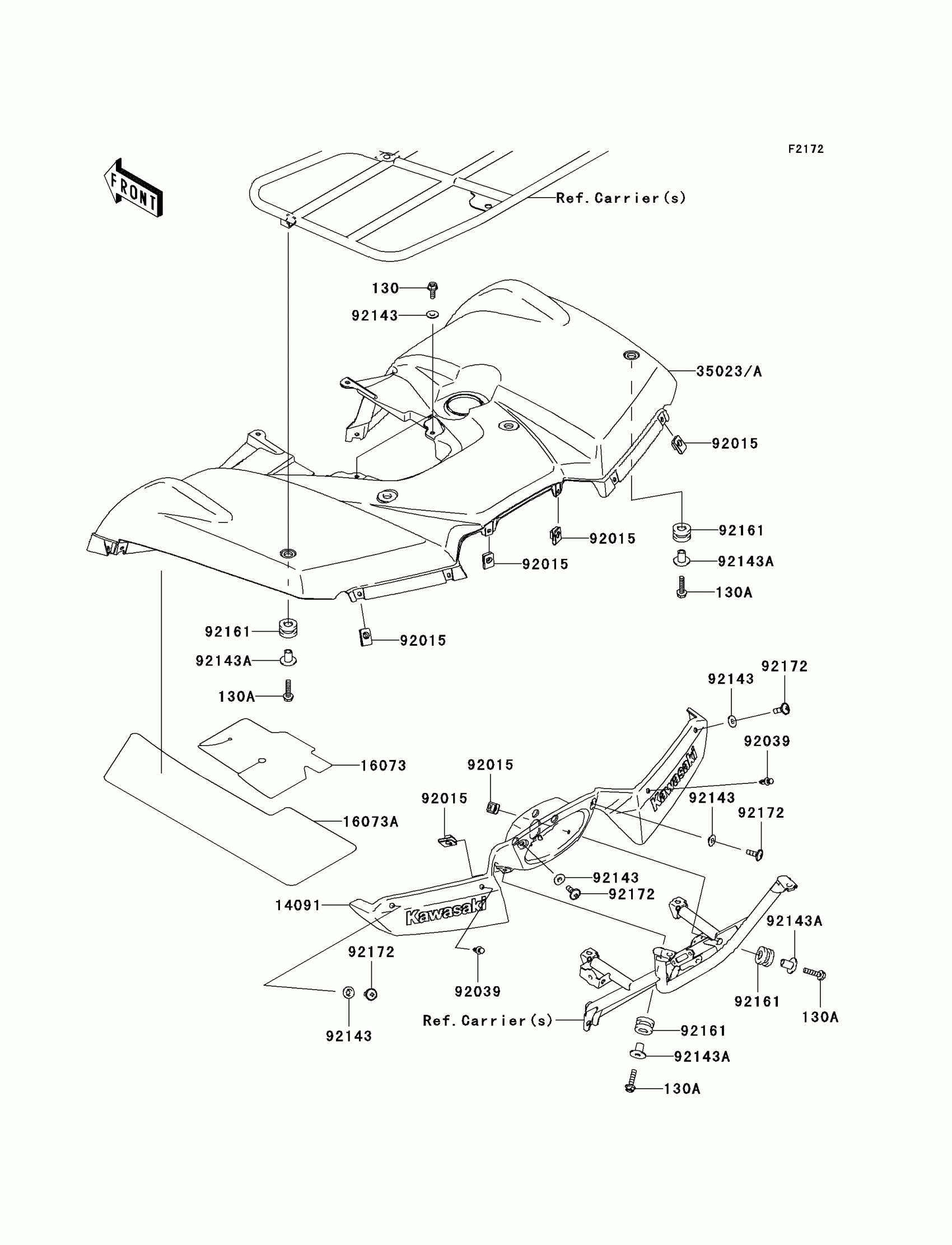

Kawasaki Brute Force 750 4x4i Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED,6X25

130J0625

$2.62

14091

COVER,TAIL LAMP,F.BLACK

14091-0252-6Z

$42.43

16073

INSULATOR,REAR FENDER,INNER

16073-0031

Unavailable

16073A

INSULATOR,REAR FENDER,OUTER

16073-0032

$30.65

35023

FENDER-REAR,A.RED

35023-0050-260

Unavailable

35023A

FENDER-REAR,D.YELLOW

35023-0050-277

Unavailable

35023B

FENDER-REAR,H.GREEN

35023-0050-6A

Unavailable

92015

NUT,6MM

92015-1602

$7.34

92143

COLLAR

92143-1087

$4.31

92143A

COLLAR

92143-1960

$6.47

92161

DAMPER

92161-0106

$1.73

92172

SCREW,6X18

92172-0002

$2.80
