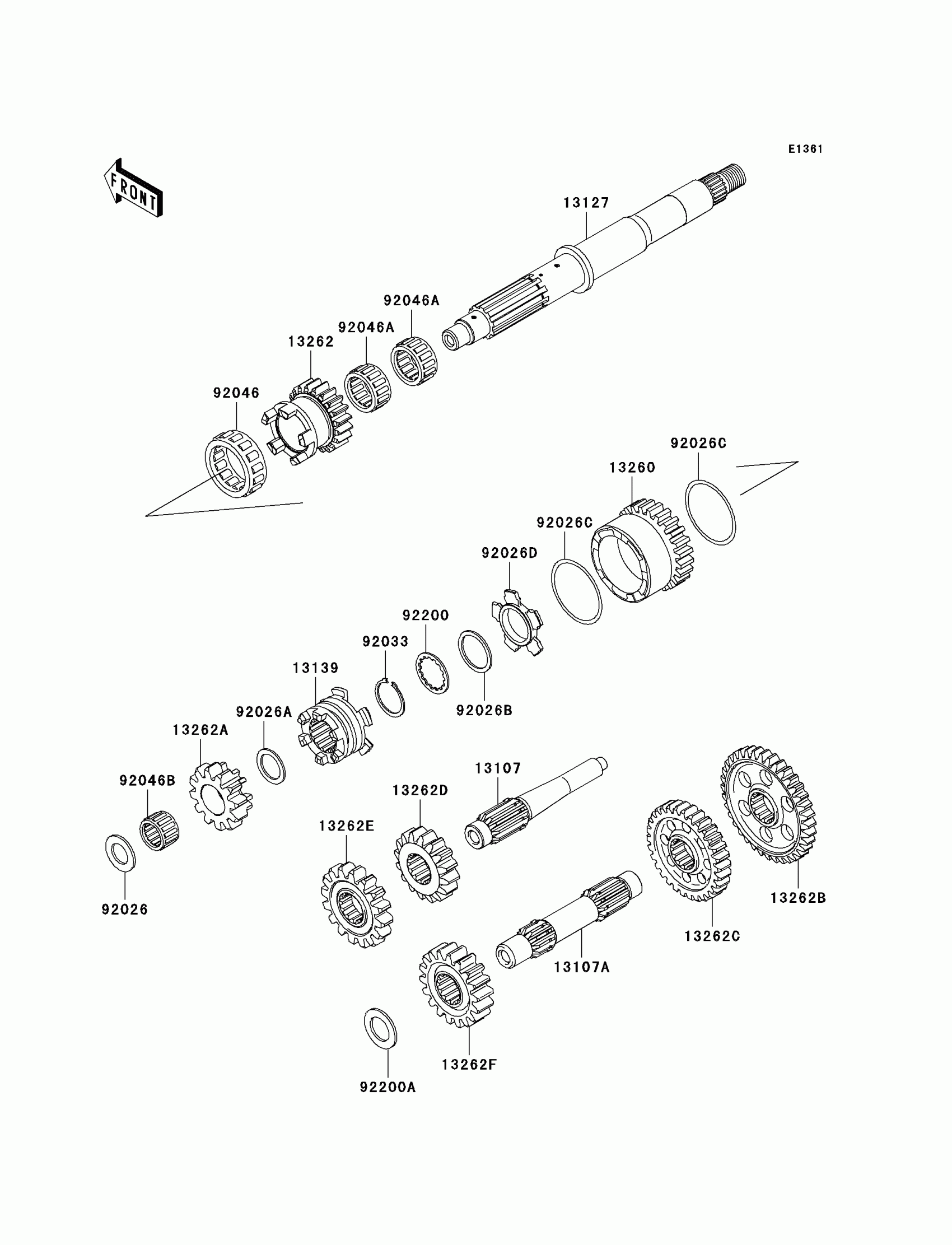

Kawasaki Brute Force 750 4x4i Realtree APG HD Transmission Diagram

Description

Price

13107

SHAFT,REVERSE,IDLE

13107-0158

Unavailable

13107A

SHAFT,COUNTER

13107-0177

Unavailable

13127

SHAFT-TRANSMISSION INPUT

13127-0053

$271.31

13139

SHIFTER

13139-0003

Unavailable

13260

GEAR,INPUT HIGH,26T

13260-1867

$141.43

13262

GEAR,INPUT LOW,20T

13262-0234

$134.04

13262A

GEAR,INPUT REVERSE,12T

13262-0235

$113.25

13262B

GEAR,DRIVEN LOW,36T

13262-0313

$124.02

13262C

GEAR,DRIVEN HI,30T

13262-0314

$122.09

13262D

GEAR,OUTPUT REVERSE,16T

13262-0433

Unavailable

13262E

GEAR,DRIVEN REVERSE,16T

13262-0434

Unavailable

13262F

GEAR,OUTPUT DRIVE,18T

13262-0491

Unavailable

92026

SPACER,17.3X30X2.0

92026-1415

$8.05

92026A

SPACER,21.2X29X1.6

92026-1568

$7.98

92026B

SPACER,28.2X34.5X1.6

92026-1587

$4.18

92026C

SPACER,48.2X54.3X1.0

92026-1599

$6.18

92026D

SPACER,HI&LOW

92026-1600

$51.62

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

$36.04

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

$23.34

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

$20.02

92200

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200A

WASHER,20.3X33X2.0

92200-1351

$2.67
