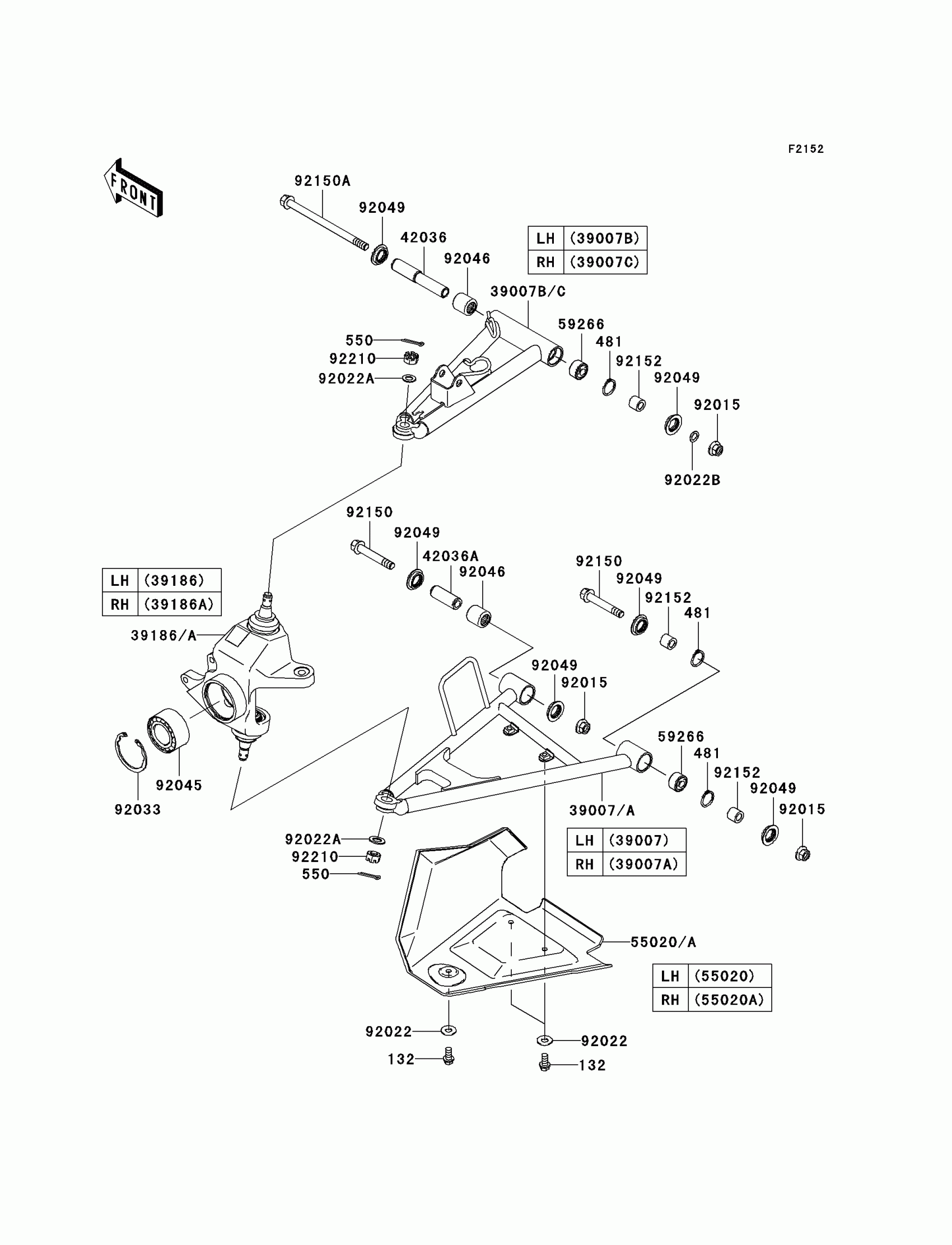

Kawasaki Brute Force 750 4x4i Realtree APG HD Front Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

550

PIN-COTTER,3.0X25

550AA3025

$0.62

39007

ARM-SUSP,FR,LWR,LH

39007-0064

$87.50

39007A

ARM-SUSP,FR,LWR,RH

39007-0065

$87.50

39007B

ARM-SUSP,FR,UPP,LH

39007-0066

$87.50

39007C

ARM-SUSP,FR,UPP,RH

39007-0067

$87.50

39186

KNUCKLE ASSY,FR,LH

39186-0033

$296.64

39186A

KNUCKLE ASSY,FR,RH

39186-0034

$296.64

42036

SLEEVE,SUSPENSION ARM

42036-0016

$28.82

42036A

SLEEVE

42036-1376

$14.71

55020

GUARD,FRONT ARM,LH,F.BLACK

55020-0109-6Z

$33.78

55020A

GUARD,FRONT ARM,RH,F.BLACK

55020-0110-6Z

$33.78

59266

JOINT-BALL

59266-0013

$65.53

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92022

WASHER PLAIN

92022-024

$3.65

92022A

WASHER,12.3X22X1.6

92022-1065

$3.96

92022B

WASHER,10.2X16X1

92022-1829

Unavailable

92033

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,30BWD08ACA13

92045-0095

Unavailable

92046

BEARING-NEEDLE

92046-1046

$27.88

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92150

BOLT,FLANGED,10X63

92150-1384

$13.75

92150A

BOLT,FLANGED,10X150

92150-1686

$16.01

92152

COLLAR,10X17X14.5

92152-1455

$9.07

92210

NUT,CASTLE,12MM

92210-0395

$3.86
