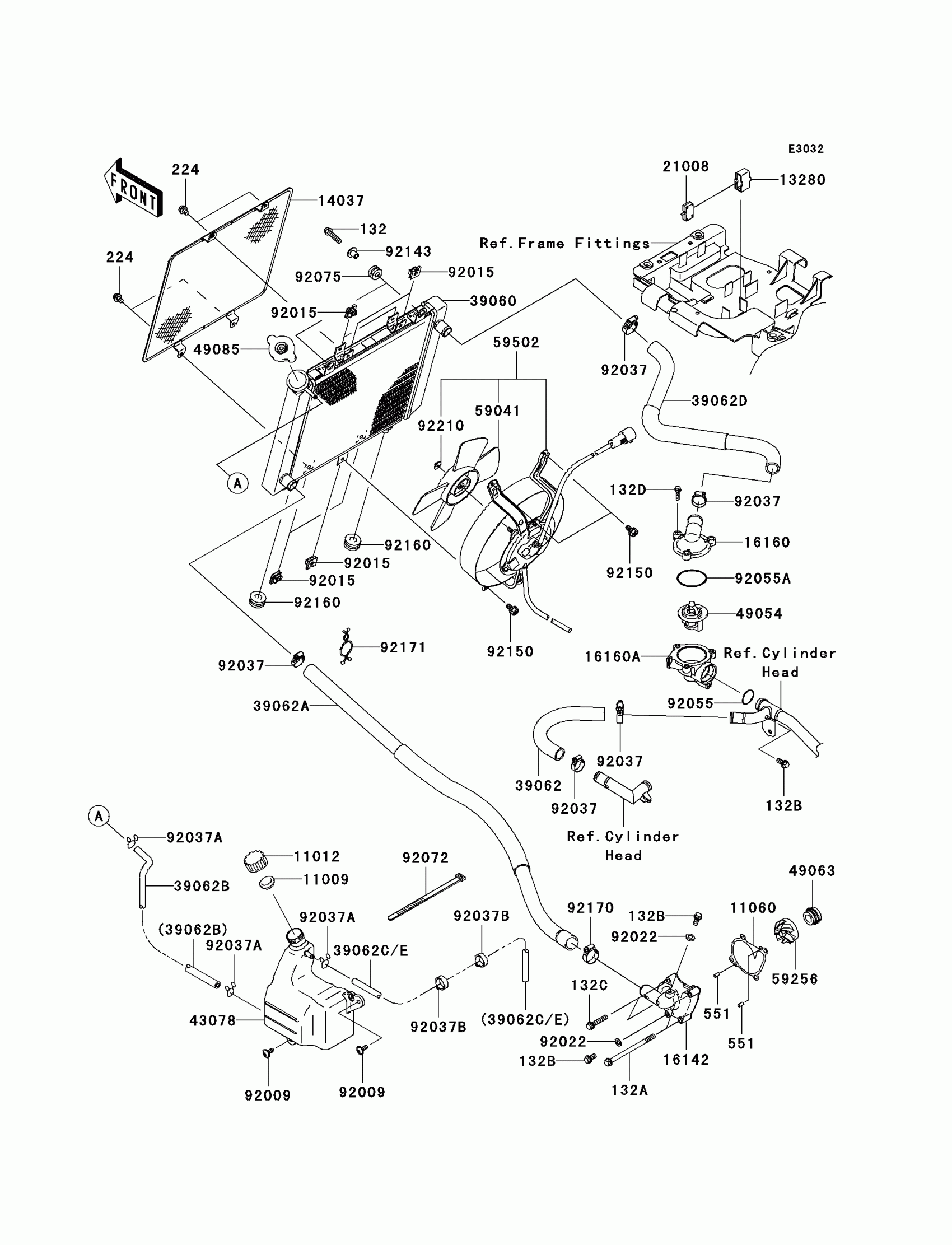

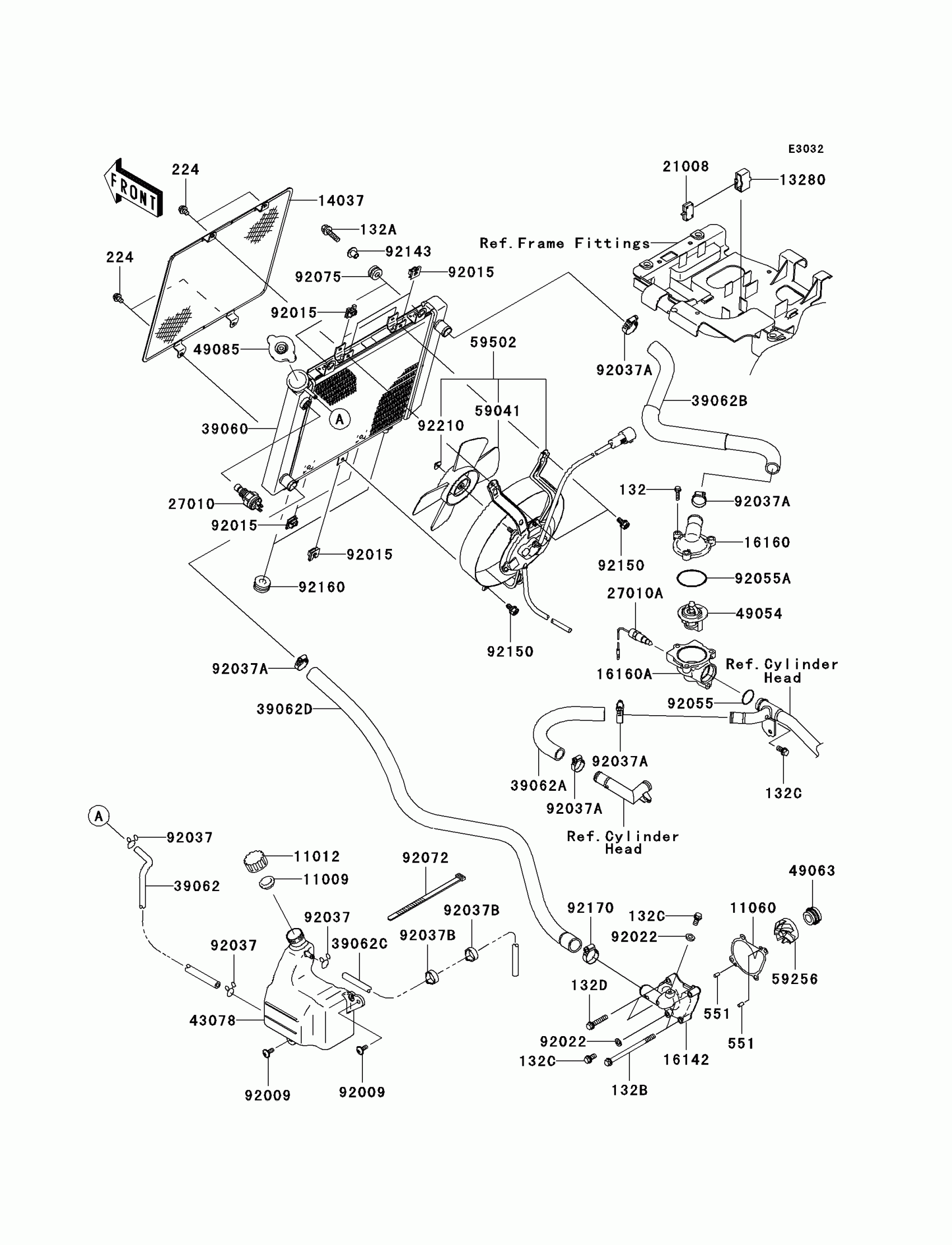

Kawasaki BRUTE FORCE® 750 4x4i Radiator Diagram
#
132
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,WATER PUMP
11060-1964
$7.58
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN
14037-0045
$79.64
16142
COVER-PUMP,WATER
16142-0002
$83.83
16160
BODY,THERMOSTAT,UPP
16160-0046
$68.33
16160A
BODY,THERMOSTAT,LWR
16160-0127
$85.12
21008
BREAKER,FAN MOTOR
21008-0001
$26.03
39060
RADIATOR
39060-0040
$881.05
39062
HOSE-COOLING,FR HEAD-THERMO
39062-0178
$13.48
39062A
HOSE-COOLING,RAD-WATER PUMP
39062-0180
$38.93
39062B
HOSE-COOLING
39062-0226
$9.66
39062D
HOSE-COOLING,THERMO-RADIATOR
39062-0241
$20.84
39062E
HOSE-COOLING,5X9X800
39062-0321
$7.59
43078
RESERVOIR
43078-0024
$54.40
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
59041
FAN
59041-0002
$48.32
59256
IMPELLER
59256-1069
$21.38
59502
FAN-ASSY
59502-0011
$605.57
92009
SCREW,6X16
92009-1694
$3.92
92015
NUT
92015-1487
$4.80
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,COOLING HOSE
92037-1589
$18.57
92037A
CLAMP
92037-1712
$5.00
92037B
CLAMP,HOSE
92037-1827
$7.45
92055
RING-O,22.1X2.4
92055-1081
$4.69
92055A
RING-O,44.7X2.4
92055-1279
$7.34
92072
BAND,L=123
92072-030
$5.00
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1353
$8.58
92150
BOLT,6X12
92150-1186
$3.37
92160
DAMPER
92160-1007
$5.52
92170
CLAMP
92170-1497
$16.83
92171
CLAMP
92171-1736
$5.92
92210
NUT
92210-0335
$4.13
132A
BOLT-FLANGED-SMALL,6X90
132BB0690
$6.83
132B
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132C
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
132D
BOLT-FLANGED-SMALL,6X20
132E0620
$4.44
224
SCREW-PAN-WP-CROS,6X10
224AB0610
$1.86
551
PIN-DOWEL,4X8
551A0408
$0.78
