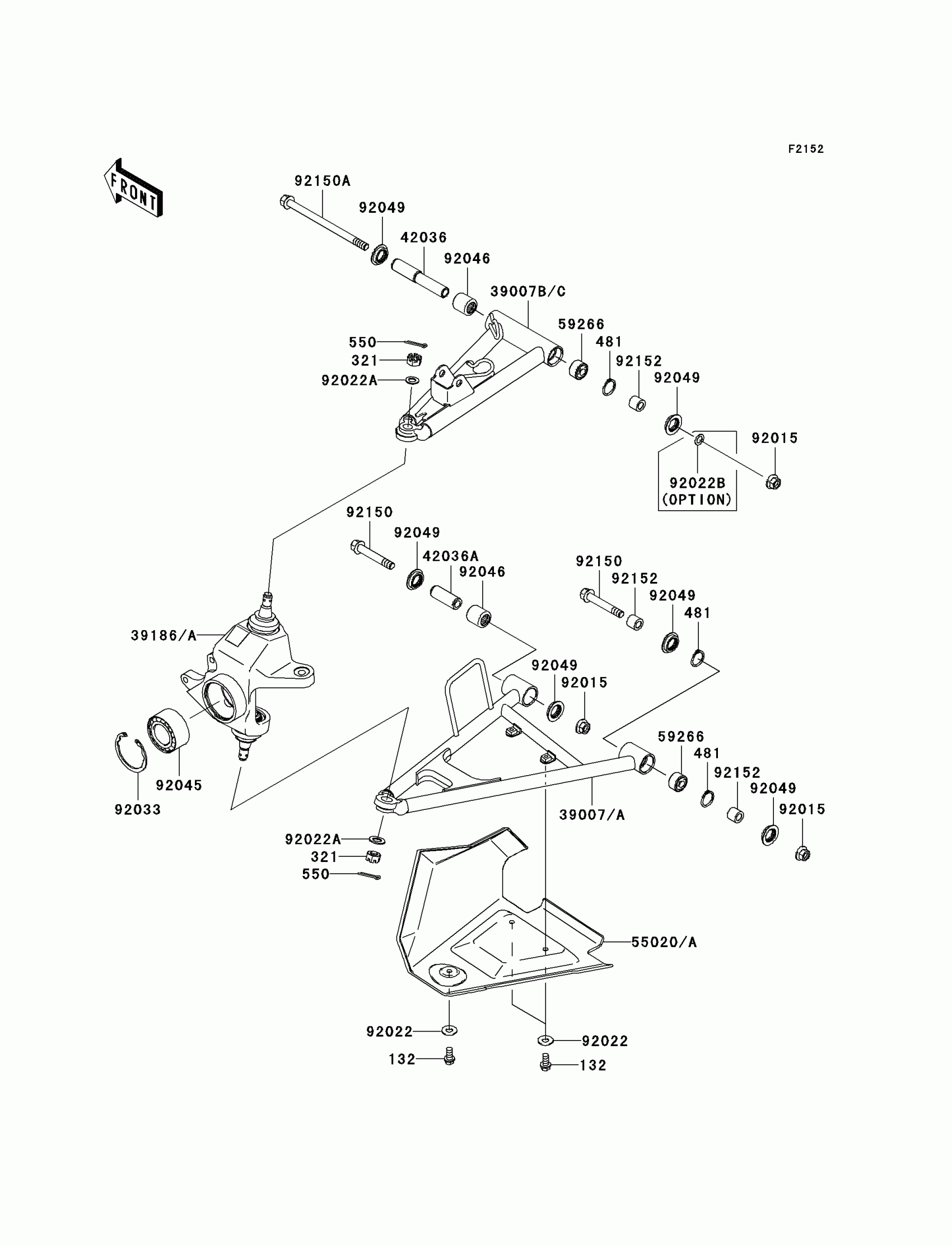

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Front Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

321

NUT-CASTLE,12MM

321H1200

Unavailable

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.22

550

PIN-COTTER,3.0X25

550D3025

Unavailable

39007

ARM-SUSP,FR,LWR,LH

39007-0040

$95.08

39007A

ARM-SUSP,FR,LWR,RH

39007-0041

$95.08

39007B

ARM-SUSP,FR,UPP,LH

39007-7507

$95.08

39007C

ARM-SUSP,FR,UPP,RH

39007-7508

Unavailable

39186

KNUCKLE ASSY,FR,LH

39186-0033

$273.09

39186A

KNUCKLE ASSY,FR,RH

39186-0034

$273.09

42036

SLEEVE,SUSPENSION ARM

42036-0016

$25.52

42036A

SLEEVE

42036-1376

$11.17

55020

GUARD,FRONT ARM,LH,F.BLACK

55020-0109-6Z

$34.38

55020A

GUARD,FRONT ARM,RH,F.BLACK

55020-0110-6Z

$30.34

59266

JOINT-BALL

59266-1011

$58.78

92015

NUT,FLANGED,10MM

92015-1415

$3.57

92022

WASHER PLAIN

92022-024

$2.76

92022A

WASHER,12.3X22X1.6

92022-1065

$3.58

92022B

WASHER,10.2X16X1

92022-1829

Unavailable

92033

RING-SNAP,55MM

92033-1274

$7.18

92045

BEARING-BALL,30BWD08A

92045-1448

$90.61

92046

BEARING-NEEDLE

92046-1046

$22.57

92049

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92150

BOLT,FLANGED,10X63

92150-1384

$10.44

92150A

BOLT,FLANGED,10X150

92150-1686

$12.15

92152

COLLAR,10X17X14.5

92152-1455

$6.91
