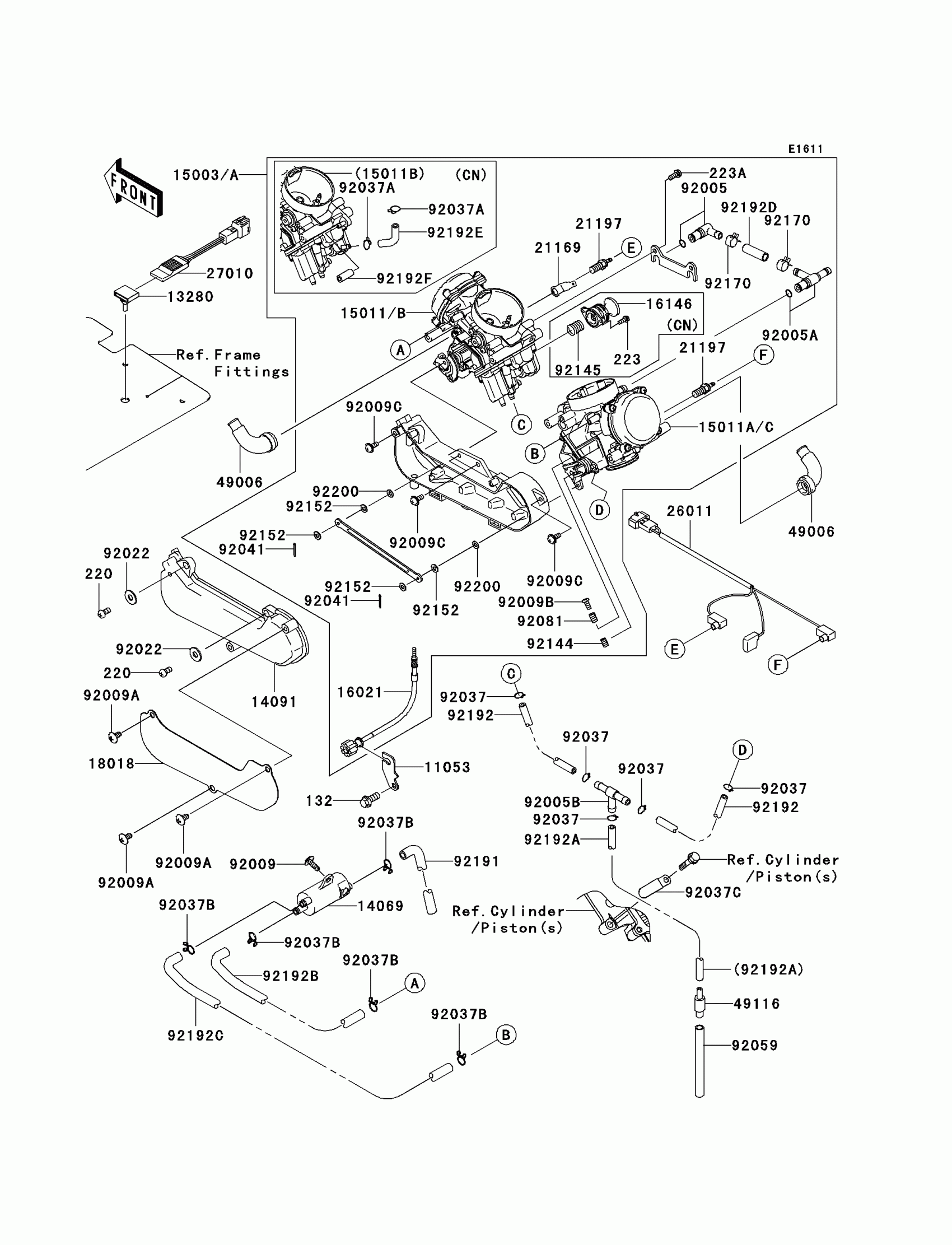

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Carburetor Diagram

#

Description
Price

11053

BRACKET

11053-1299

$4.25

13280

HOLDER,CARBURETOR

13280-1253

$3.88

14069

BREATHER

14069-0002

$18.36

14091

COVER

14091-0360

$6.05

16021

SCREW-THROTTLE STOP

16021-0011

$70.48

18018

PLATE-HEAT GUARD

18018-0004

$11.07

21169

TERMINAL

21169-0001

$2.25

21197

HEATER

21197-1006

$109.22

26011

WIRE-LEAD

26011-0030

$20.02

27010

SWITCH

27010-0013

$103.16

49006

BOOT

49006-0028

$4.72

49116

VALVE-ASSY

49116-1126

$16.82

92005

FITTING

92005-0029

$20.64

92005A

FITTING

92005-0030

$20.64

92005B

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,TAPPING

92009-1113

$2.99

92009A

SCREW,6X12

92009-1480

$2.23

92009B

SCREW,SYNCHRONIZE

92009-1858

$2.15

92009C

SCREW

92009-1878

$2.15

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,TUBE

92037-010

$2.99

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP,L=45

92037-1539

$4.42

92041

COTTER

92041-1061

$3.71

92059

TUBE,7X10X100

92059-1736

$3.40

132

BOLT-FLANGED-SMALL,6X14

132Y0614

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

223A

SCREW-PAN-WS-CROS

223D0514

Unavailable

92081

SPRING

92081-1620

$3.78

92144

SPRING

92144-1451

$9.29

92152

COLLAR

92152-0268

$2.24

92170

CLAMP,TUBE

92170-1051

$8.75

92191

TUBE,7X11X470

92191-1531

$7.14

92192

TUBE,4.5X8X120

92192-0141

$2.08

92192A

TUBE,4.5X8X370

92192-0142

$5.80

92192B

TUBE,7X11X320

92192-0143

$6.64

92192C

TUBE,7X11X450

92192-0144

$10.47

92192D

TUBE,7.3X12.5X45

92192-0187

Unavailable

92200

WASHER,LINK ARM,PLASTIC

92200-1432

$1.76

15003

CARBURETOR-ASSY

15003-0087

$1,498.78

15003A

CARBURETOR-ASSY

15003-0088

Unavailable

15011

CARBURETOR,FR

15011-0088

Unavailable

15011A

CARBURETOR,RR

15011-0089

Unavailable

15011B

CARBURETOR,FR

15011-0090

Unavailable

15011C

CARBURETOR,RR

15011-0091

Unavailable

16146

COVER-ASSY,PRIMING

16146-1225

$52.90

92037A

CLAMP,TUBE

92037-1201

$3.51

223

SCREW-PAN-WS-CROS

223C0412

$3.29

92145

SPRING,PRIMING

92145-1451

$7.76

92192E

TUBE,4.5X8.5X40

92192-0188

Unavailable

92192F

TUBE,4.5X8.5X20

92192-0189

Unavailable
