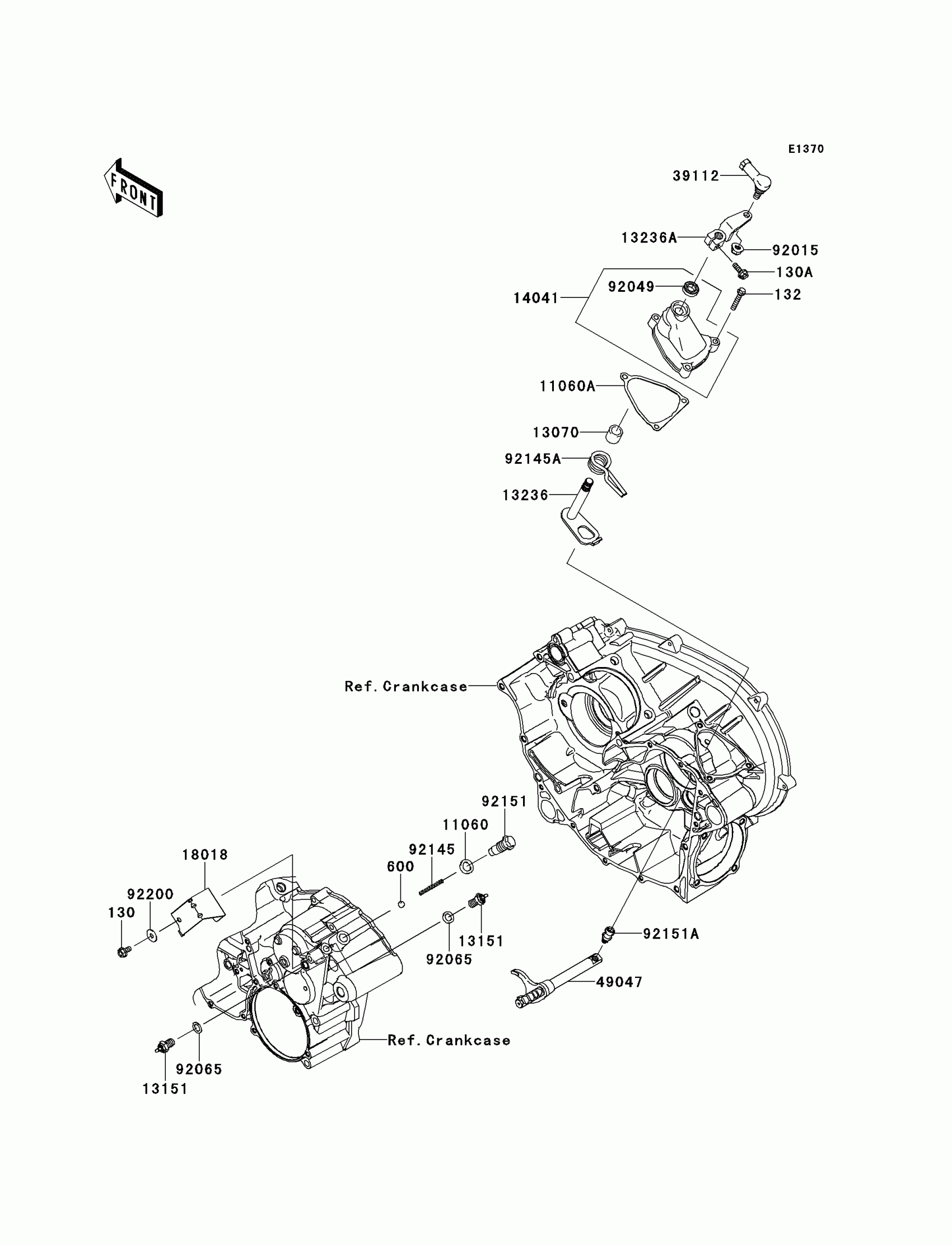

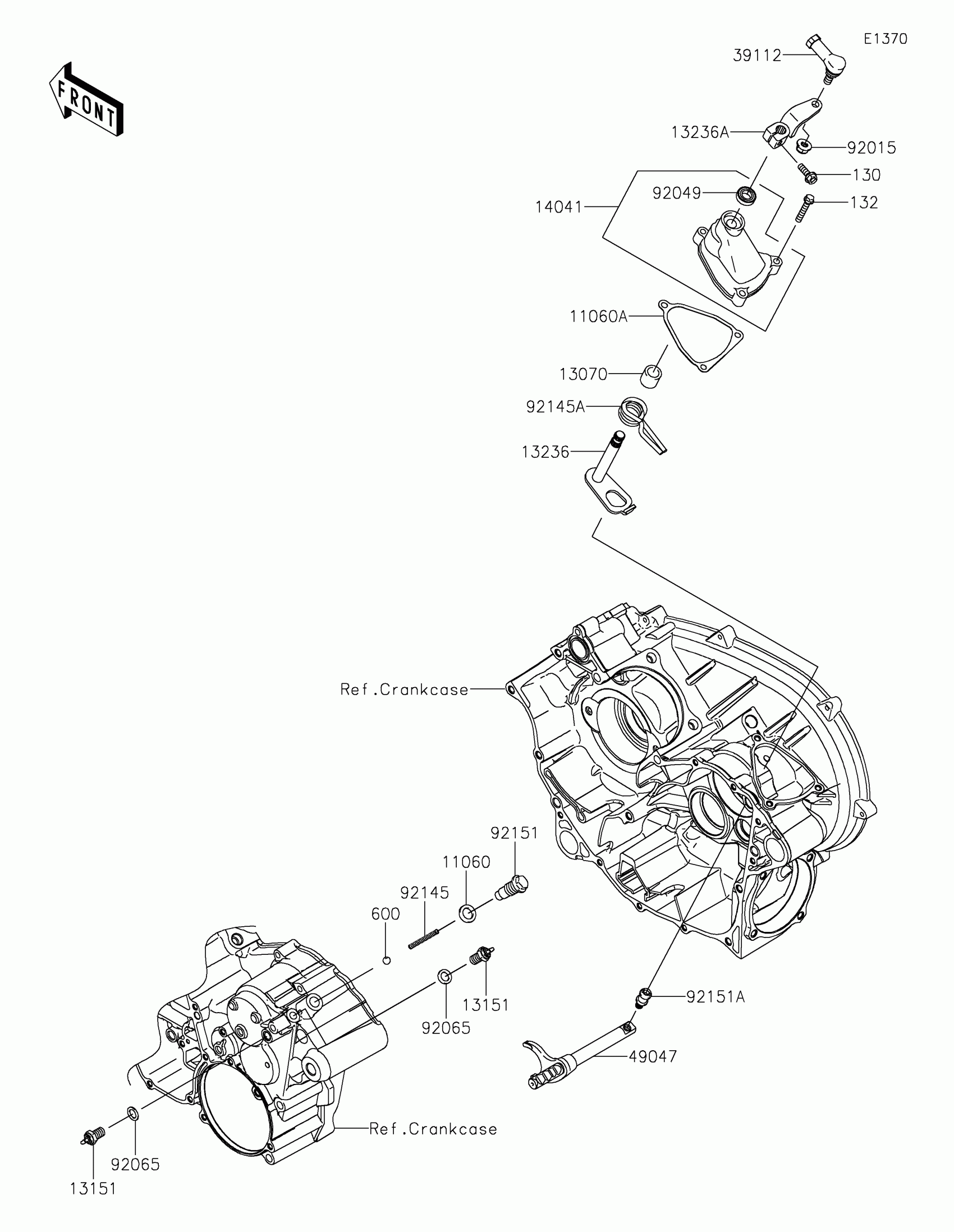

Kawasaki BRUTE FORCE® 750 4x4i EPS Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X20

130CD0620

$1.51

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

600

BALL-STEEL,5/16

600A1000

$0.66

11060

GASKET,14X20X2

11060-1287

$2.36

11060A

GASKET,CHANGE LEVER COVER

11060-1956

$4.61

13070

GUIDE

13070-1352

$4.39

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

13236

LEVER-COMP,CHANGE

13236-0051

$20.98

13236A

LEVER-COMP,CHANGE LEVER

13236-1343

$22.69

14041

COVER-COMP,CHANGE LEVER

14041-1136

$40.44

18018

PLATE-HEAT GUARD

18018-0561

$4.29

39112

RODEND-TIE,CHANGE LEVER

39112-1080

Unavailable

49047

ROD-SHIFT

49047-1104

$112.60

92015

NUT,8MM

92015-1432

$4.93

92049

SEAL-OIL,TB12205.5

92049-1271

$7.08

92065

GASKET,10.5X16X1

92065-058

$3.03

92145

SPRING,CHANGE POSITION

92145-1297

$1.71

92145A

SPRING,CHANGE LEVER

92145-1299

$20.15

92151

BOLT,CHANGE POSITION

92151-1687

$13.97

92151A

BOLT,SHIFT ROD

92151-1699

$17.19

92200

WASHER

92200-0078

$1.54
