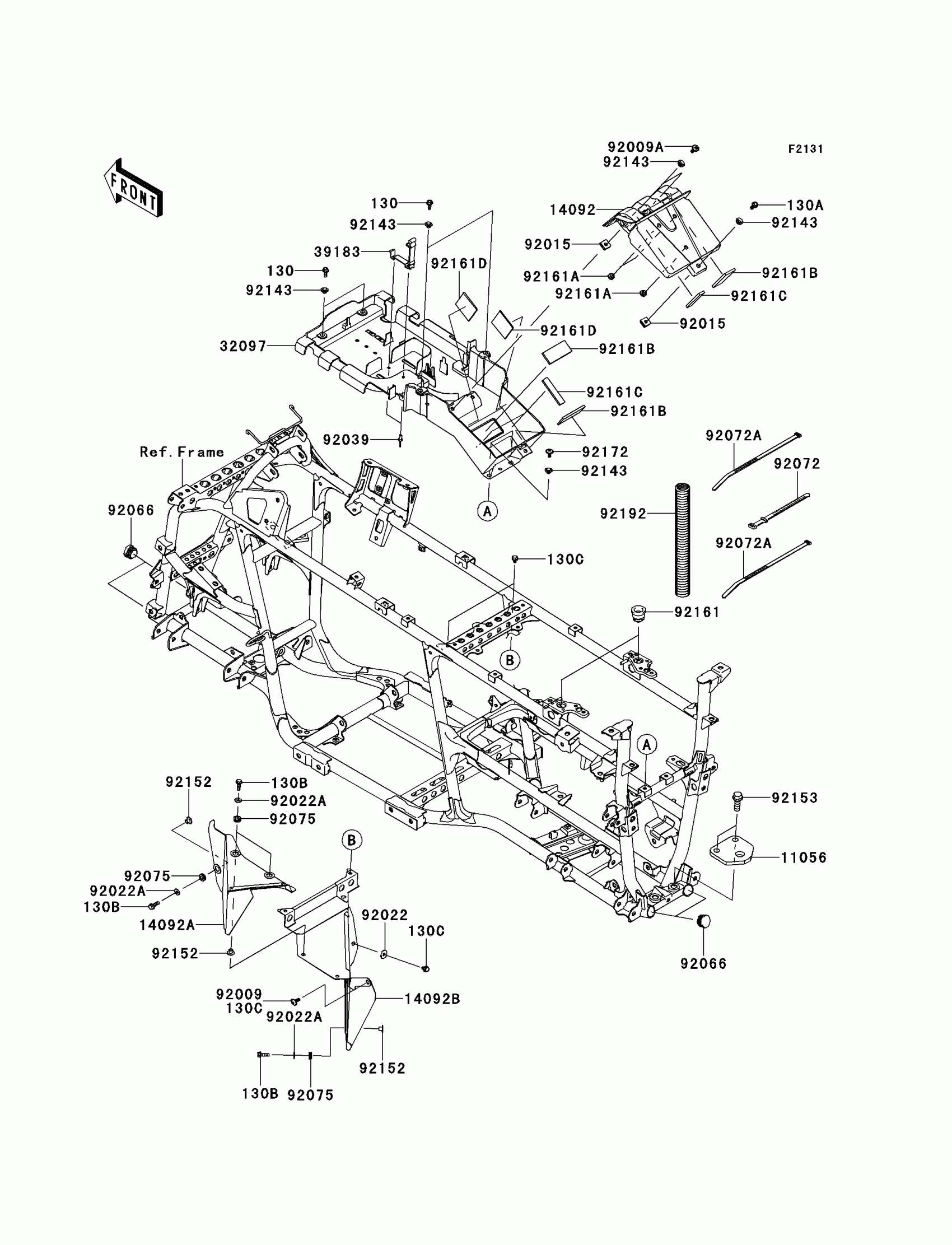

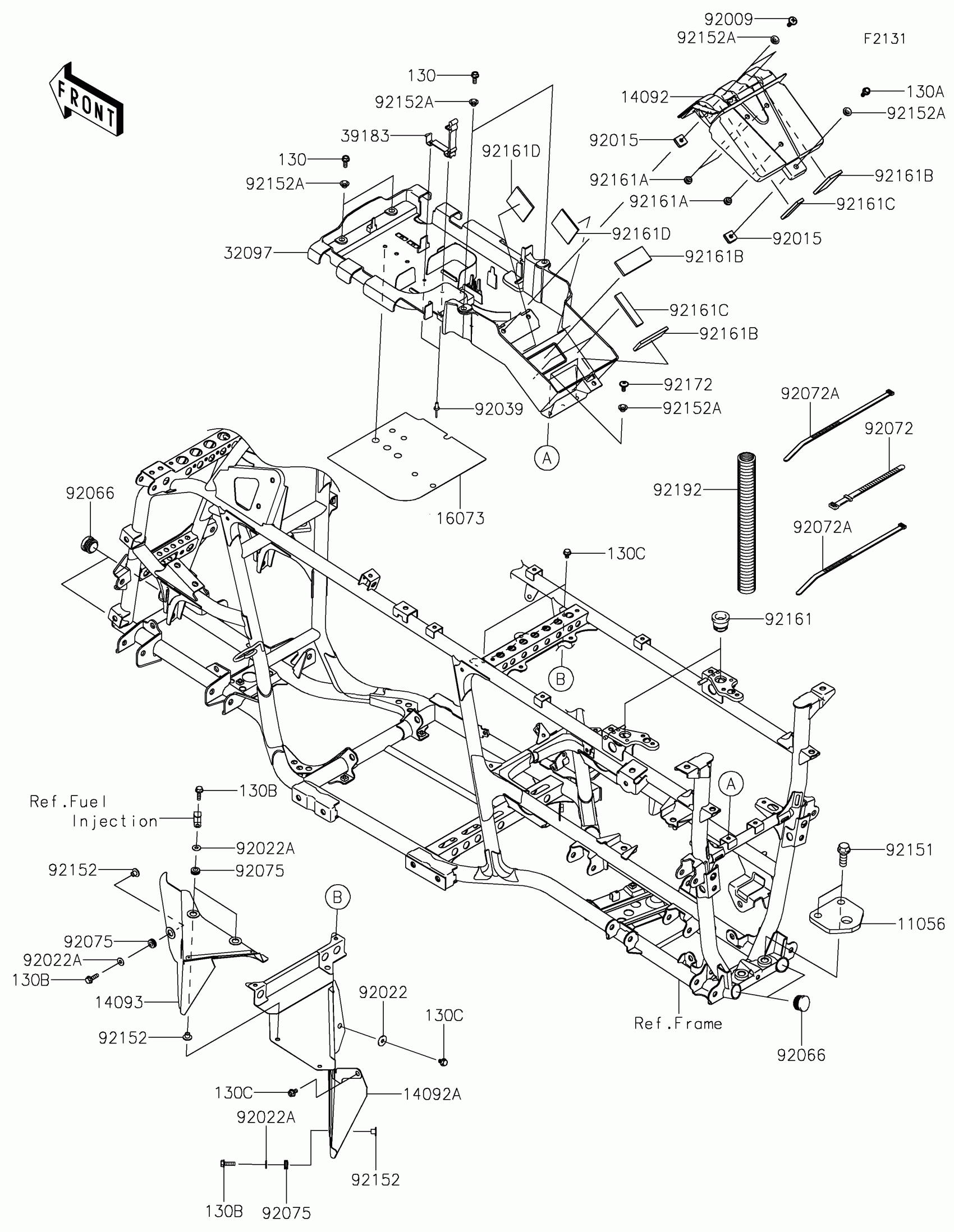

Kawasaki BRUTE FORCE® 750 4x4i EPS Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,6X18

130BA0618

$1.54

130B

BOLT-FLANGED,6X20

130BA0620

$1.74

130C

BOLT-FLANGED,6X10

130BD0610

$3.67

11056

BRACKET,TRAILER HITCH

11056-0299

$8.18

14092

COVER,BATTERY

14092-0189

$8.40

14092A

COVER,HEAT GUARD

14092-0236

$48.99

14092B

COVER,HEAT GUARD,FR

14092-0886

Unavailable

32097

CASE-BATTERY

32097-0558

Unavailable

39183

BAND-ASSY,TOOL BAG

39183-1065

$9.49

92009

SCREW,6X16

92009-1621

Unavailable

92009A

SCREW,6X18

92009-1663

Unavailable

92015

NUT,6MM

92015-1094

$8.58

92022

WASHER,6.5X20X1.6

92022-1804

$1.40

92022A

WASHER,6.2X15X1.2

92022-2373

$0.43

92039

RIVET,4.8MM

92039-3719

$6.22

92066

PLUG

92066-0036

$2.10

92072

BAND,L=186

92072-056

$5.00

92072A

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER

92075-2097

$2.06

92143

COLLAR

92143-1057

$5.00

92152

COLLAR,6.3X8.3X9.2

92152-0237

$5.65

92153

BOLT,FLANGED,12X35

92153-0847

$8.19

92161

DAMPER

92161-0048

$6.37

92161A

DAMPER

92161-1084

$2.67

92161B

DAMPER,30X70X5

92161-1127

$7.65

92161C

DAMPER,15X70X5

92161-1380

$3.02

92161D

DAMPER,50X50X3

92161-1386

$3.85

92172

SCREW,6X14

92172-0401

$2.55

92192

TUBE,CORRUGATED,25.5X32.25X300

92192-1042

$4.18
