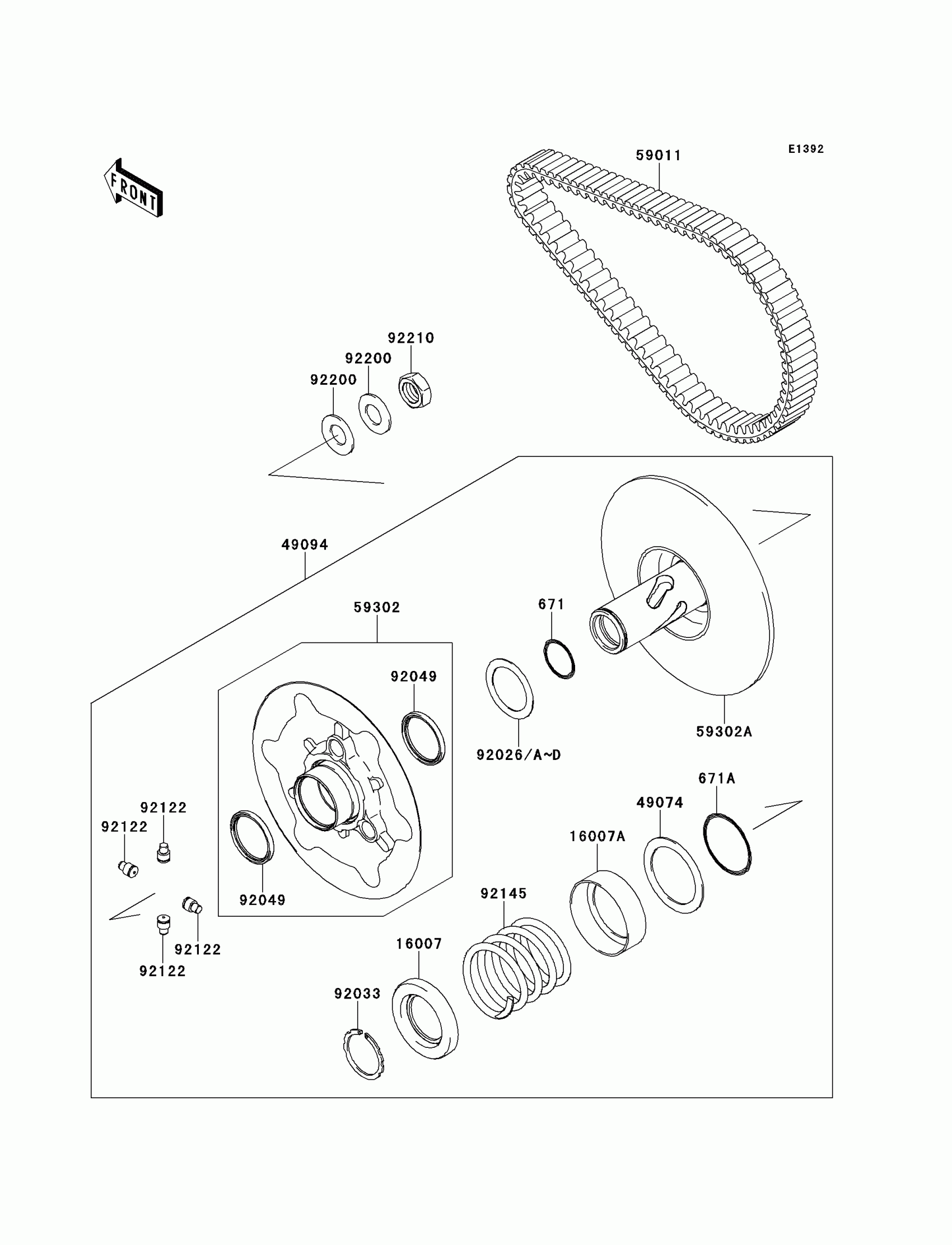

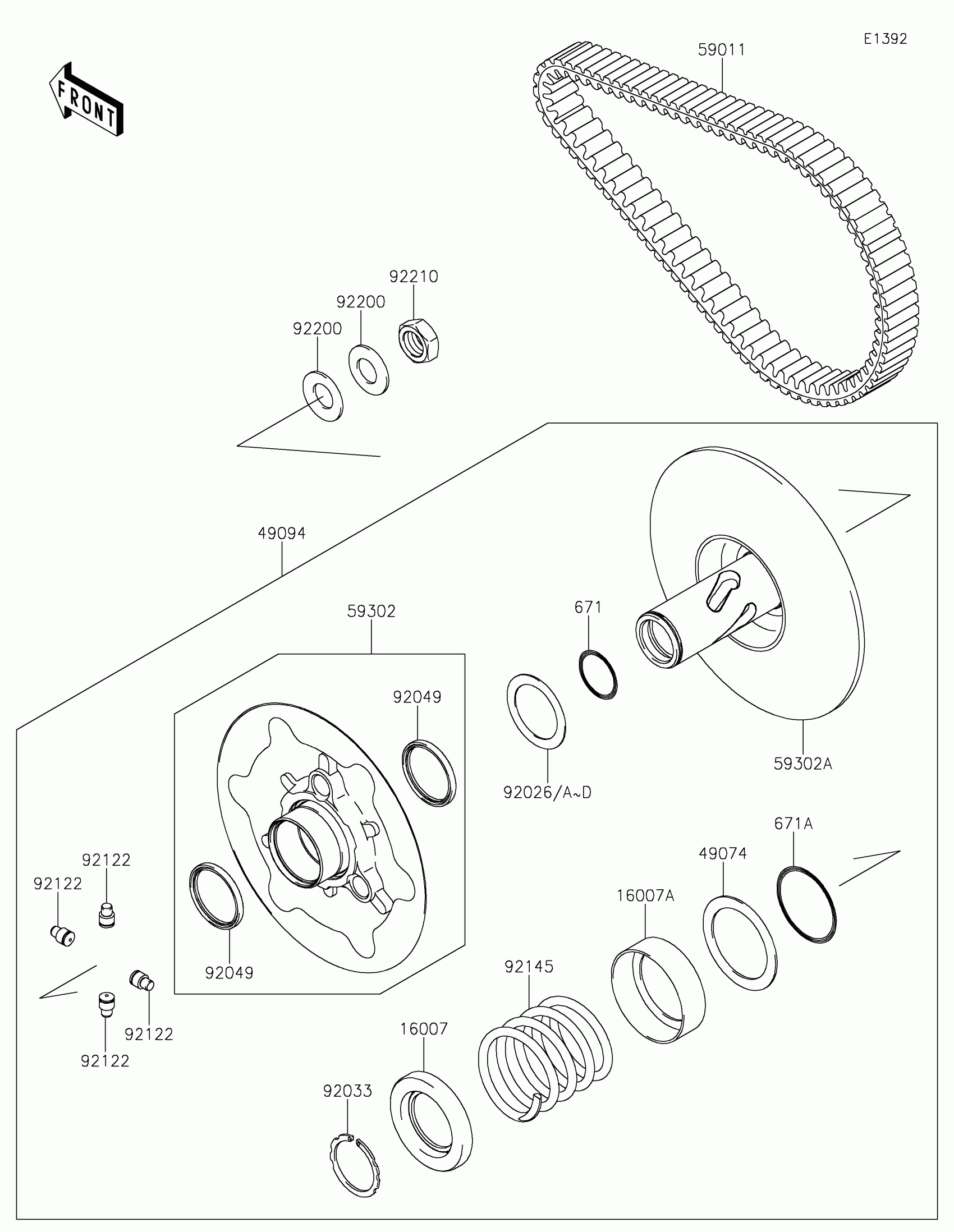

Kawasaki Brute Force 750 4x4i EPS Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING

16007-1203

$10.39

16007A

SEAT-SPRING,SHEAVE MOVABLE

16007-1221

$19.90

49074

PLATE-THRUST

49074-1055

$36.58

49094

CONVERTER-ASSY-DRIVEN

49094-0051

$668.83

59011

BELT,CVT

59011-0019

$119.97

59302

SHEAVE-COMP,MOVABLE

59302-0039

$337.75

59302A

SHEAVE-COMP,FIXED

59302-0077

$337.75

92026

SPACER,T=0.30

92026-0034

Unavailable

92026A

SPACER,T=1.00

92026-1565

Unavailable

92026B

SPACER,T=0.60

92026-1569

Unavailable

92026C

SPACER,T=1.40

92026-1570

Unavailable

92026D

SPACER,T=0.80

92026-1617

Unavailable

92033

RING-SNAP

92033-1317

$6.12

92049

SEAL-OIL

92049-1528

$16.41

92122

ROLLER

92122-1209

$7.65

92139

BUSHING

92139-0313

$26.13

92145

SPRING,PURPLE

92145-1499

$34.02

92200

WASHER

92200-1505

$5.00

92210

NUT,18MM

92210-1367

$8.36

671

O RING

671D2530

$5.79

671A

O RING

671D2550

$6.57
