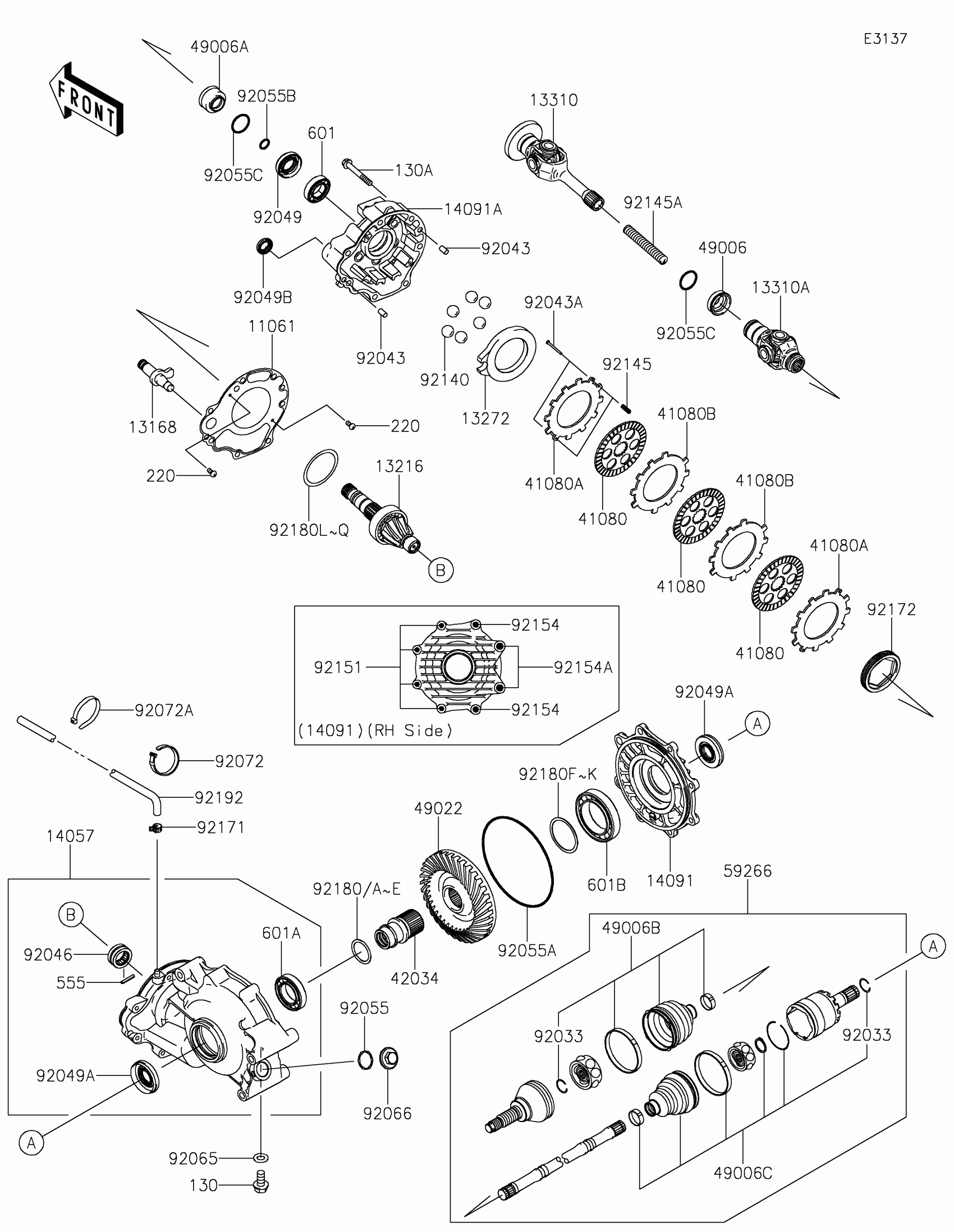

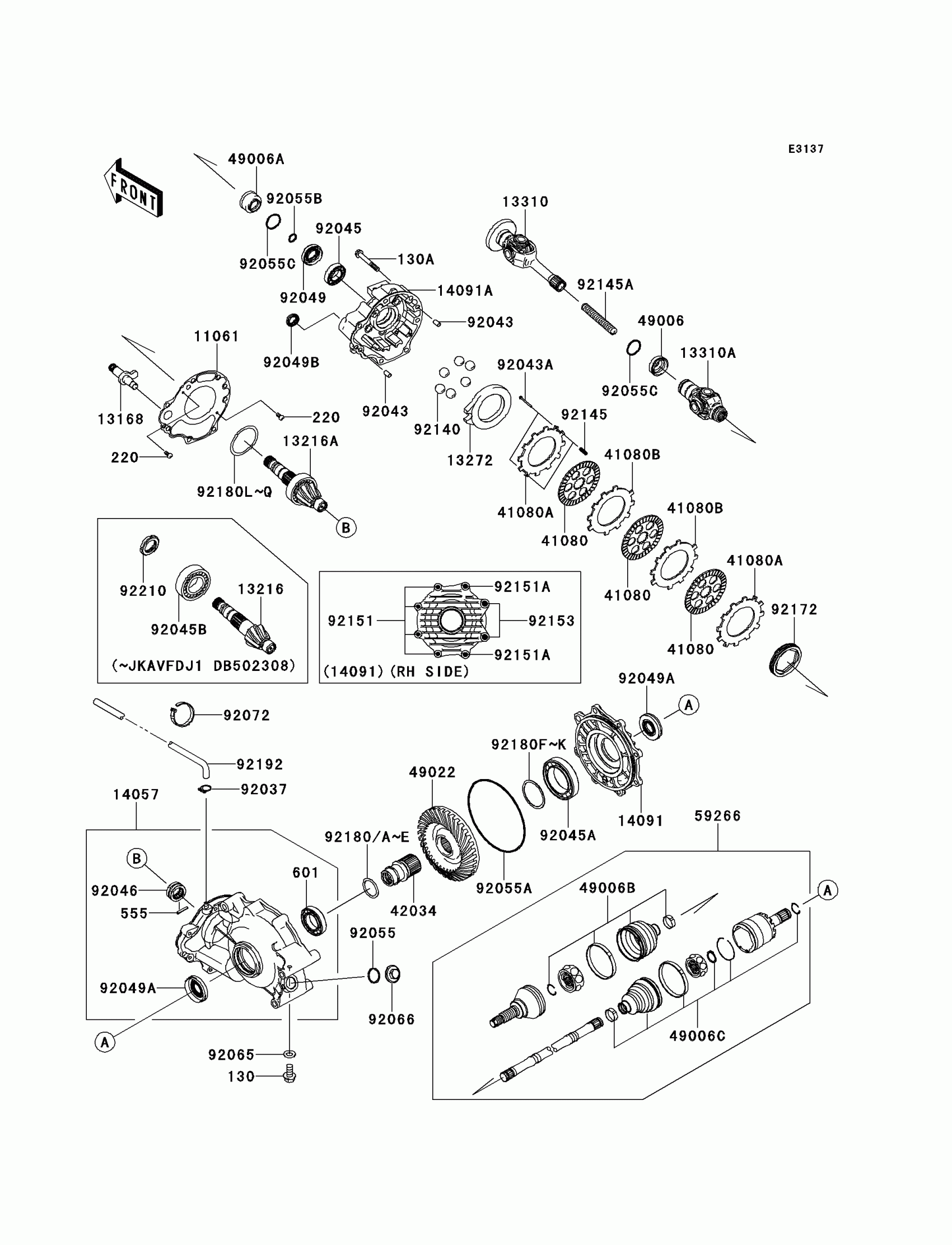

Kawasaki BRUTE FORCE® 750 4x4i EPS Drive Shaft-Rear Diagram

#

Description
Price

11061

GASKET,SOFT METAL

11061-0059

$29.32

13168

LEVER,BRAKE

13168-0042

$38.54

13216

GEAR-COMP

13216-0047

$156.26

13216A

GEAR-COMP

13216-0871

$228.09

13272

PLATE

13272-1083

$27.99

13310

SHAFT-ASSY,ENGINE SIDE

13310-0028

$227.79

13310A

SHAFT-ASSY,GEAR-ASSY SIDE

13310-0558

$227.79

14057

CASE-COMP-GEAR

14057-0010

$253.11

14091

COVER,RH

14091-0142

$69.22

14091A

COVER,FR

14091-0143

$111.61

41080

DISC,FRICTION

41080-1482

$49.80

41080A

DISC,PRESSURE

41080-1483

$18.80

41080B

DISC,SEPARATER

41080-1484

$18.80

42034

COUPLING

42034-0006

$78.98

49006

BOOT

49006-0007

$4.10

49006A

BOOT

49006-0008

$4.10

49006B

BOOT,UJ

49006-0064

$94.62

49006C

BOOT,DOJ

49006-0065

$94.62

49022

GEAR-BEVEL,35T

49022-0563

$432.87

59266

JOINT-BALL

59266-0023

$653.75

92037

CLAMP-HOSE

92037-1104

$1.45

92043

PIN,8X14

92043-1567

$2.26

92043A

PIN,3X35

92043-1617

$2.41

92045

BEARING-BALL,#6005

92045-0077

Unavailable

92045A

BEARING-BALL,55X90X18

92045-0078

Unavailable

92045B

BEARING-BALL,BX30-1C3 UR3

92045-0099

Unavailable

92046

BEARING-NEEDLE,AH502504A

92046-1280

$63.69

92049

SEAL-OIL,HTGY 24X45X9.5

92049-0028

$11.95

92049A

SEAL-OIL,SDD7 25X57X7 HS

92049-0029

$11.95

92049B

SEAL-OIL,TC17X28X6

92049-1537

$11.81

92055

RING-O

92055-0122

$3.90

92055A

RING-O,158.5X3.70

92055-1631

$12.92

92055B

RING-O,18X24X3

92055-1633

$6.18

92055C

RING-O,30X35X2.5

92055-1693

$6.18

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,8X60

130CA0860

$1.77

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

555

PIN-SPRING

555A0428

$2.30

601

BEARING-BALL,#6007

601A6007

$32.21

92065

GASKET,8.5X16X1

92065-023

$3.88

92066

PLUG

92066-1303

$12.96

92072

BAND,L=186

92072-056

$5.00

92140

BALL,D/O#12

92140-1064

$2.39

92145

SPRING,RR BRAKE

92145-1301

$1.84

92145A

SPRING,PROPELLER SHAFT

92145-1304

$3.23

92151

BOLT,8X30

92151-1908

$2.80

92151A

BOLT,10X35

92151-1909

$3.26

92153

BOLT,12X35

92153-0311

$4.18

92172

SCREW,SET,76X12

92172-0718

$70.34

92180

SHIM,35.2X44.0X1.2

92180-0161

Unavailable

92180A

SHIM,35.2X44.0X1.0

92180-0162

Unavailable

92180B

SHIM,35.2X44.0X0.8

92180-0163

Unavailable

92180C

SHIM,35.2X44.0X0.5

92180-0164

Unavailable

92180D

SHIM,35.2X44.0X0.2

92180-0165

Unavailable

92180E

SHIM,35.2X44.0X0.15

92180-0166

Unavailable

92180F

SHIM,55X64X0.15

92180-1417

Unavailable

92180G

SHIM,55X64X0.20

92180-1418

Unavailable

92180H

SHIM,55X64X0.50

92180-1419

Unavailable

92180I

SHIM,55X64X0.80

92180-1420

Unavailable

92180J

SHIM,55X64X1.00

92180-1421

Unavailable

92180K

SHIM,55X64X1.20

92180-1422

Unavailable

92180L

SHIM,60X72X0.15

92180-1423

Unavailable

92180M

SHIM,60X72X0.20

92180-1424

Unavailable

92180N

SHIM,60X72X0.50

92180-1425

Unavailable

92180O

SHIM,60X72X0.80

92180-1426

Unavailable

92180P

SHIM,60X72X1.00

92180-1427

Unavailable

92180Q

SHIM,60X72X1.20

92180-1428

Unavailable

92192

TUBE,BREATHER,L=1680MM

92192-0210

$18.52

92210

NUT,30MM

92210-1294

$40.82
