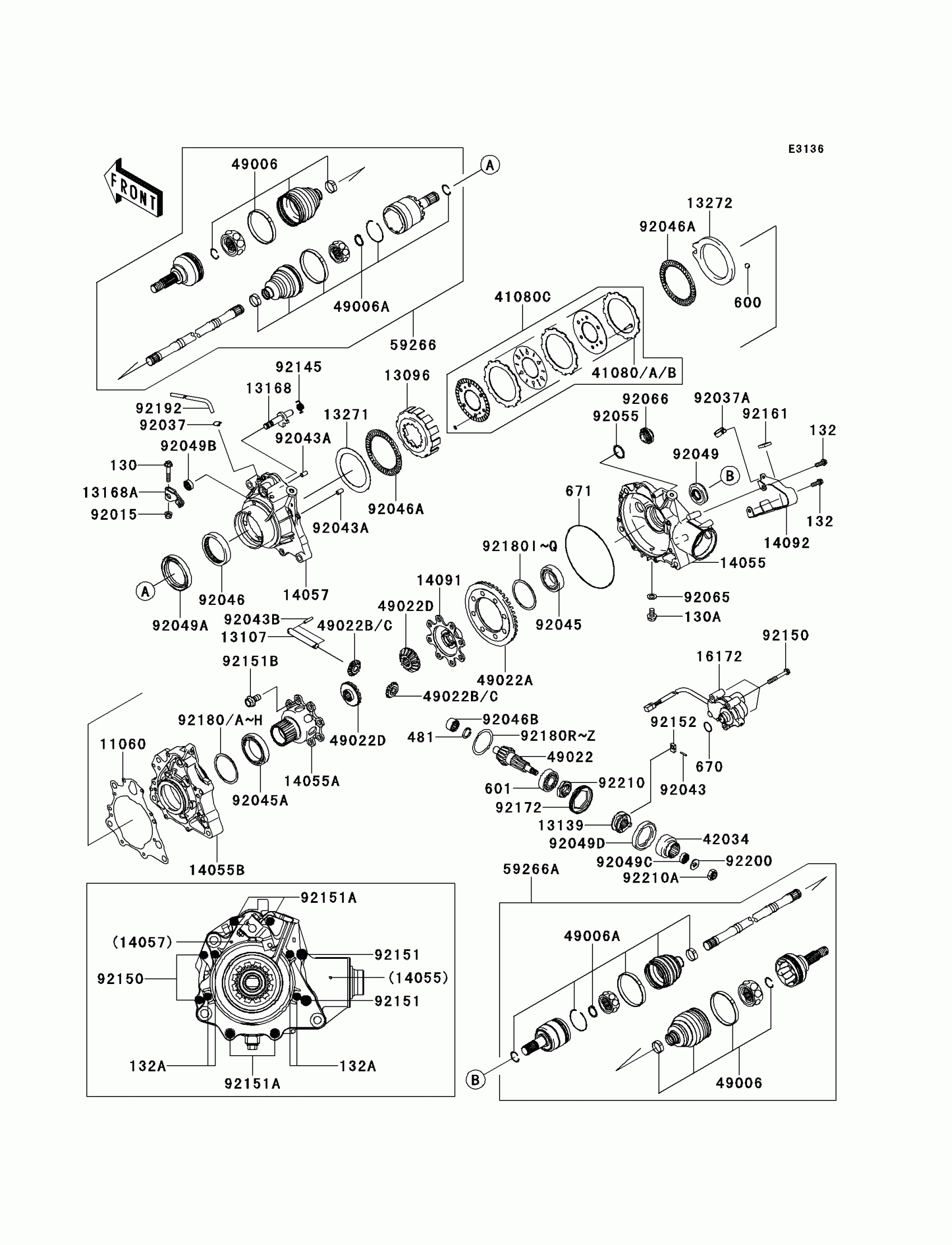

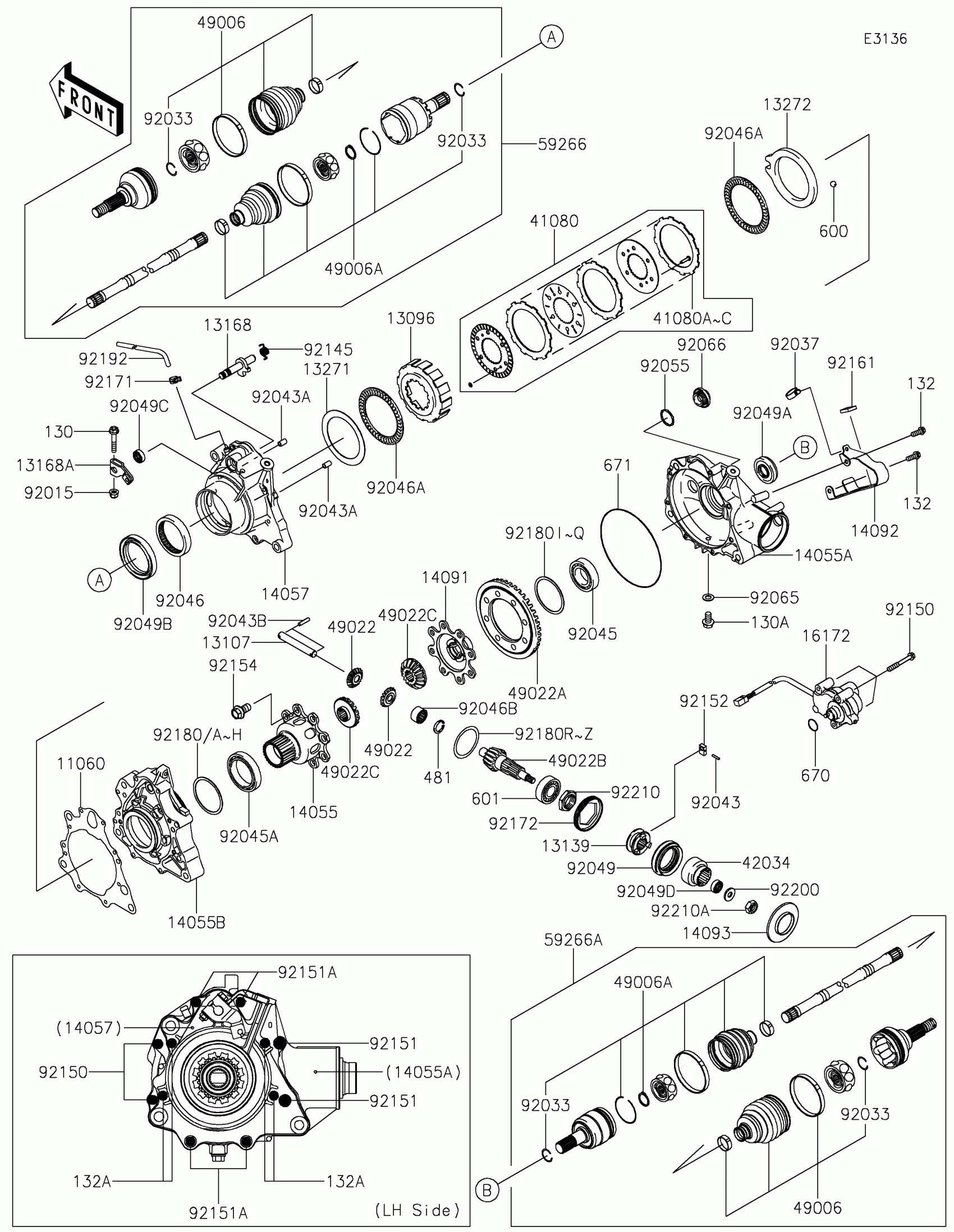

Kawasaki Brute Force 750 4x4i EPS Drive Shaft-Front Diagram
#
11060
GASKET,DIFF CASE
11060-1982
$29.99
13096
HOUSING-CLUTCH,DISC
13096-1163
$45.60
13107
SHAFT,CROSS
13107-0923
$17.27
13139
SHIFTER,DIFFERENTIAL
13139-1097
$102.66
13168
LEVER,DIFF
13168-1724
$41.94
13168A
LEVER,DIFFERENTIAL
13168-1725
$19.76
13271
PLATE,DISC
13271-1503
$15.39
13272
PLATE,CAM
13272-0848
$51.12
14055
CASE-GEAR,BEVEL,LH
14055-0601
$116.89
14055A
CASE-GEAR
14055-0627
$124.44
14055B
CASE-GEAR,CENTER
14055-0629
$142.53
14057
CASE-COMP-GEAR,DIFF,LH
14057-0014
$128.53
14091
COVER,BEVEL,RH
14091-1197
$64.18
14092
COVER
14092-0202
$12.46
14093
COVER,COUPLING
14093-0020
$6.68
16172
ACTUATOR
16172-0039
$421.13
41080
DISC ASSY,DIFFERENTIAL LOCK
41080-0609
$261.31
41080A
DISC,T=1.20
41080-1499
Unavailable
41080B
DISC,T=1.80
41080-1500
Unavailable
41080C
DISC,T=2.40
41080-1501
Unavailable
42034
COUPLING
42034-0721
$122.09
49006
BOOT,UJ
49006-0073
$94.62
49006A
BOOT,DOJ
49006-0074
$94.62
49022
GEAR-BEVEL,10T
49022-0575
$155.00
49022A
GEAR-BEVEL,35T
49022-0610
$432.87
49022B
GEAR-BEVEL,8T
49022-0611
$432.33
49022C
GEAR-BEVEL,16T
49022-1178
$155.92
59266
JOINT-BALL
59266-0024
$653.75
59266A
JOINT-BALL
59266-0025
$653.75
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92033
RING-SNAP
92033-1298
$2.55
92037
CLAMP,HOSE
92037-1827
$7.45
92043
PIN,2X10.5
92043-0083
$2.61
92043A
PIN,6.2X8X14
92043-1263
$0.43
92043B
PIN
92043-1575
$2.46
92045
BEARING-BALL,60/32
92045-1393
$27.70
92045A
BEARING-BALL,6910
92045-1394
$50.18
92046
BEARING-NEEDLE
92046-0028
$52.97
92046A
BEARING-NEEDLE,AK1116
92046-1286
$54.92
92046B
BEARING-NEEDLE,AJ501515W
92046-1297
$36.04
92049
SEAL-OIL,TC9Y 48X65X9X15.3
92049-0754
$17.91
92049A
SEAL-OIL,SDD7 22X48X7HS
92049-1534
$18.37
92049B
SEAL-OIL,HTCY 62X81X10.5
92049-1536
$21.99
92049C
SEAL-OIL,TC 12X22X7
92049-1550
$5.00
92049D
SEAL-OIL,KB 13X19X13
92049-1572
$9.43
92055
RING-O
92055-0122
$3.90
92065
GASKET,8.5X16X1
92065-023
$3.88
92066
PLUG
92066-1303
$12.96
92145
SPRING,DIFF RETURN
92145-1344
$3.70
92150
BOLT,6X45
92150-1884
Unavailable
92151
BOLT,8X50
92151-1794
$2.80
92151A
BOLT,6X60
92151-1795
$2.41
92152
COLLAR
92152-1349
$40.82
92154
BOLT,10X19.5
92154-4340
$3.26
92161
DAMPER,20X20X5
92161-1387
$3.02
92171
CLAMP
92171-0515
$6.38
92172
SCREW,SET,64X10
92172-0719
$34.61
92180
SHIM,62X71X0.15
92180-1390
Unavailable
92180A
SHIM,62X71X0.20
92180-1391
Unavailable
92180B
SHIM,62X71X0.50
92180-1392
Unavailable
92180C
SHIM,62X71X0.70
92180-1393
Unavailable
92180D
SHIM,62X71X0.80
92180-1394
Unavailable
92180E
SHIM,62X71X0.90
92180-1395
Unavailable
92180F
SHIM,62X71X1.00
92180-1396
Unavailable
92180G
SHIM,62X71X1.10
92180-1397
Unavailable
92180H
SHIM,62X71X1.20
92180-1398
Unavailable
92180I
SHIM,32X42X0.15
92180-1399
Unavailable
92180J
SHIM,32X42X0.20
92180-1400
Unavailable
92180K
SHIM,32X42X0.50
92180-1401
Unavailable
92180L
SHIM,32X42X0.70
92180-1402
Unavailable
92180M
SHIM,32X42X0.80
92180-1403
Unavailable
92180N
SHIM,32X42X0.90
92180-1404
Unavailable
92180O
SHIM,32X42X1.00
92180-1405
Unavailable
92180P
SHIM,32X42X1.10
92180-1406
Unavailable
92180Q
SHIM,32X42X1.20
92180-1407
Unavailable
92180R
SHIM,50X61X0.15
92180-1408
Unavailable
92180S
SHIM,50X61X0.20
92180-1409
Unavailable
92180T
SHIM,50X61X0.50
92180-1410
Unavailable
92180U
SHIM,50X61X0.70
92180-1411
Unavailable
92180V
SHIM,50X61X0.80
92180-1412
Unavailable
92180W
SHIM,50X61X0.90
92180-1413
Unavailable
92180X
SHIM,50X61X1.00
92180-1414
Unavailable
92180Y
SHIM,50X61X1.10
92180-1415
Unavailable
92180Z
SHIM,50X61X1.20
92180-1416
Unavailable
92192
TUBE,7X12X760
92192-0716
$25.81
92200
WASHER,10X24X2.5
92200-1635
$4.18
92210
NUT,25MM
92210-1225
$15.39
92210A
NUT,LOCK,10MM
92210-1351
$7.65
130
BOLT-FLANGED,6X35
130BA0635
$0.94
130A
BOLT-FLANGED,8X14
130BA0814
$2.16
132
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
132A
BOLT-FLANGED-SMALL,6X30
132BA0630
$2.65
481
CIRCLIP-TYPE-C,25MM
481J2500
$3.07
600
BALL-STEEL,11/32"
600A1100
$0.64
601
BEARING-BALL,#6305
601A6305
$18.63
670
O RING
670D3022
$2.80
671
O RING
671D25145
$20.09
