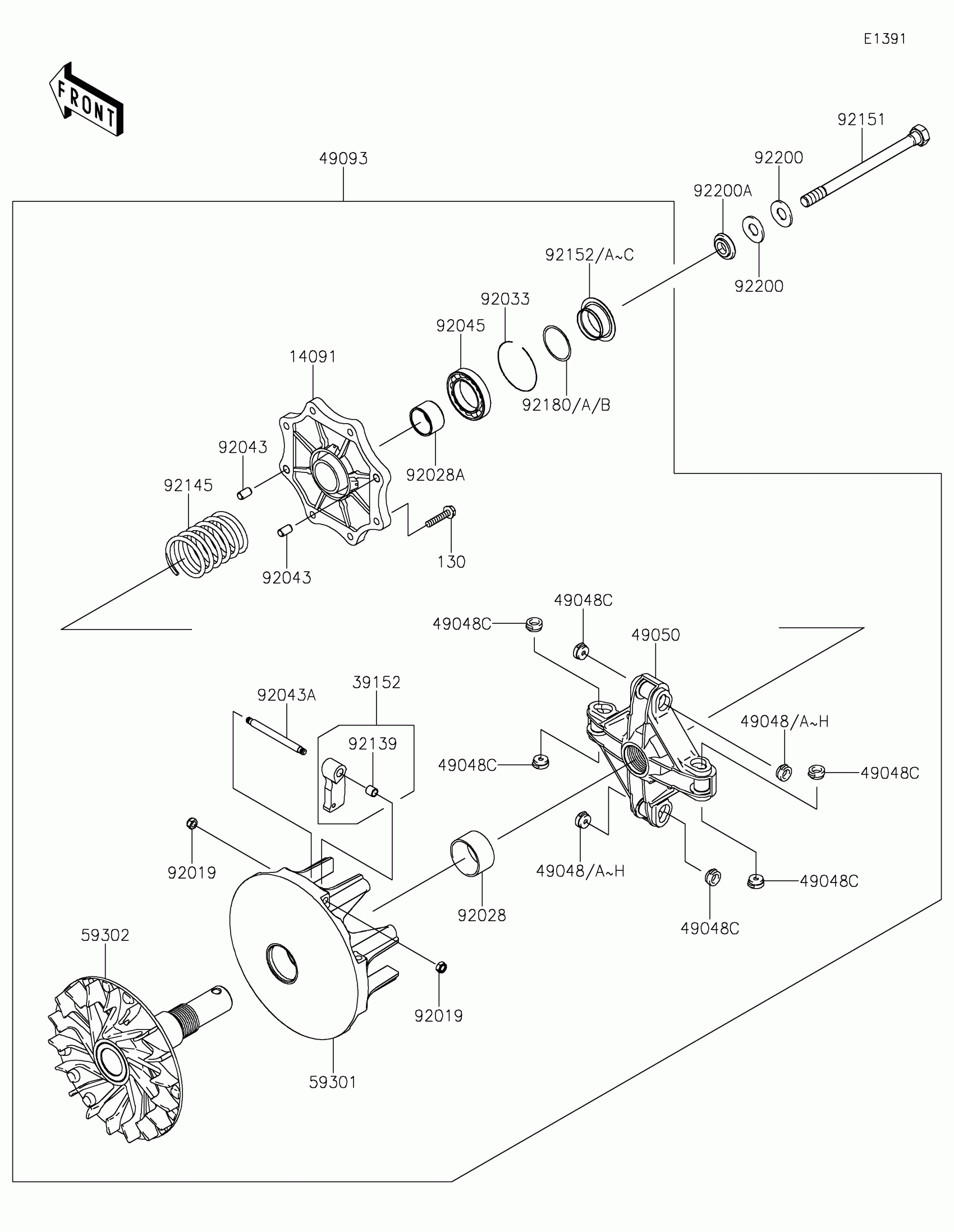

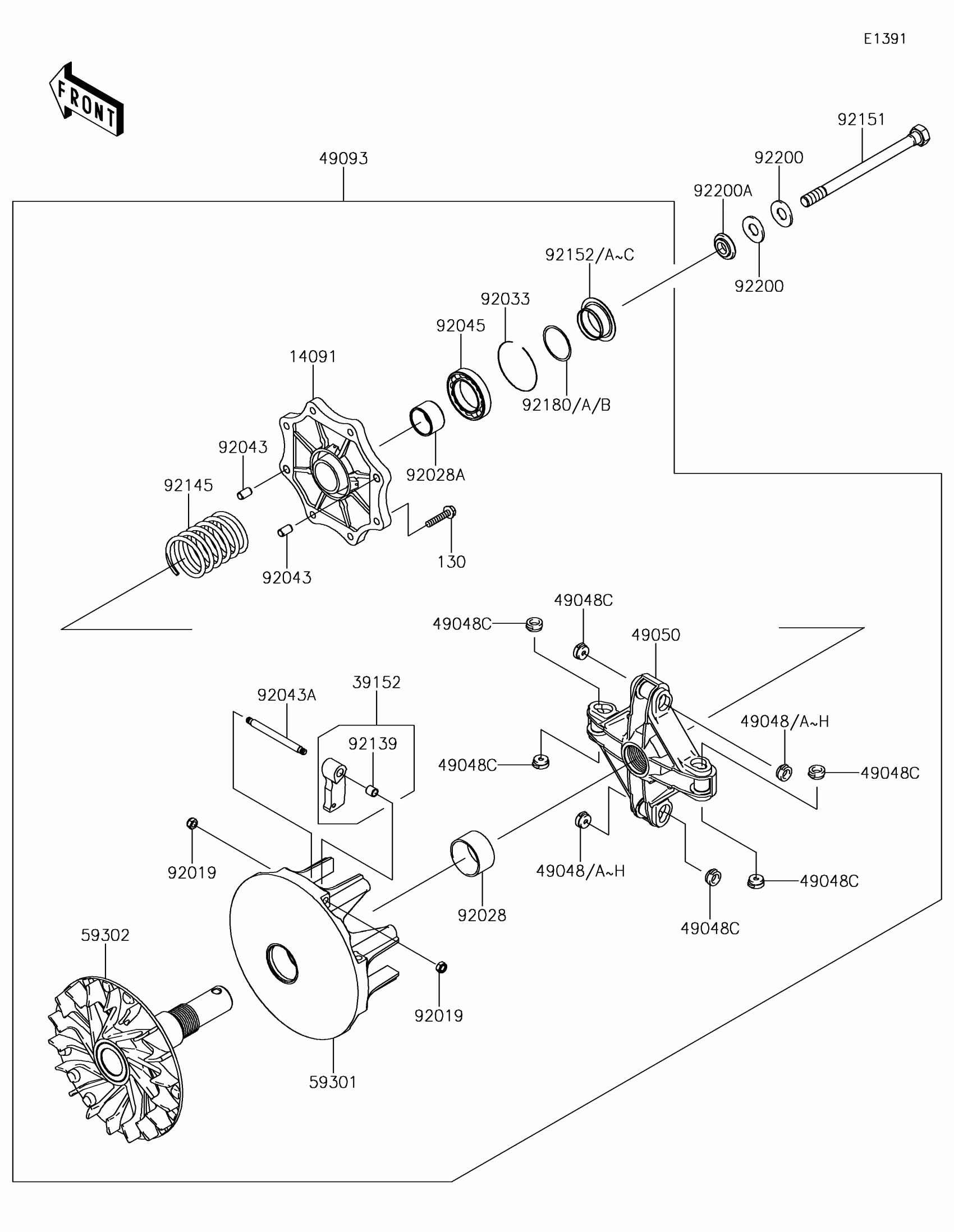

Kawasaki Brute Force 750 4x4i EPS Drive Converter Diagram
#
14091
COVER
14091-1804
$54.11
39152
WEIGHT-RAMP
39152-0034
$55.60
49048
SHOE,T=7.2
49048-1087
Unavailable
49048A
SHOE,T=7.3
49048-1088
Unavailable
49048B
SHOE,T=7.4
49048-1089
Unavailable
49048C
SHOE,T=7.5
49048-1090
$14.82
49048D
SHOE,T=7.6
49048-1091
Unavailable
49048E
SHOE,T=7.7
49048-1092
Unavailable
49048F
SHOE,T=7.8
49048-1093
Unavailable
49048G
SHOE,T=7.9
49048-1094
Unavailable
49048H
SHOE,T=8.0
49048-1095
Unavailable
49050
SPIDER
49050-0010
$139.98
49093
CONVERTER-ASSY-DRIVE
49093-0040
$1,004.32
59301
SHEAVE-MOVABLE
59301-0007
$235.19
59302
SHEAVE-COMP,FIXED
59302-0078
$337.75
92019
NUT,LOCK,6MM
92019-008
$4.26
92028
BUSHING
92028-1975
$12.80
92028A
BUSHING
92028-1980
$7.90
92033
RING-SNAP
92033-0063
$3.32
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN
92043-1688
$13.60
92045
BEARING-BALL,6907DDG8C4 S6NS
92045-1453
$33.65
92139
BUSHING
92139-0215
$10.21
92145
SPRING
92145-0794
$24.93
92151
BOLT,12X165
92151-1393
$24.22
92152
COLLAR,T=1.6
92152-1436
Unavailable
92152A
COLLAR,T=3.0
92152-1437
Unavailable
92152B
COLLAR,T=2.3
92152-1438
Unavailable
92152C
COLLAR,T=3.7
92152-1440
Unavailable
92180
SHIM,35X40X0.10
92180-1378
Unavailable
92180A
SHIM,35X40X0.20
92180-1379
Unavailable
92180B
SHIM,35X40X0.30
92180-1380
Unavailable
92200
WASHER,SPRING
92200-1504
$4.18
92200A
WASHER
92200-1634
$9.07
130
BOLT-FLANGED,6X30
130CA0630
$2.49
