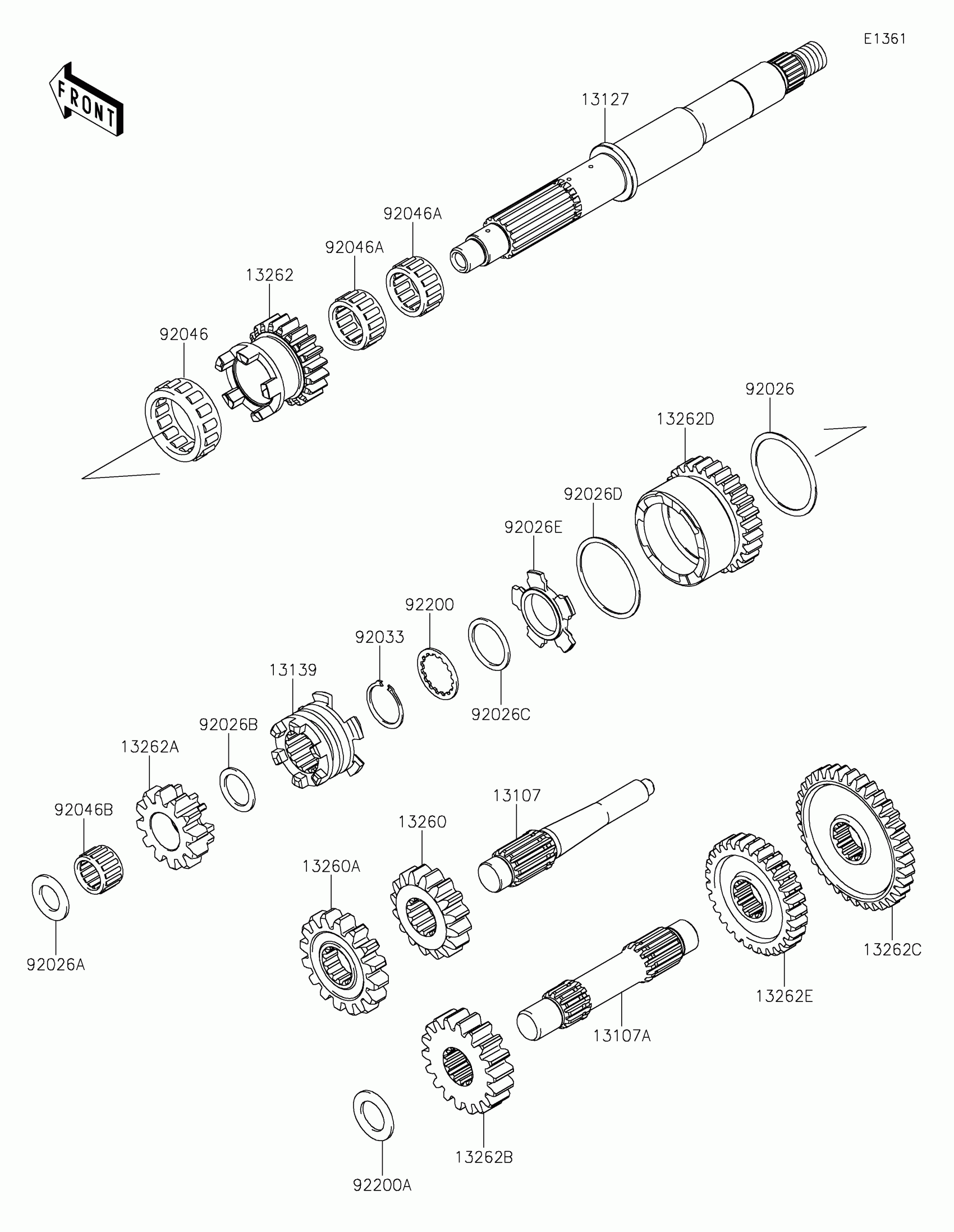

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Transmission Diagram

Description

Price

13107

SHAFT,REVERSE,IDLE

13107-0754

$238.76

13107A

SHAFT,COUNTER

13107-0755

$132.27

13127

SHAFT-TRANSMISSION INPUT

13127-0053

$277.07

13139

SHIFTER

13139-0626

$79.18

13260

GEAR,OUTPUT REVERSE,16T

13260-1872

$118.13

13260A

GEAR,DRIVEN REVERSE,16T

13260-1873

$118.13

13262

GEAR,INPUT LOW,20T

13262-0234

$136.85

13262A

GEAR,INPUT REVERSE,12T

13262-0235

$115.65

13262B

GEAR,OUTPUT DRIVE,18T

13262-0432

Unavailable

13262C

GEAR,DRIVEN LOW,36T

13262-0794

$118.99

13262D

GEAR,INPUT HI,27T

13262-0837

$137.01

13262E

GEAR,DRIVEN HI,29T

13262-0838

$118.99

92026

SPACER,48.2X56X1.0

92026-0163

$3.68

92026A

SPACER,17.3X30X2.0

92026-1415

$7.90

92026B

SPACER,21.2X29X1.6

92026-1568

$7.81

92026C

SPACER,28.2X34.5X1.6

92026-1587

$3.19

92026D

SPACER,48.2X54.3X1.0

92026-1599

$4.65

92026E

SPACER,HI&LOW

92026-1600

$45.62

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.54

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

$32.20

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

$18.83

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

$16.11

92200

WASHER,28.5X34.0X1.5

92200-1240

$7.83

92200A

WASHER,20.3X33X2.0

92200-1351

$1.89
