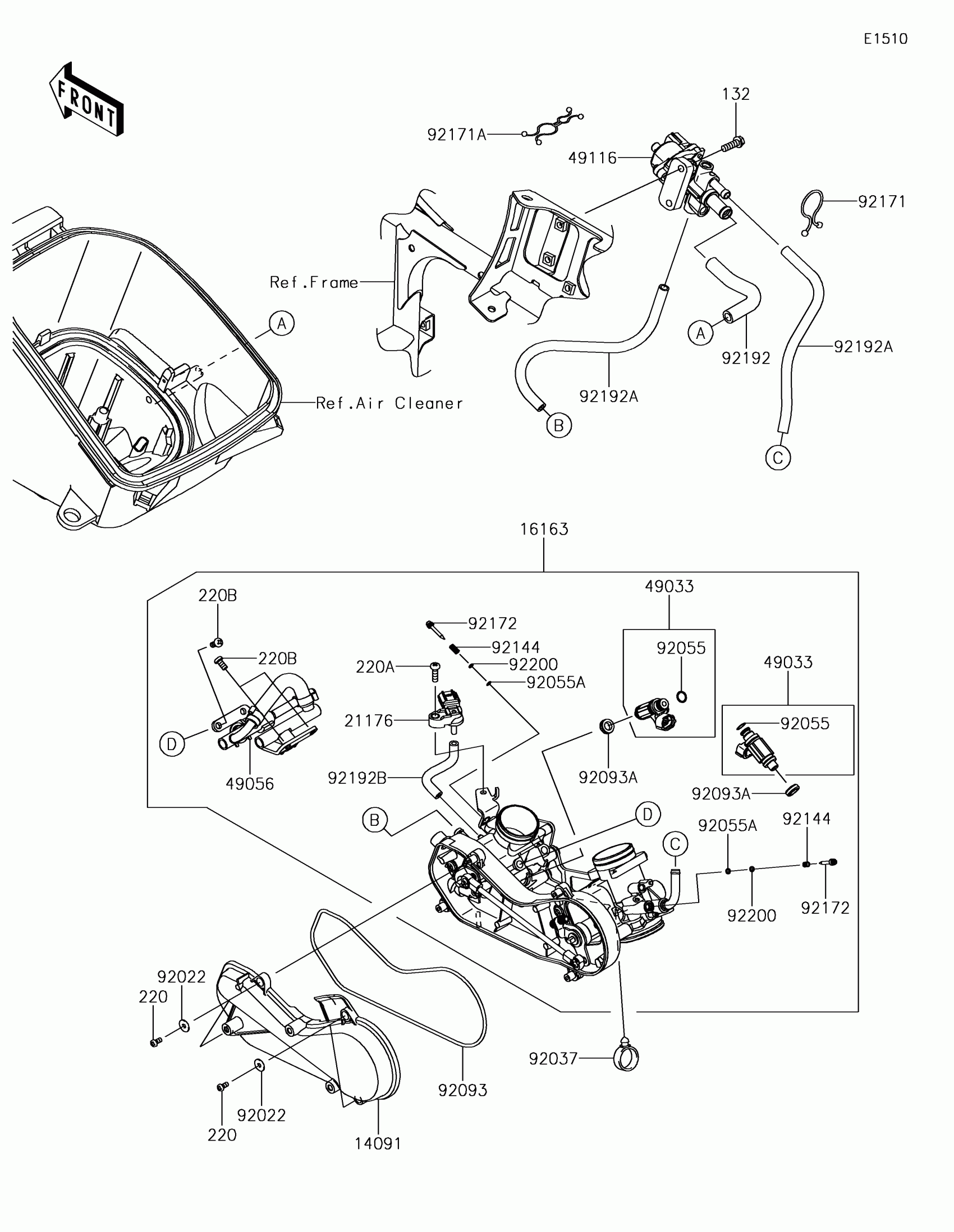

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Throttle Diagram

Description

Price

14091

COVER,THROTTLE LINK

14091-1731

$22.78

16163

THROTTLE-ASSY

16163-0792

$891.59

21176

SENSOR,PRESSURE

21176-0906

$222.28

49033

NOZZLE-INJECTION

49033-0011

$92.32

49056

PIPE-INJECTION

49056-0034

$363.81

49116

VALVE-ASSY,ISC

49116-0021

$197.51

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,HOSE

92037-1827

$7.45

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O,AIR SCREW

92055-1658

$6.00

92093

SEAL

92093-0082

$5.94

92093A

SEAL

92093-0127

$10.56

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92171

CLAMP

92171-1185

$2.46

92171A

CLAMP

92171-1438

$3.73

92172

SCREW

92172-0156

$15.20

92192

TUBE

92192-0437

$7.53

92192A

TUBE

92192-0439

$7.36

92192B

TUBE

92192-0914

$12.46

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,5X16

220AA0516

$2.06

220B

SCREW-PAN-CROSS,6X12

220D0612

$1.12
