Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

Unavailable

11012

CAP

11012-1084

$1.31

11060

GASKET,WATER PUMP

11060-1964

$6.03

14037

SCREEN

14037-0742

$77.42

16142

COVER-PUMP,WATER

16142-0069

$65.17

16160

BODY,THERMOSTAT,LWR

16160-0189

$72.74

16160A

BODY,THERMOSTAT,UPP

16160-0225

$68.51

21008

BREAKER,FAN MOTOR

21008-0555

$9.56

39061

RADIATOR-ASSY

39061-0589

$443.17

39062

HOSE-COOLING,FR HEAD-THERMO

39062-0316

$11.58

39062A

HOSE-COOLING,5X9X800

39062-0321

$7.44

39062B

HOSE-COOLING,RADIATOR-PUMP

39062-0587

$23.85

39062C

HOSE-COOLING,THERMO-RADIATOR

39062-0630

$35.68

39062D

HOSE-COOLING,5X9X410

39062-0631

$2.59

43078

RESERVOIR

43078-0070

$39.99

49054

THERMOSTAT

49054-1055

$49.29

49063

SEAL-MECHANICAL

49063-1055

$18.61

49085

CAP-ASSY-PRESSURE

49085-0005

$41.25

59256

IMPELLER

59256-1069

$19.82

59502

FAN-ASSY

59502-0554

$382.64

92009

SCREW,6X16

92009-1694

$3.12

92022

WASHER,6.2X11X1

92022-304

$2.92

92037

CLAMP,TUBE

92037-1461

$3.08

92037A

CLAMP,COOLING HOSE

92037-1589

$14.60

92055

RING-O,22.1X2.4

92055-1081

$3.72

92055A

RING-O,44.7X2.4

92055-1279

$5.84

92071

GROMMET

92071-1115

$4.34

92072

BAND,L=149

92072-031

$3.97

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

92154

BOLT,6X12

92154-0741

$4.61

92160

DAMPER

92160-1007

$4.37

92171

CLAMP,COOLING HOSE

92171-0060

$3.50

92171A

CLAMP

92171-0179

$6.51

92171B

CLAMP,L=60

92171-0652

$2.15

92210

NUT

92210-0754

$1.71

92210A

NUT

92210-1323

$3.33

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.05

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132C

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.17

132D

BOLT-FLANGED-SMALL,6X50

132BA0650

$2.93

132E

BOLT-FLANGED-SMALL,6X90

132BA0690

$2.63

132F

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.73

224

SCREW-PAN-WP-CROS,6X14

224AB0614

$3.28

551

PIN-DOWEL,4X8

551A0408

$0.80

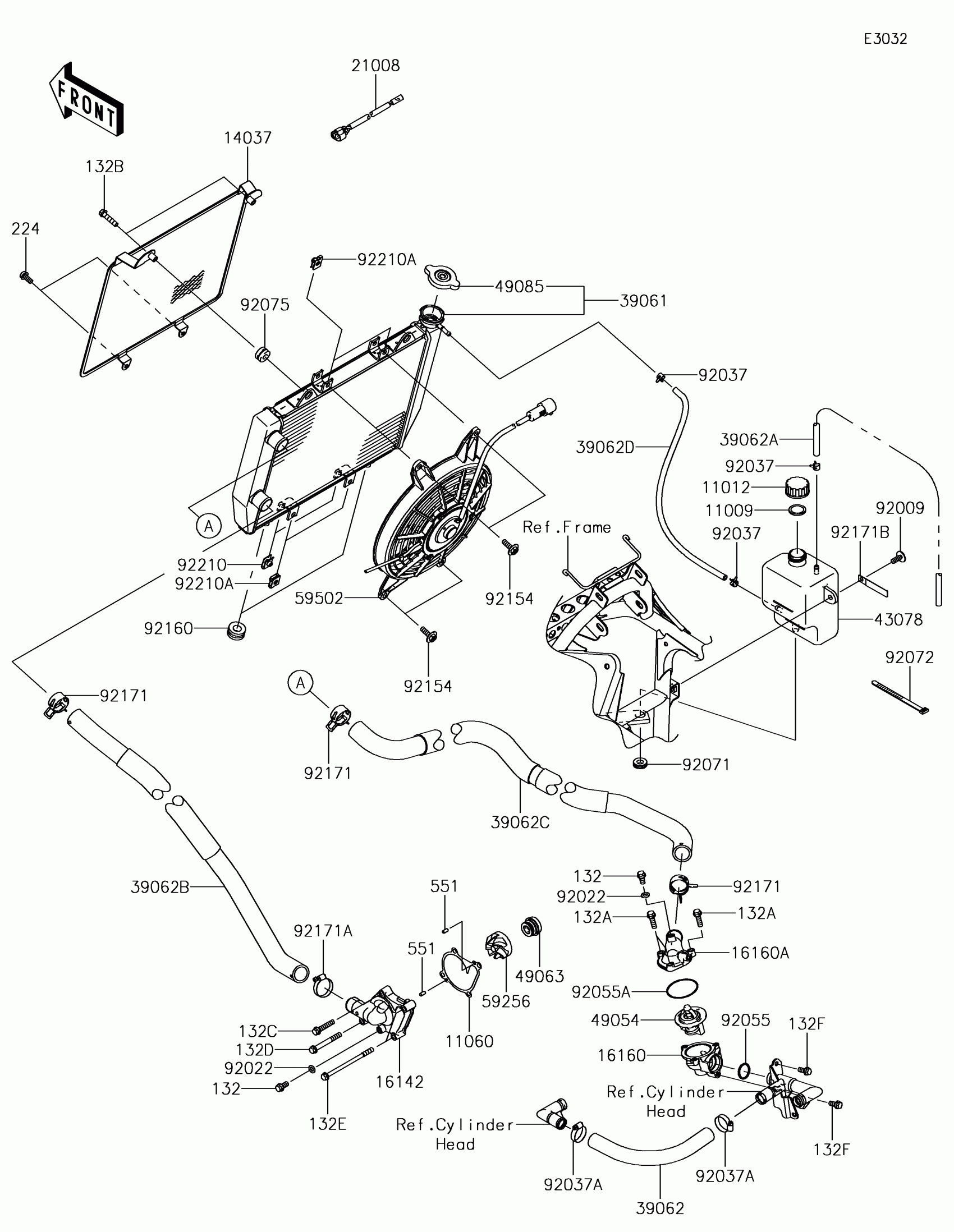

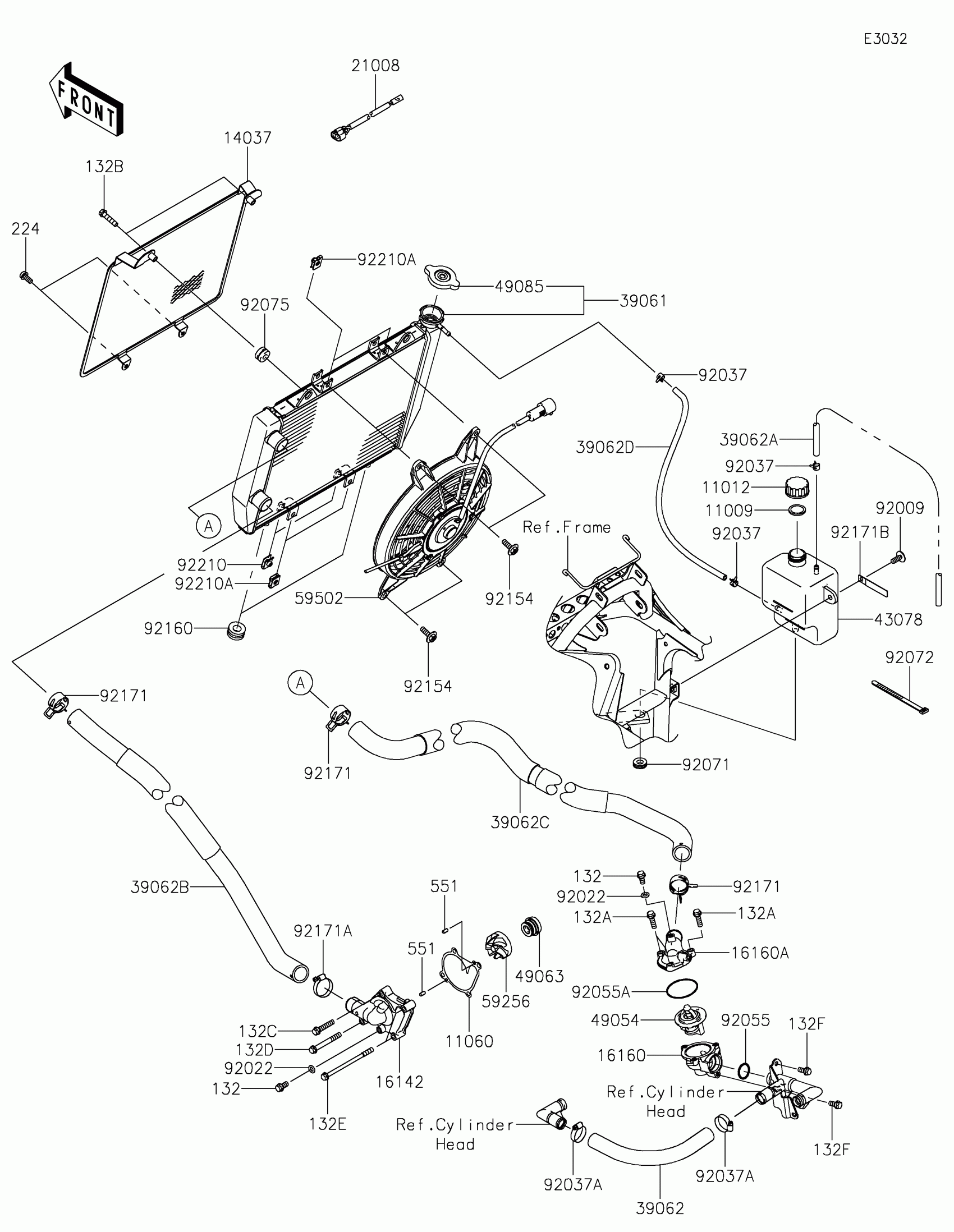

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Radiator Diagram

GASKET,RESERVOIR TANK CAP

CAP

GASKET,WATER PUMP

SCREEN

COVER-PUMP,WATER

BODY,THERMOSTAT,LWR

BODY,THERMOSTAT,UPP

BREAKER,FAN MOTOR

RADIATOR-ASSY

HOSE-COOLING,FR HEAD-THERMO

HOSE-COOLING,5X9X800

HOSE-COOLING,RADIATOR-PUMP

HOSE-COOLING,THERMO-RADIATOR

HOSE-COOLING,5X9X410

RESERVOIR

THERMOSTAT

SEAL-MECHANICAL

CAP-ASSY-PRESSURE

IMPELLER

FAN-ASSY

SCREW,6X16

WASHER,6.2X11X1

CLAMP,TUBE

CLAMP,COOLING HOSE

RING-O,22.1X2.4

RING-O,44.7X2.4

GROMMET

BAND,L=149

DAMPER RUBBER,RR FENR

BOLT,6X12

DAMPER

CLAMP,COOLING HOSE

CLAMP

CLAMP,L=60

NUT

NUT

BOLT-FLANGED-SMALL,6X12

BOLT-FLANGED-SMALL,6X20

BOLT-FLANGED-SMALL,6X25

BOLT-FLANGED-SMALL,6X30

BOLT-FLANGED-SMALL,6X50

BOLT-FLANGED-SMALL,6X90

BOLT-FLANGED-SMALL,6X12

SCREW-PAN-WP-CROS,6X14

PIN-DOWEL,4X8
