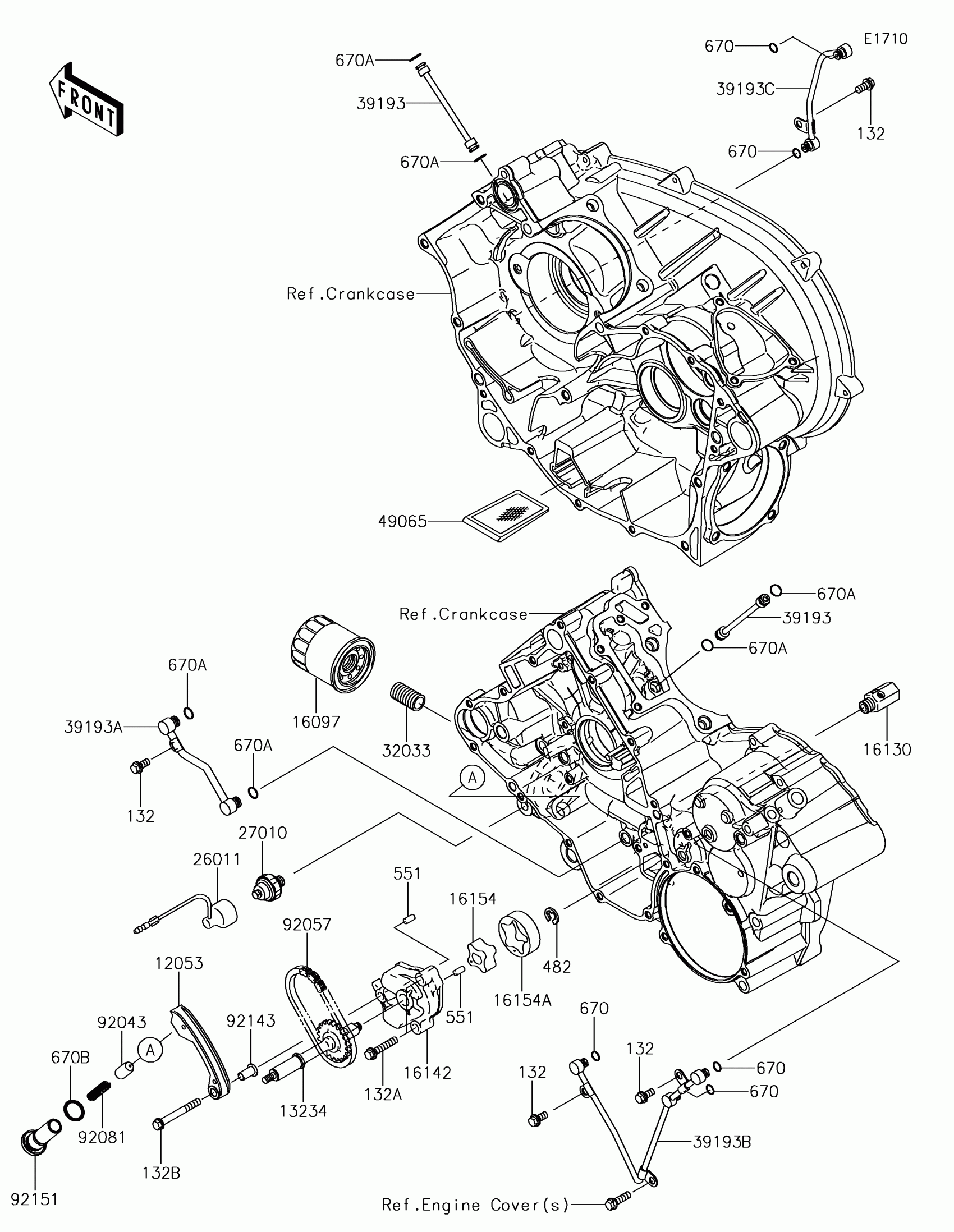

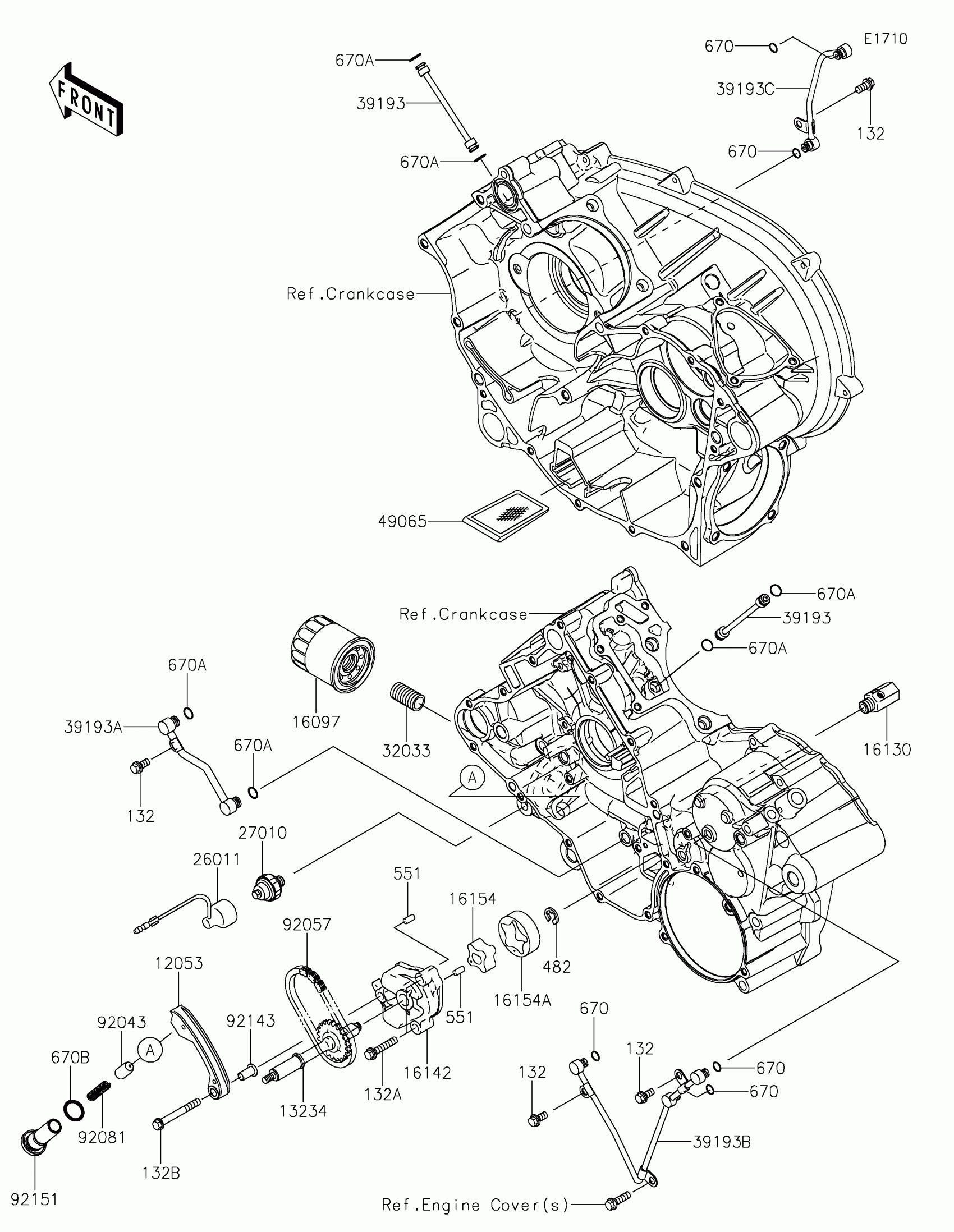

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Oil Pump/Oil Filter Diagram
#
Description
Price
12053
GUIDE-CHAIN,SLACK
12053-1440
$49.52
13234
SHAFT-COMP,OIL PUMP
13234-1112
$65.18
16097
FILTER-ASSY-OIL
16097-0007
$15.48
16130
VALVE-ASSY-RELIEF
16130-1058
$41.98
16142
COVER-PUMP
16142-1162
$38.18
16154
ROTOR-PUMP,INNER
16154-2059
$7.18
16154A
ROTOR-PUMP,OUTER
16154-2060
$10.32
26011
WIRE-LEAD
26011-1755
$21.99
27010
SWITCH,OIL PRESSURE
27010-1313
$40.13
32033
PIPE,OIL FILTER
32033-1535
$12.96
39193
PIPE-OIL,CRANKCASE-HEAD
39193-0015
$30.76
39193A
PIPE-OIL,CRANKSHAFT
39193-1052
$56.47
39193B
PIPE-OIL,CRANKCASE,LH
39193-1053
$127.17
39193C
PIPE-OIL,CRANKCASE,RH
39193-1054
$59.03
49065
FILTER-OIL
49065-1086
$13.66
92043
PIN
92043-076
$11.71
92057
CHAIN,DID SCR-0409 SV
92057-0188
$32.81
92081
SPRING
92081-112
$6.16
92143
COLLAR
92143-1857
$3.21
92151
BOLT,16X41
92151-1781
$28.70
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X30
132BA0630
$2.65
132B
BOLT-FLANGED-SMALL,6X50
132BB0650
$4.76
482
CIRCLIP-TYPE-E,6MM
482J6000
$0.69
551
PIN-DOWEL,4X8
551A0408
$0.78
670
O RING
670D1505
$4.31
670A
O RING,7MM
670D1507
$1.70
670B
O RING,16MM
670D2016
$1.70
