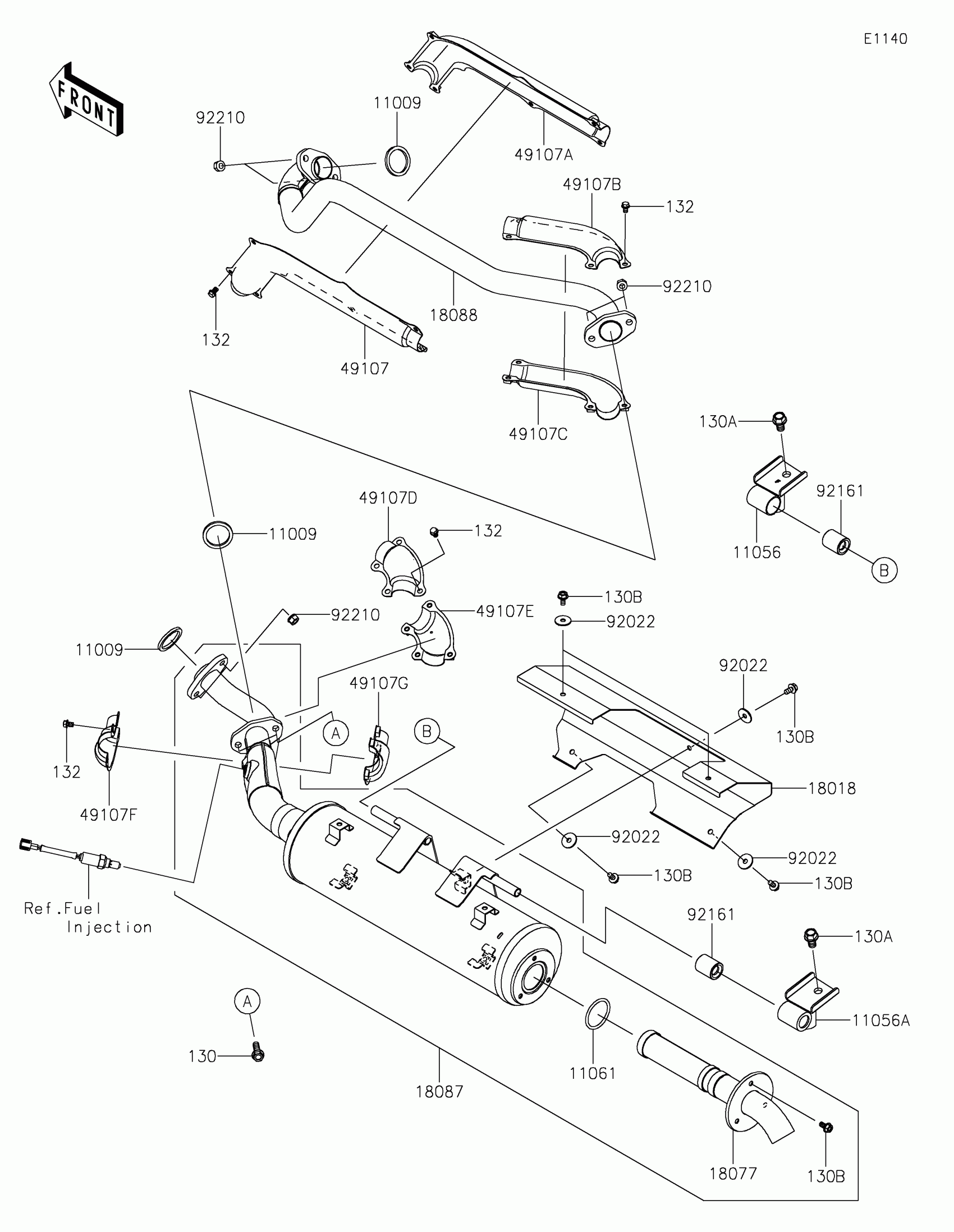

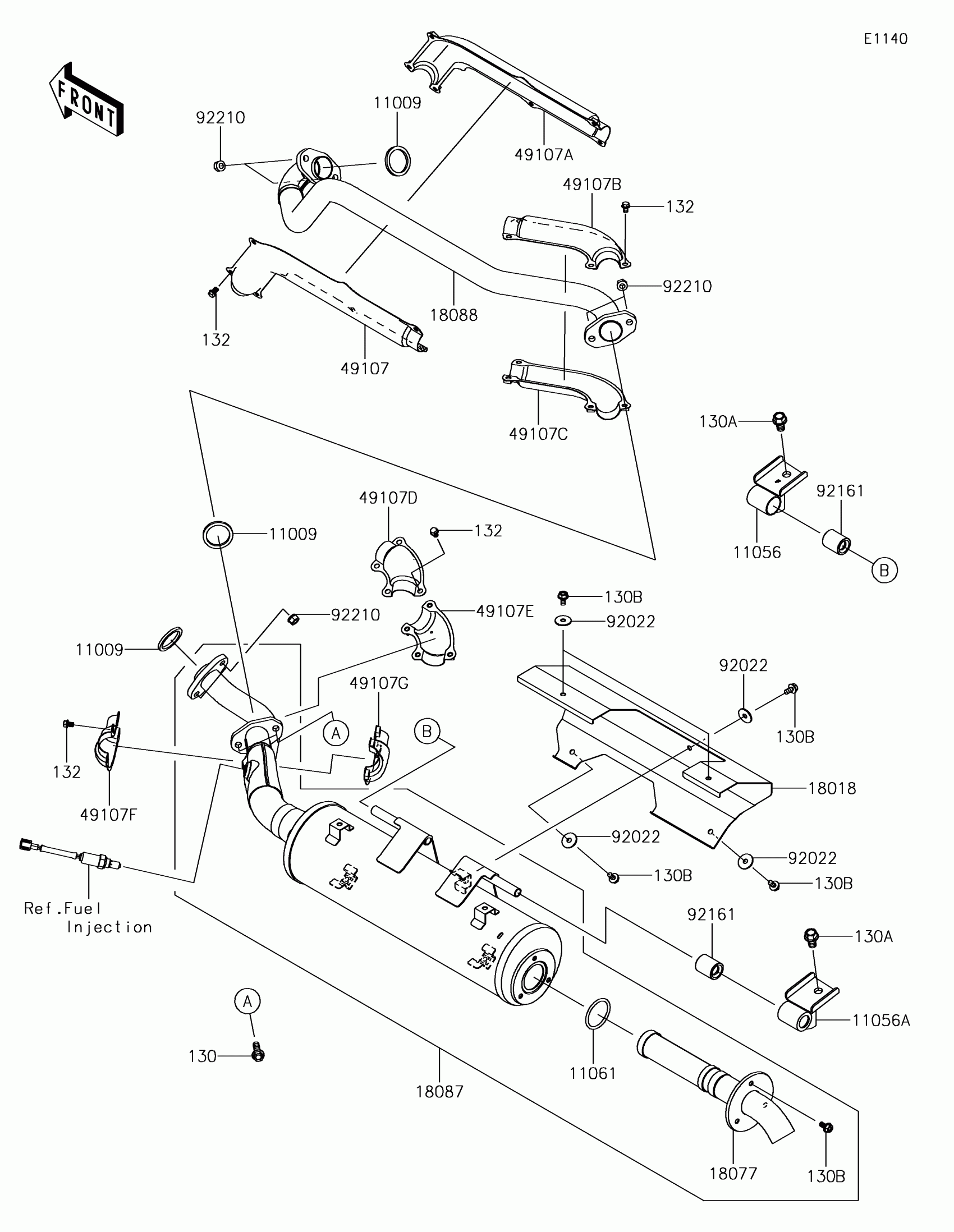

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST HOLDER

11009-1894

$8.03

11056

BRACKET,MUFFLER,FR

11056-0532

$11.16

11056A

BRACKET,MUFFLER,RR

11056-0533

$11.16

11061

GASKET,38.9X46.4X3.0

11061-0082

$7.60

18018

PLATE-HEAT GUARD

18018-0036

$31.70

18077

ARRESTER-SPARK

18077-0036

$168.58

18087

MUFFLER

18087-0323

$668.89

18088

PIPE-EXHAUST

18088-0856

$278.74

49107

COVER-EXHAUST PIPE,FR,FR,LH

49107-0759

$15.13

49107A

COVER-EXHAUST PIPE,FR,FR,RH

49107-0760

$20.51

49107B

COVER-EXHAUST PIPE,FR,RR,UPP

49107-0761

$13.63

49107C

COVER-EXHAUST PIPE,FR,RR,LWR

49107-0762

$21.77

49107D

COVER-EXHAUST PIPE,RR,FR,UPP

49107-0763

$14.85

49107E

COVER-EXHAUST PIPE,RR,FR,LWR

49107-0764

$16.50

49107F

COVER-EXHAUST PIPE,RR,RR,FR

49107-0765

$10.69

49107G

COVER-EXHAUST PIPE,RR,RR,RR

49107-0766

$16.89

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92161

DAMPER

92161-0961

$24.27

92210

NUT,8MM

92210-1242

$2.41

130

BOLT-FLANGED,8X30

130BD0830

$1.94

130A

BOLT-FLANGED,10X16

130CA1016

$3.35

130B

BOLT-FLANGED,6X12

130CD0612

$1.78

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$3.40
