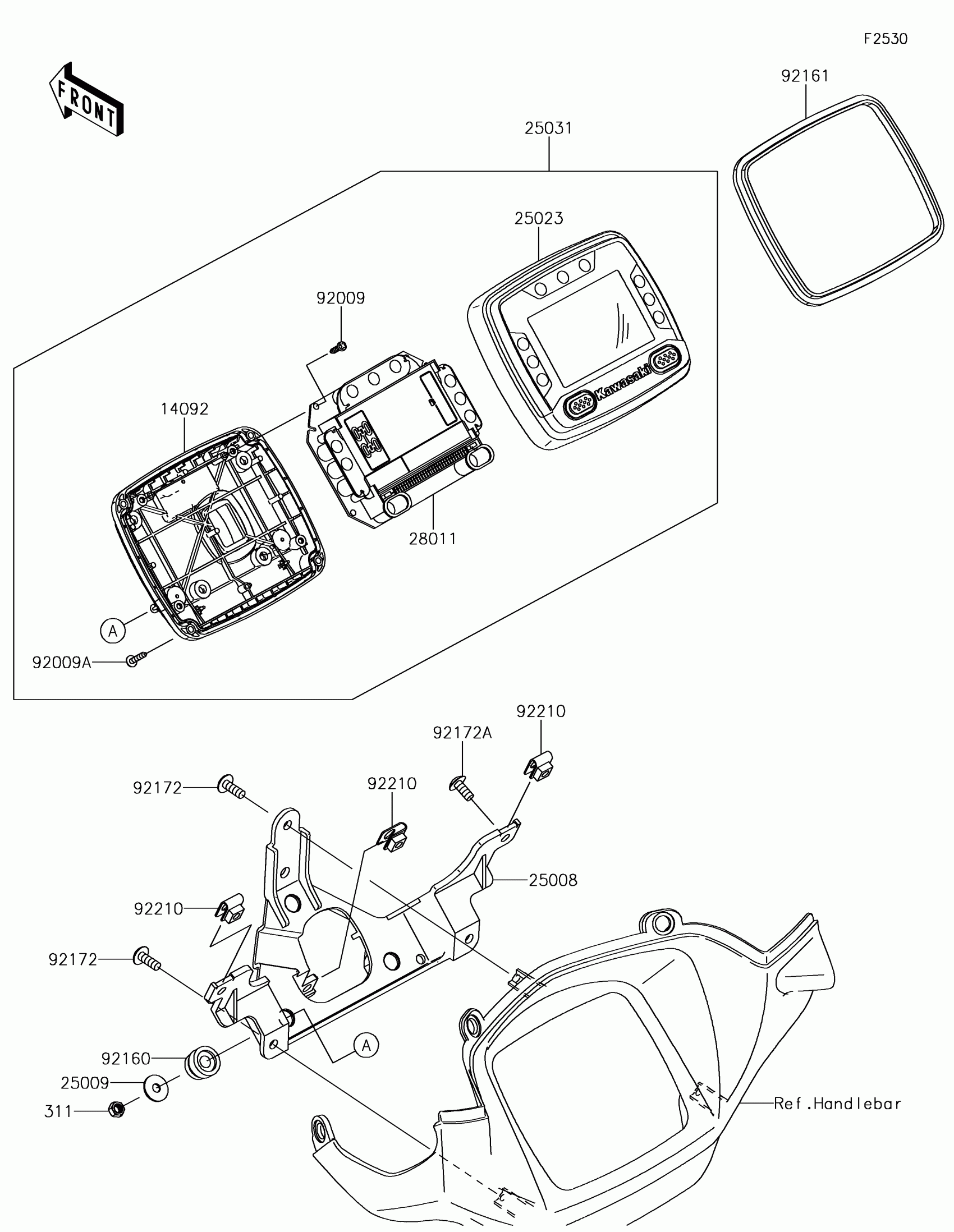

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Meter(s) Diagram

Description

Price

14092

COVER,LWR CASE

14092-0179

$67.39

25008

BRACKET-METER

25008-0034

$5.77

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25023

COVER-METER CASE,UPP

25023-0069

$143.54

25031

METER-ASSY,LCD

25031-0473

$476.71

28011

METER,LCD

28011-0603

$215.77

92009

SCREW,3X12

92009-1326

$3.20

92009A

SCREW,TAPPING,3X16

92009-1391

$2.76

92160

DAMPER

92160-1460

$4.32

92161

DAMPER,METER

92161-0906

$2.42

92172

SCREW,TAPPING,5X14

92172-0265

$1.04

92172A

SCREW,5X12

92172-0806

$1.10

92210

NUT,5MM

92210-0899

$5.44

311

NUT-HEX

311AA0500

$0.47
