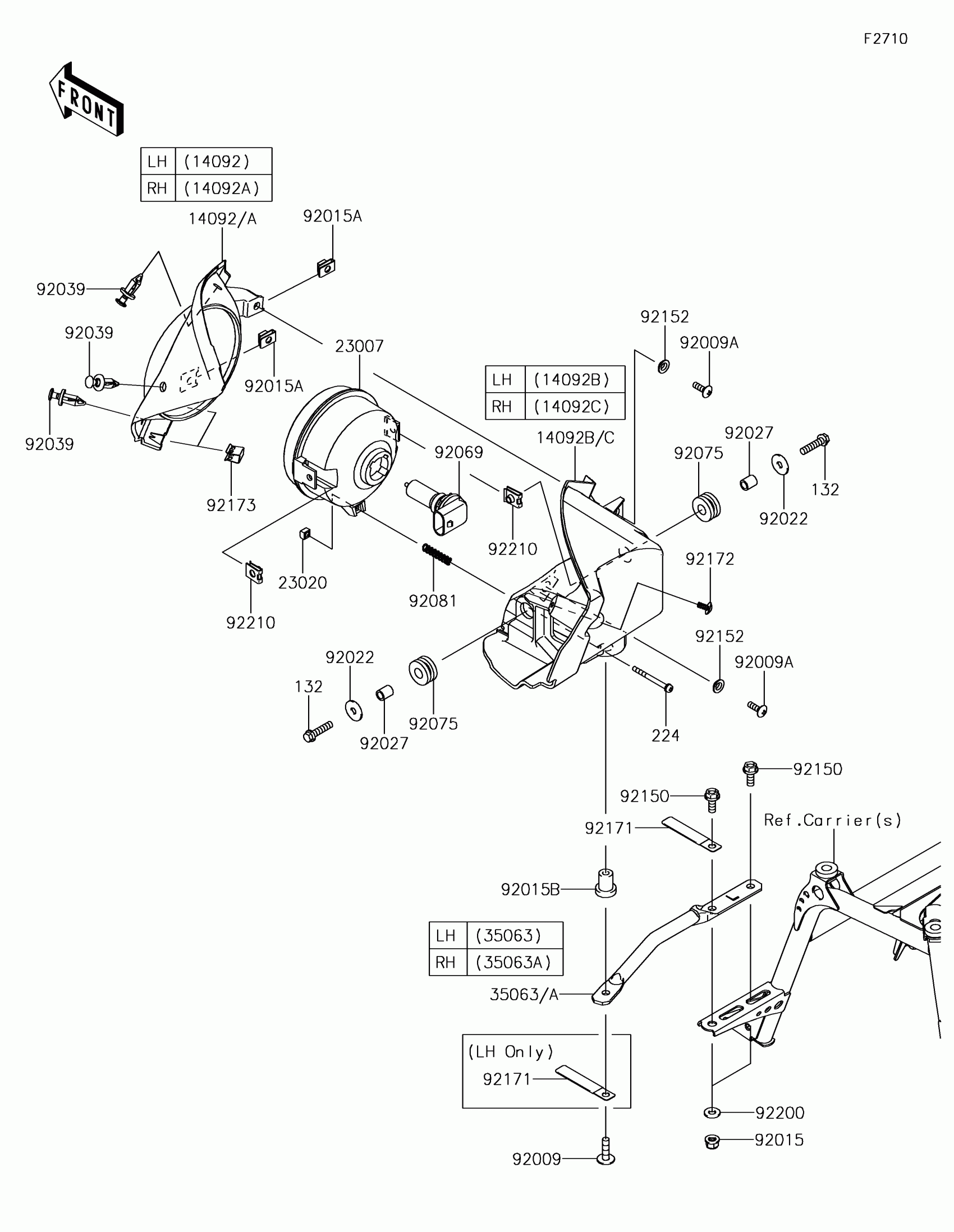

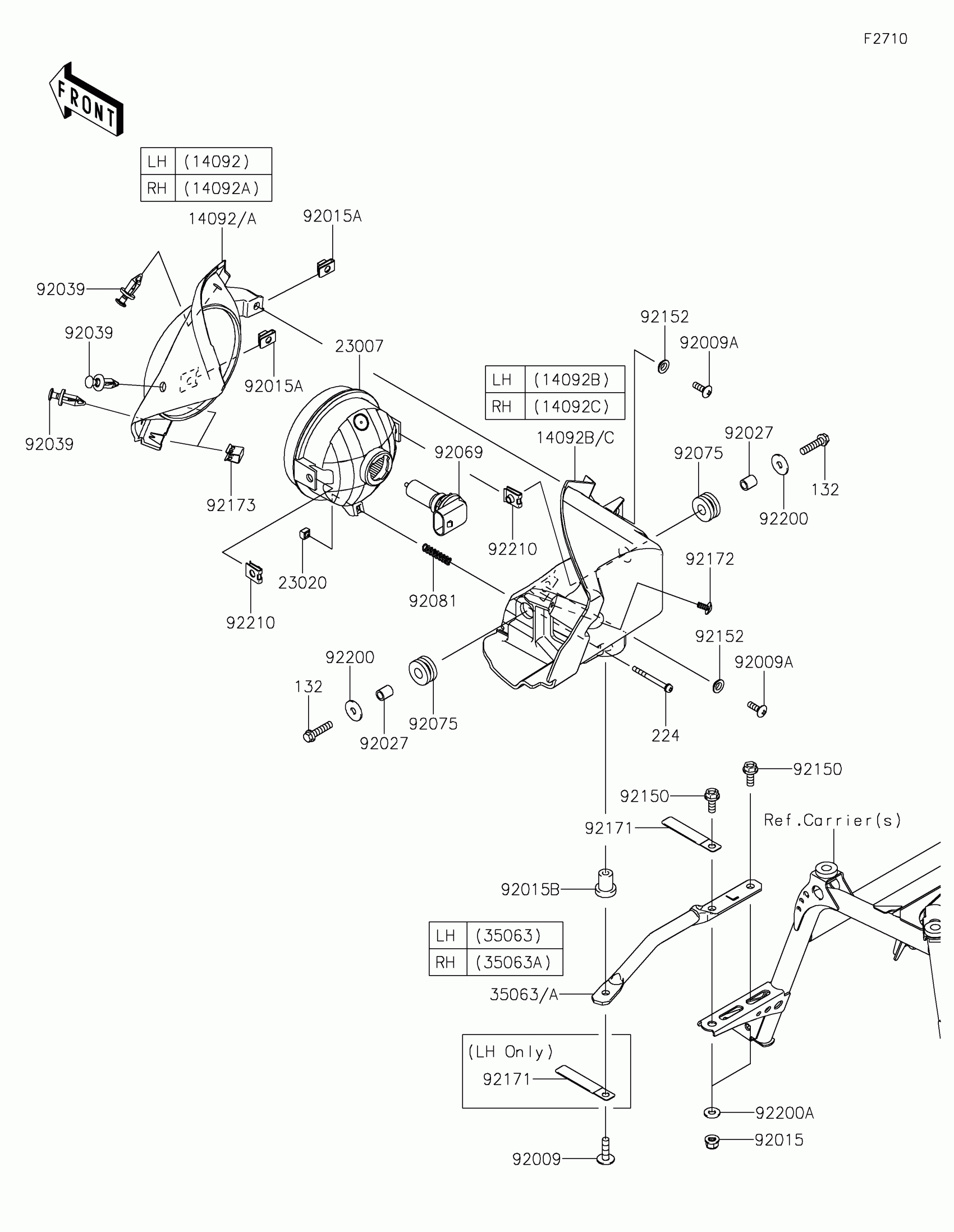

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Headlight(s) Diagram

Description

Price

14092

COVER,HEAD LAMP,LH,F.BLACK

14092-0190-6Z

$18.74

14092A

COVER,HEAD LAMP,RH,F.BLACK

14092-0191-6Z

$18.74

14092B

COVER,RR HEAD LAMP,LH

14092-0192

$11.55

14092C

COVER,RR HEAD LAMP,RH

14092-0193

$11.55

23007

LENS-COMP,HEAD LAMP

23007-0096

$44.76

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

35063

STAY,HEAD LAMP,LH

35063-0806

$36.83

35063A

STAY,HEAD LAMP,RH

35063-0807

$36.83

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92009A

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015A

NUT,5MM

92015-1627

$4.47

92015B

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92039

RIVET

92039-0776

$0.80

92069

BULB,12V 35/35W

92069-0019

$11.94

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92150

BOLT,FLANGED,6X15

92150-1015

$0.95

92152

COLLAR

92152-0250

$2.09

92171

CLAMP,L=60

92171-0652

$1.85

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92173

CLAMP

92173-0104

$2.69

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.30

92210

NUT

92210-1323

$3.19

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33
