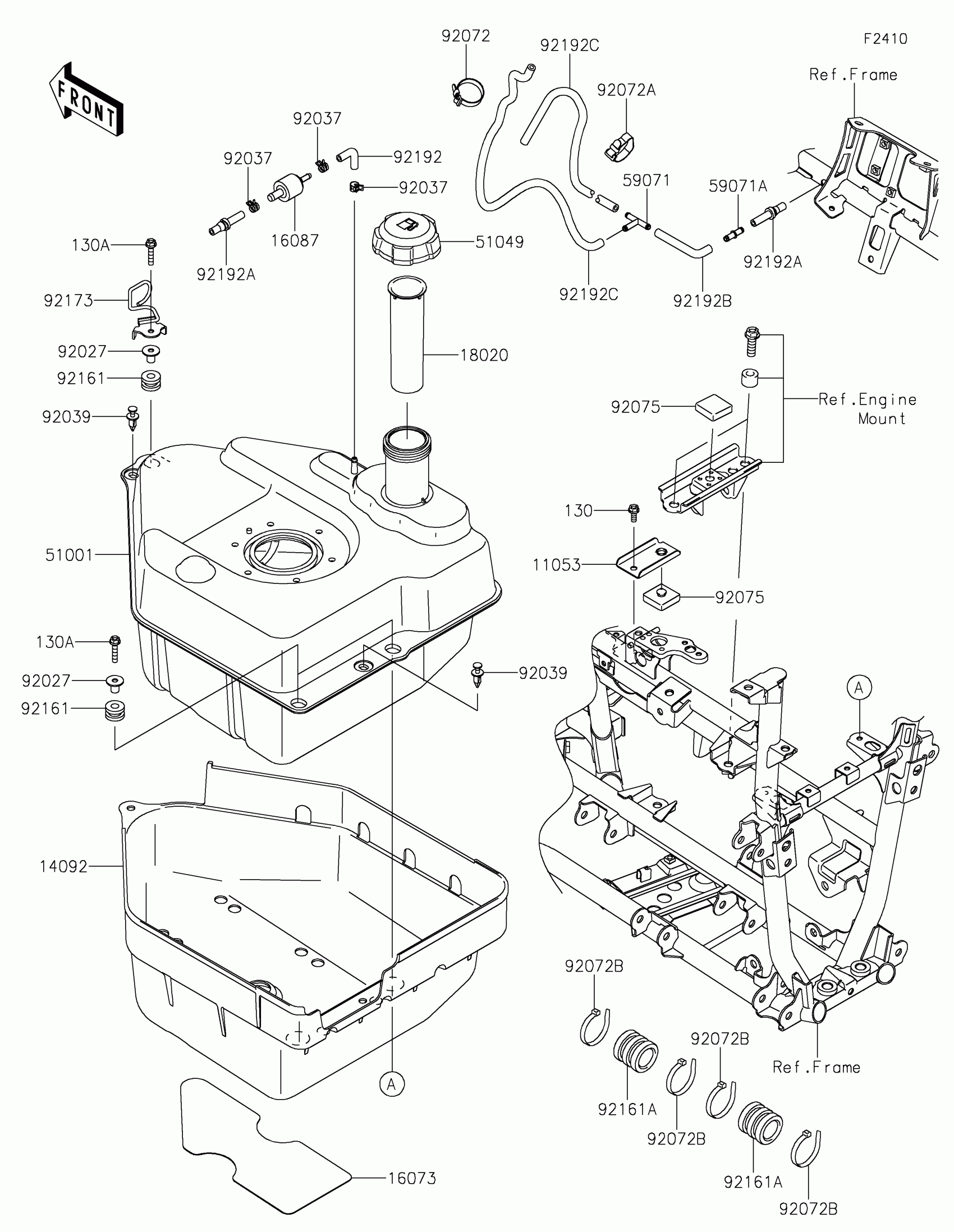

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Fuel Tank Diagram

Description

Price

11053

BRACKET,FUEL TANK,TOP

11053-0936

$3.17

14092

COVER,FUEL TANK,LWR

14092-0186

$42.07

16073

INSULATOR,FUEL TANK COVER,LWR

16073-0034

$7.92

16087

VALVE-CHECK

16087-0008

$33.58

18020

BAFFLE,FUEL TANK

18020-0008

$10.12

51001

TANK-COMP-FUEL

51001-0237

$296.02

51049

CAP-TANK,FUEL

51049-0718

$58.05

59071

JOINT

59071-3705

$4.15

59071A

JOINT

59071-3717

$3.07

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP,TUBE

92037-1461

$2.93

92039

RIVET

92039-0776

$0.80

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=188

92072-1239

$1.30

92075

DAMPER

92075-1882

$6.18

92161

DAMPER

92161-0106

$1.30

92161A

DAMPER,FUEL TANK,RR

92161-1111

$5.53

92173

CLAMP,FUEL TUBE

92173-0872

$12.02

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$2.95

92192A

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192B

TUBE,5X10X80/22

92192-0992

$3.92

92192C

TUBE,5X10X470

92192-0993

$8.85

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X30

130BA0630

$1.13
