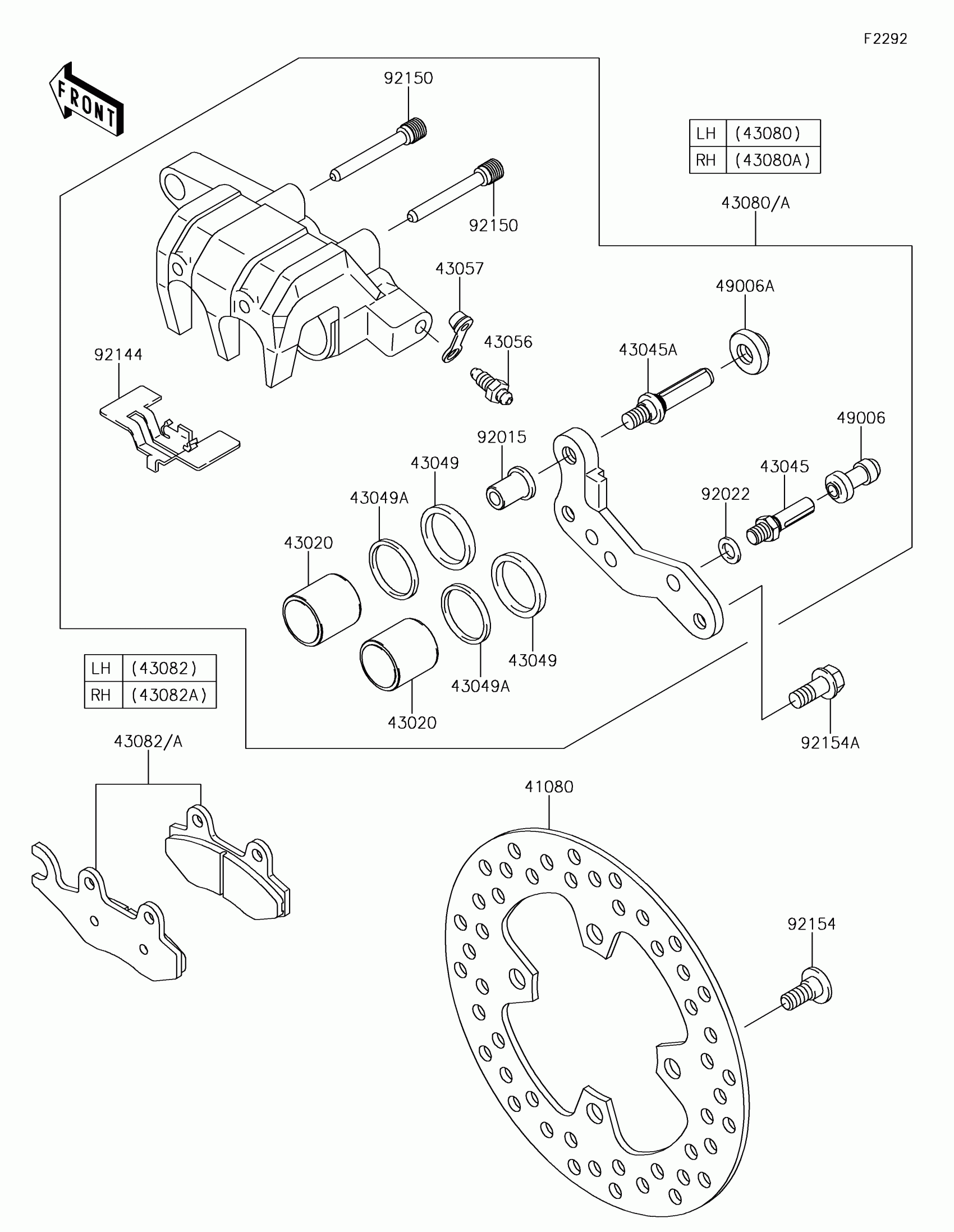

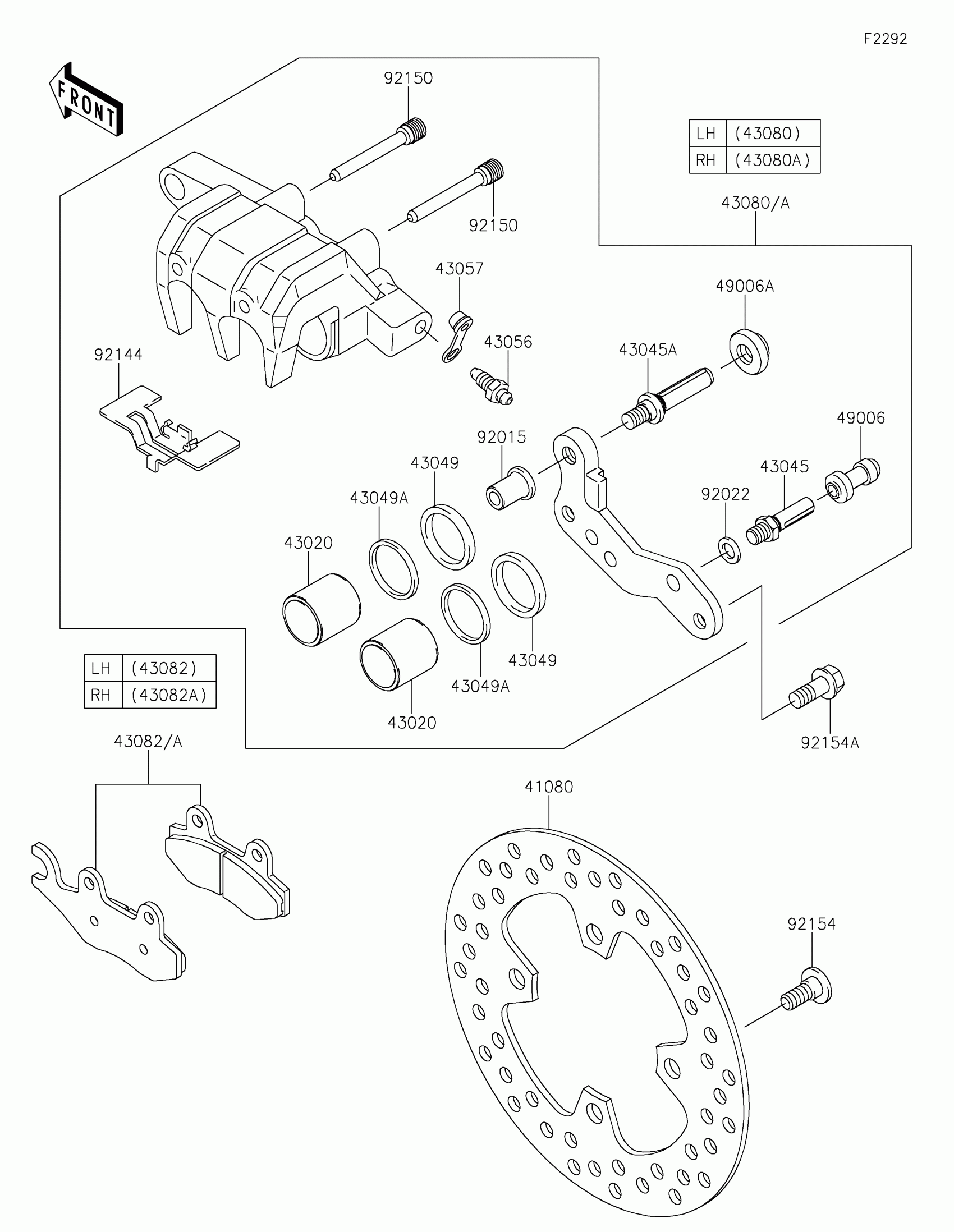

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Front Brake Diagram

Description

Price

41080

DISC,FR

41080-0585

$195.30

43020

PISTON-COMP-BRAKE

43020-1101

$53.01

43045

SHAFT-CALIPER

43045-1010

$20.77

43045A

SHAFT-CALIPER

43045-1052

$17.58

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,LH

43080-0089

$385.26

43080A

CALIPER-SUB-ASSY,RH

43080-0090

$385.26

43082

PAD-ASSY-BRAKE,FR,LH

43082-0022

$70.29

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0023

$70.29

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92144

SPRING,PAD

92144-1319

$7.77

92150

BOLT

92150-1144

$9.91

92154

BOLT,HEXALOBULAR SOCKET,8X20

92154-1165

$4.10

92154A

BOLT,FLANGED,8X19

92154-1379

$2.26
