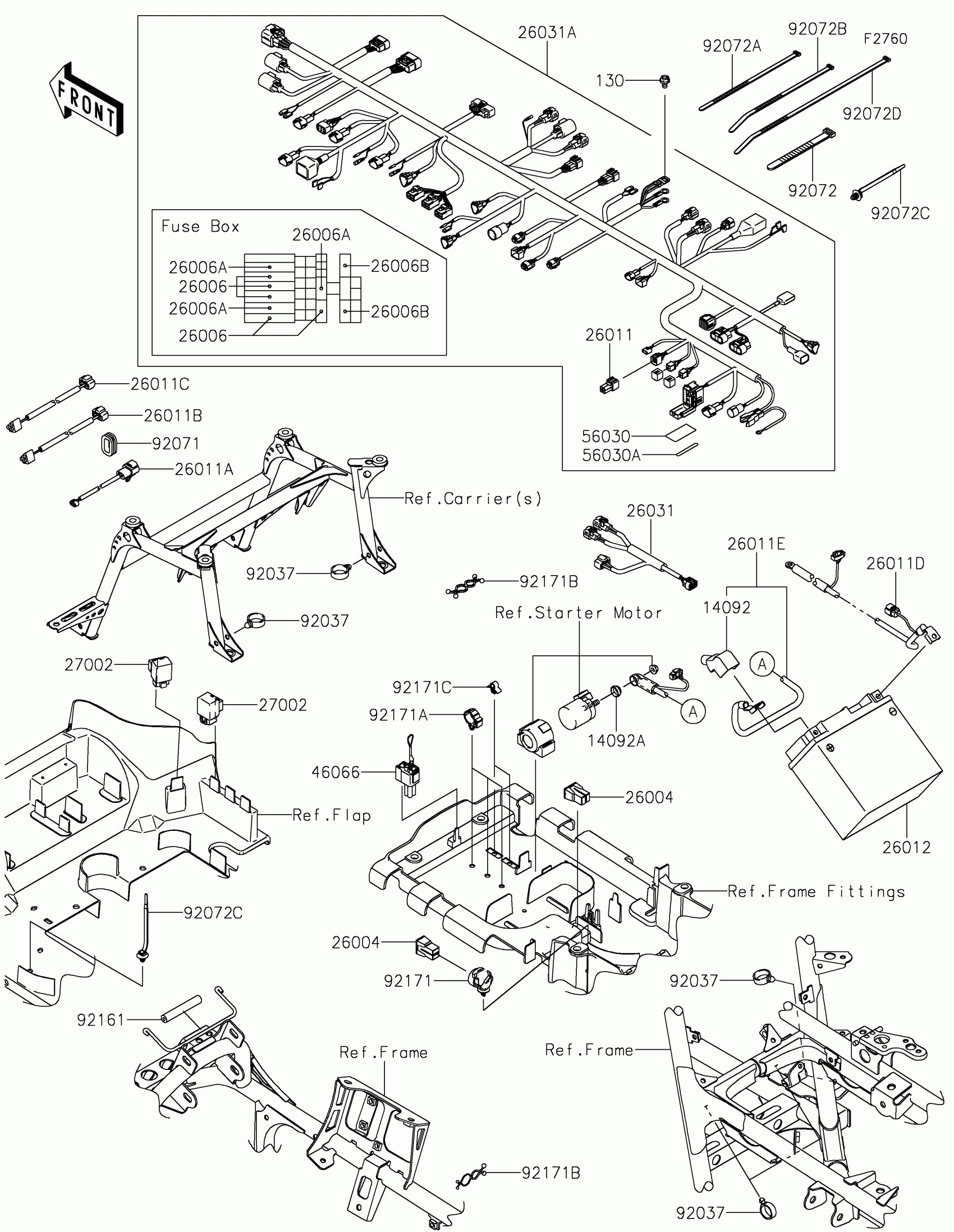

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Chassis Electrical Equipment Diagram

Description

Price

14092

COVER

14092-0767

$7.88

14092A

COVER,MAGNETIC SW.

14092-0851

$1.93

26004

FUSE-ASSY,40A

26004-1093

$4.11

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,CAP

26011-0271

$14.74

26011A

WIRE-LEAD,EPS EXTENSION

26011-0312

$29.31

26011B

WIRE-LEAD,HEAD LAMP,RH

26011-0721

$20.76

26011C

WIRE-LEAD,HEAD LAMP,LH

26011-0743

$20.93

26011D

WIRE-LEAD,BATTERY(-)

26011-0744

$46.13

26011E

WIRE-LEAD,BATTERY(+)

26011-0807

$81.33

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

26031

HARNESS,SUB

26031-0752

$84.03

26031A

HARNESS,MAIN

26031-1656

$541.06

27002

RELAY-ASSY

27002-1062

$45.39

46066

CONNECTOR-ASSY,RESET

46066-0001

$26.91

56030

LABEL,FUSE BOX,10A&15A

56030-0401

$3.77

56030A

LABEL,FUSE BOX,30A

56030-0404

$3.77

92037

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-0708

$3.09

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92072C

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072D

BAND,L=292.1

92072-3509

Unavailable

92161

DAMPER,4.5X11X68

92161-0988

$2.67

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171B

CLAMP

92171-0476

$3.90

92171C

CLAMP

92171-0477

$3.35

130

BOLT-FLANGED,6X10

130BA0610

$1.20
