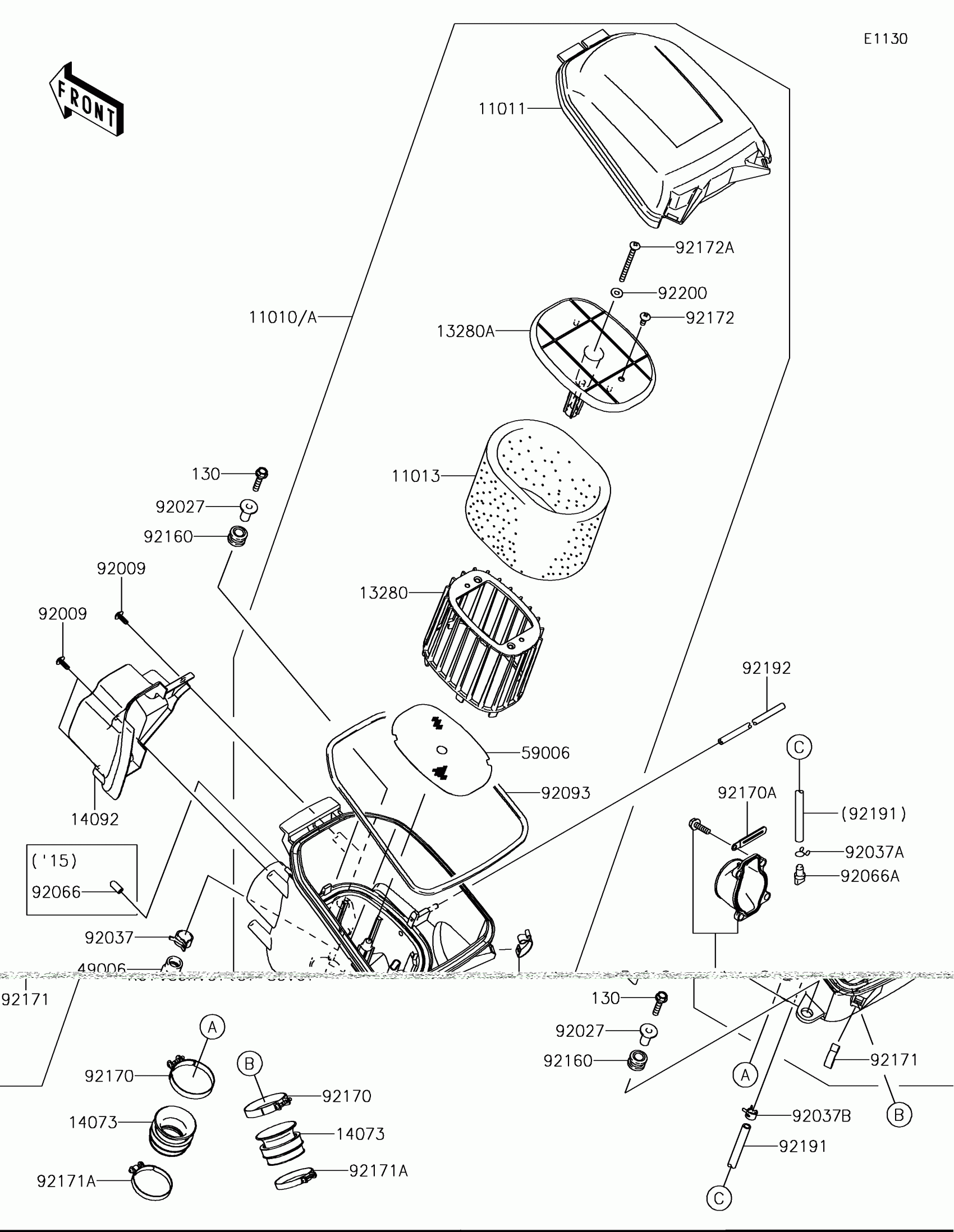

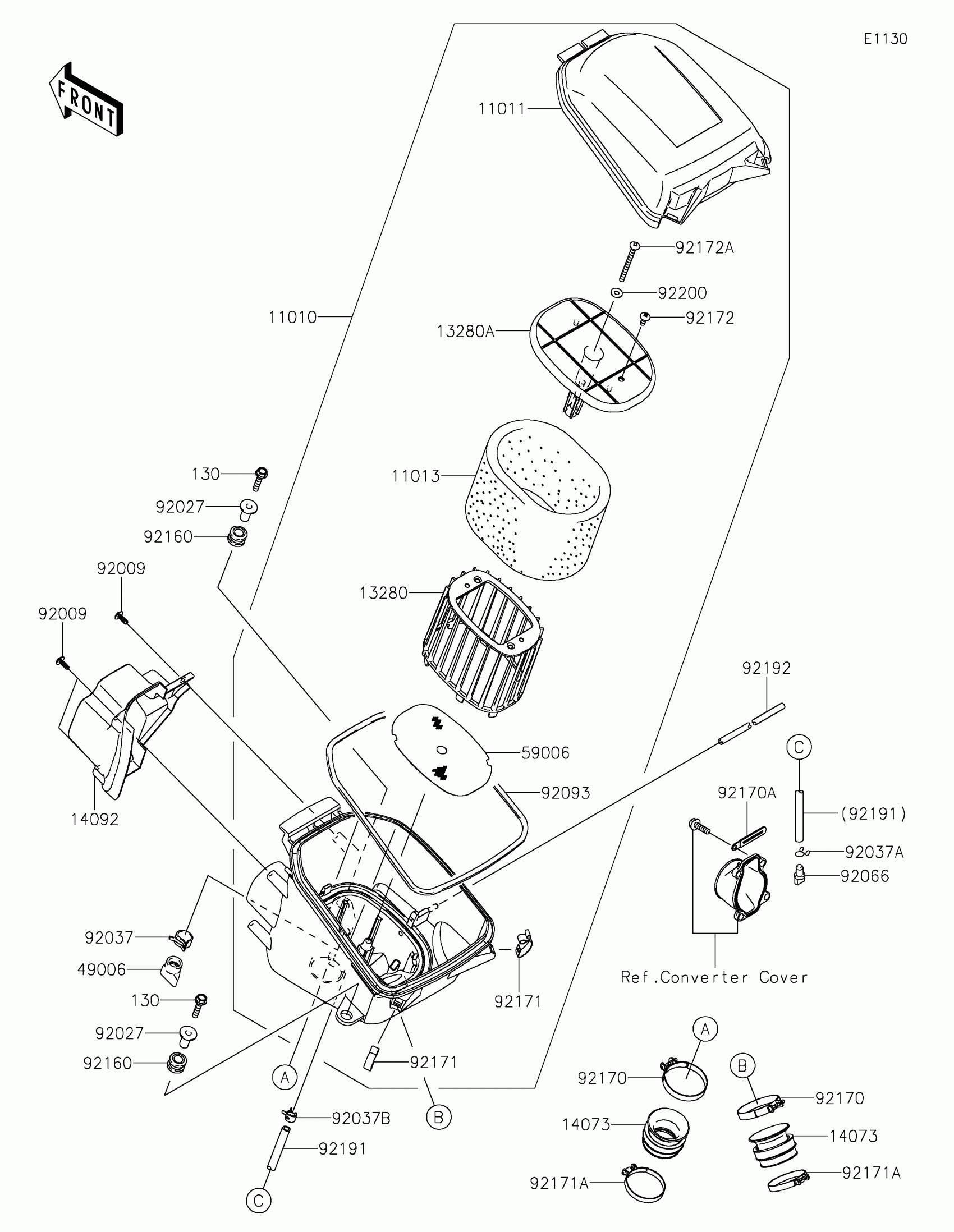

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Air Cleaner Diagram
#
Description
Price
11010
FILTER-ASSY-AIR
11010-0784
$137.54
11011
CASE-AIR FILTER,UPP
11011-0017
$28.64
11013
ELEMENT-AIR FILTER
11013-0021
$10.95
13280
HOLDER
13280-0232
$19.41
13280A
HOLDER
13280-0233
$9.07
14073
DUCT
14073-0160
$7.89
14092
COVER,INTAKE DUCT
14092-0768
$16.17
49006
BOOT
49006-1292
$7.77
59006
ARRESTER-FLAME
59006-0015
$22.66
92009
SCREW,TAPPING
92009-1113
$3.92
92027
COLLAR
92027-195
$6.57
92037
CLAMP,HOSE CLIP
92037-1460
$10.81
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP,TUBE
92037-1505
$4.76
92066
PLUG,DRAIN
92066-1211
$8.51
92093
SEAL
92093-0083
$7.87
92160
DAMPER
92160-1594
$4.69
92170
CLAMP
92170-1448
$8.10
92170A
CLAMP
92170-1514
$4.31
92171
CLAMP
92171-0225
$1.97
92171A
CLAMP
92171-0722
$15.20
92172
SCREW
92172-0297
$1.68
92172A
SCREW
92172-0300
$5.04
92191
TUBE,7X11X470
92191-1531
$7.22
92192
TUBE
92192-0449
$9.09
92200
WASHER
92200-0364
$3.76
130
BOLT-FLANGED,6X30
130BA0630
$1.46
