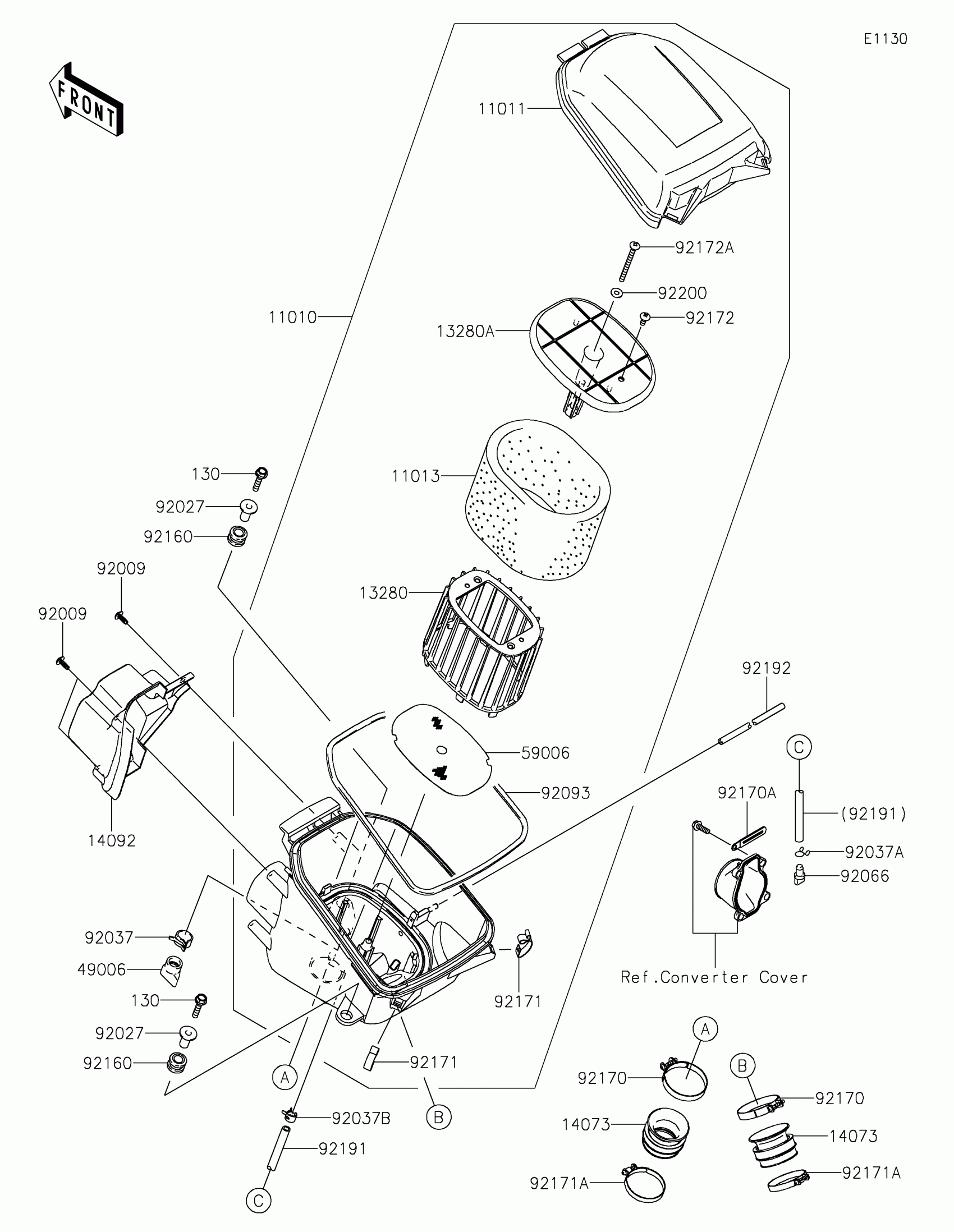

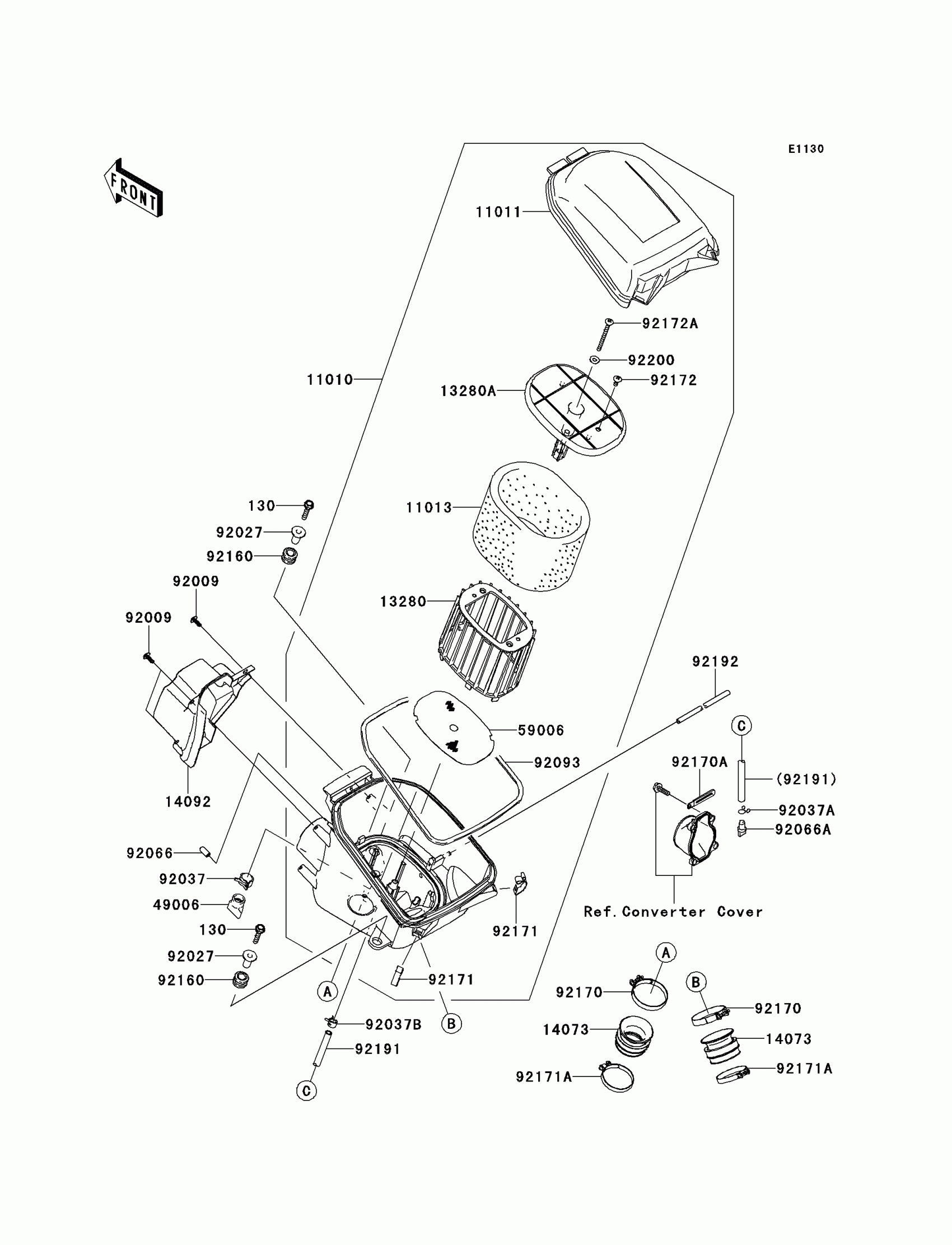

Kawasaki BRUTE FORCE® 750 4x4i EPS Air Cleaner Diagram

Description

Price

130

BOLT-FLANGED,6X30

130BA0630

$1.46

11010

FILTER-ASSY-AIR

11010-0152

Unavailable

11011

CASE-AIR FILTER,UPP

11011-0017

$28.64

11013

ELEMENT-AIR FILTER

11013-0021

$10.95

13280

HOLDER

13280-0232

$19.41

13280A

HOLDER

13280-0233

$9.07

14073

DUCT

14073-0160

$7.89

14092

COVER,INTAKE DUCT

14092-0768

$16.17

49006

BOOT

49006-1292

$7.77

59006

ARRESTER-FLAME

59006-0015

$22.66

92009

SCREW,TAPPING

92009-1113

$3.92

92027

COLLAR

92027-195

$6.57

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,TUBE

92037-1505

$4.76

92066

PLUG

92066-0095

$5.17

92066A

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL

92093-0083

$7.87

92160

DAMPER

92160-1594

$4.69

92170

CLAMP

92170-1448

$8.10

92170A

CLAMP

92170-1514

$4.31

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP

92171-0722

$15.20

92172

SCREW

92172-0297

$1.68

92172A

SCREW

92172-0300

$5.04

92191

TUBE,7X11X470

92191-1531

$7.22

92192

TUBE

92192-0449

$9.09

92200

WASHER

92200-0364

$3.76
