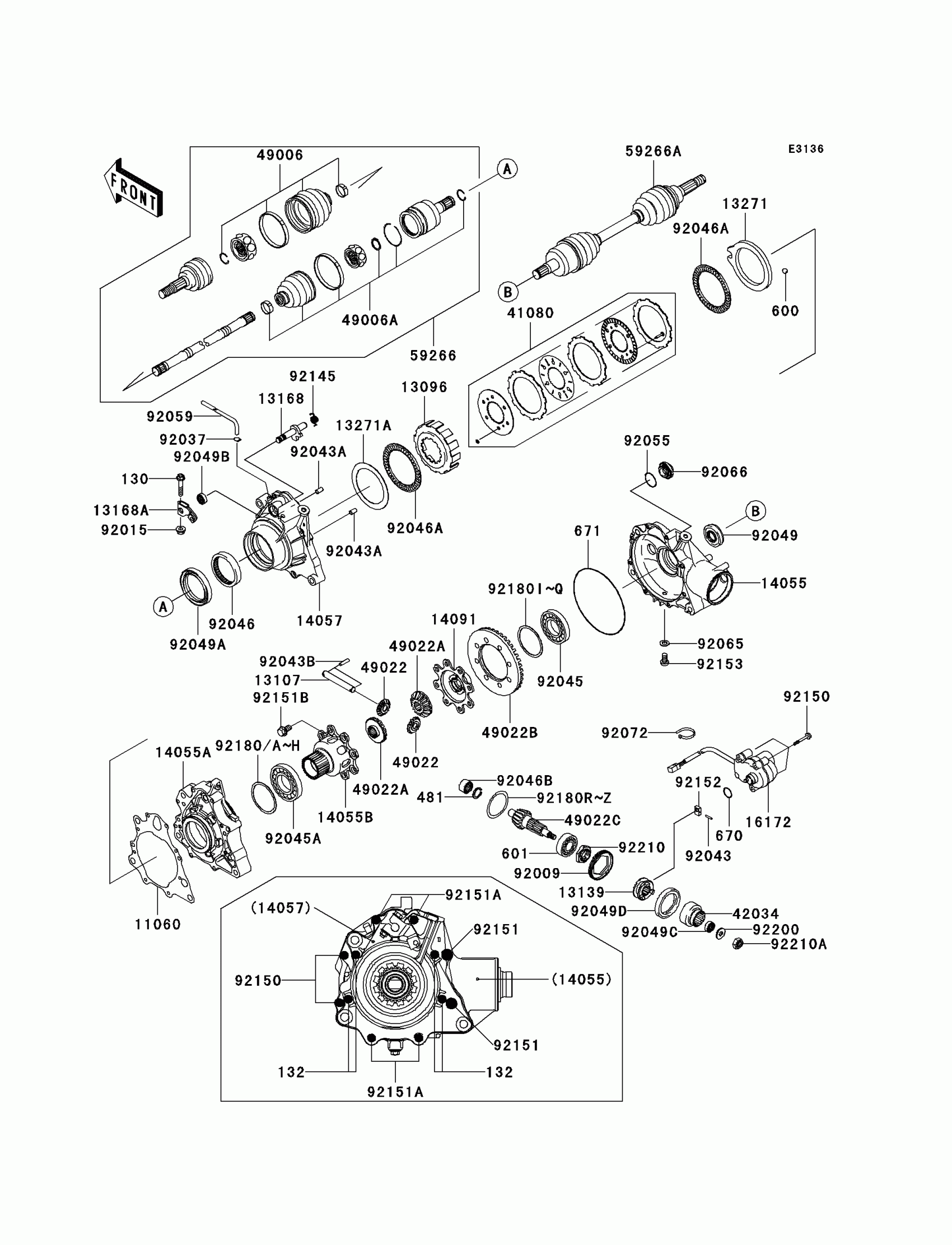

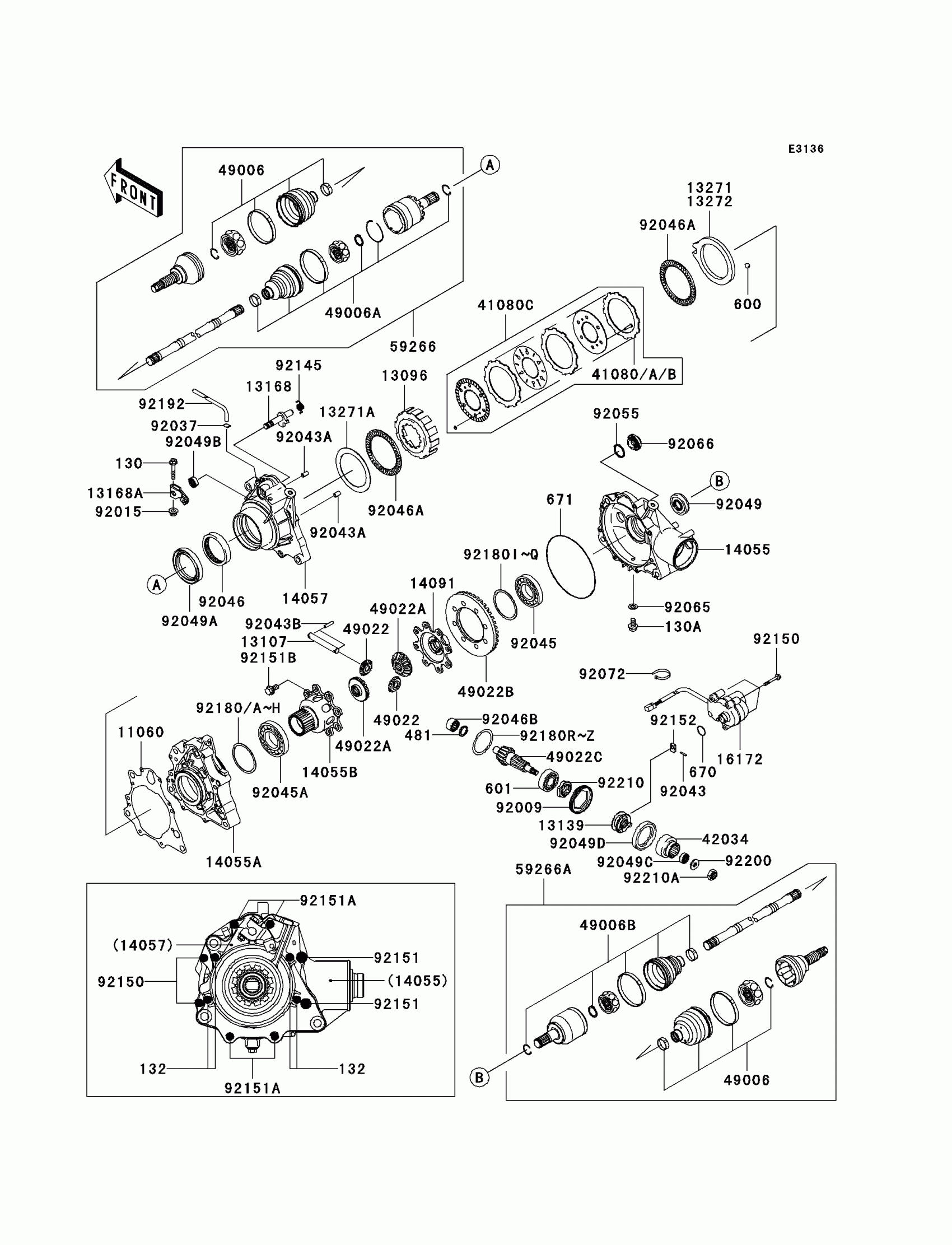

Kawasaki BRUTE FORCE® 750 4x4i Drive Shaft-Front Diagram
#
11060
GASKET,DIFF CASE
11060-1982
$29.99
13096
HOUSING-CLUTCH,DISC
13096-1163
$45.60
13107
SHAFT,CROSS
13107-0123
$17.27
13139
SHIFTER,DIFFERENTIAL
13139-1097
$102.66
13168
LEVER,DIFF
13168-1724
$41.94
13168A
LEVER,DIFFERENTIAL
13168-1725
$19.76
13271A
PLATE,DISC
13271-1503
$15.39
13272
PLATE,CAM
13272-0848
$51.12
14055
CASE-GEAR
14055-0014
Unavailable
14055A
CASE-GEAR,CENTER
14055-1155
$142.53
14055B
CASE-GEAR,BEVEL,LH
14055-1156
Unavailable
14057
CASE-COMP-GEAR,DIFF,LH
14057-1004
Unavailable
14091
COVER,BEVEL,RH
14091-1197
$64.18
16172
ACTUATOR
16172-0007
Unavailable
41080
DISC,T=1.20
41080-1499
Unavailable
41080A
DISC,T=1.80
41080-1500
Unavailable
41080B
DISC,T=2.40
41080-1501
Unavailable
41080C
DISC ASSY,DIFFERENTIAL LOCK
41080-1512
Unavailable
42034
COUPLING,BEVEL
42034-1192
$128.34
49006
BOOT
49006-0062
$64.77
49006A
BOOT
49006-0063
$64.77
49006B
BOOT
49006-0068
$67.50
49022
GEAR-BEVEL,10T
49022-1177
Unavailable
49022A
GEAR-BEVEL,16T
49022-1178
$155.92
49022B
GEAR-BEVEL,35T
49022-1190
Unavailable
49022C
GEAR-BEVEL,8T
49022-1201
$432.33
59266
JOINT-BALL,LH
59266-0021
$498.94
59266A
JOINT-BALL,RH
59266-0022
$527.90
92009
SCREW,64MM
92009-1914
$29.63
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92037
CLAMP-HOSE
92037-1104
$1.45
92043
PIN,2X10.5
92043-0083
$2.61
92043A
PIN,6.2X8X14
92043-1263
$0.43
92043B
PIN
92043-1575
$2.46
92045
BEARING-BALL,60/32
92045-1393
$27.70
92045A
BEARING-BALL,6910
92045-1394
$50.18
92046
BEARING-NEEDLE
92046-0028
$52.97
92046A
BEARING-NEEDLE,AK1116
92046-1286
$54.92
92046B
BEARING-NEEDLE,AJ501515W
92046-1297
$36.04
92049
SEAL-OIL,SDD7 22X48X7HS
92049-1534
$18.37
92049A
SEAL-OIL,HTCY 62X81X10.5
92049-1536
$21.99
92049B
SEAL-OIL,TC 12X22X7
92049-1550
$5.00
92049C
SEAL-OIL,KB 13X19X13
92049-1572
$9.43
92049D
SEAL-OIL,TCY 48X65X8
92049-1573
$17.31
92055
RING-O
92055-0122
$3.90
92065
GASKET,8.5X16X1
92065-023
$3.88
92066
PLUG
92066-1303
$12.96
92072
BAND,L=188
92072-1239
$1.73
92145
SPRING,DIFF RETURN
92145-1344
$3.70
92150
BOLT,6X45
92150-1884
Unavailable
92151
BOLT,8X50
92151-1794
$2.80
92151A
BOLT,6X60
92151-1795
$2.41
92151B
BOLT,10X19.5
92151-1910
$3.26
92152
COLLAR
92152-1349
$40.82
92180
SHIM,62X71X0.15
92180-1390
Unavailable
92180A
SHIM,62X71X0.20
92180-1391
Unavailable
92180B
SHIM,62X71X0.50
92180-1392
Unavailable
92180C
SHIM,62X71X0.70
92180-1393
Unavailable
92180D
SHIM,62X71X0.80
92180-1394
Unavailable
92180E
SHIM,62X71X0.90
92180-1395
Unavailable
92180F
SHIM,62X71X1.00
92180-1396
Unavailable
92180G
SHIM,62X71X1.10
92180-1397
Unavailable
92180H
SHIM,62X71X1.20
92180-1398
Unavailable
92180I
SHIM,32X42X0.15
92180-1399
Unavailable
92180J
SHIM,32X42X0.20
92180-1400
Unavailable
92180K
SHIM,32X42X0.50
92180-1401
Unavailable
92180L
SHIM,32X42X0.70
92180-1402
Unavailable
92180M
SHIM,32X42X0.80
92180-1403
Unavailable
92180N
SHIM,32X42X0.90
92180-1404
Unavailable
92180O
SHIM,32X42X1.00
92180-1405
Unavailable
92180P
SHIM,32X42X1.10
92180-1406
Unavailable
92180Q
SHIM,32X42X1.20
92180-1407
Unavailable
92180R
SHIM,50X61X0.15
92180-1408
Unavailable
92180S
SHIM,50X61X0.20
92180-1409
Unavailable
92180T
SHIM,50X61X0.50
92180-1410
Unavailable
92180U
SHIM,50X61X0.70
92180-1411
Unavailable
92180V
SHIM,50X61X0.80
92180-1412
Unavailable
92180W
SHIM,50X61X0.90
92180-1413
Unavailable
92180X
SHIM,50X61X1.00
92180-1414
Unavailable
130
BOLT-FLANGED,6X35
130BA0635
$0.94
130A
BOLT-FLANGED,8X14
130BA0814
$2.16
132
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
481
CIRCLIP-TYPE-C,25MM
481J2500
$3.07
600
BALL-STEEL,11/32"
600A1100
$0.64
601
BEARING-BALL,#6305
601A6305
$18.63
670
O RING
670D3022
$2.80
671
O RING
671D25145
$20.09
92180Y
SHIM,50X61X1.10
92180-1415
Unavailable
92180Z
SHIM,50X61X1.20
92180-1416
Unavailable
92192
TUBE,7X12X760
92192-0716
$25.81
92200
WASHER,10X24X2.5
92200-1635
$4.18
92210
NUT,25MM
92210-1225
$15.39
92210A
NUT,LOCK,10MM
92210-1351
$7.65
