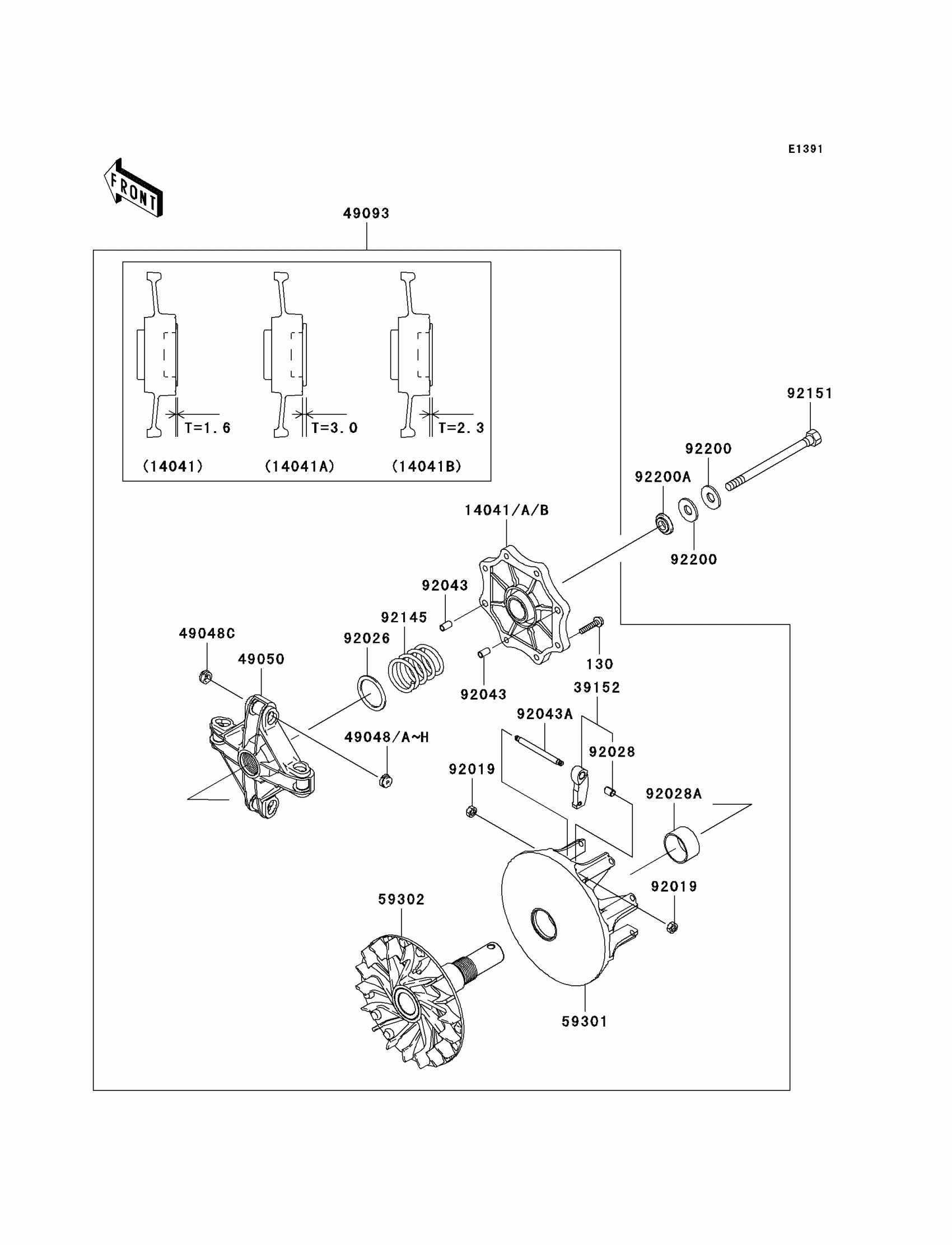

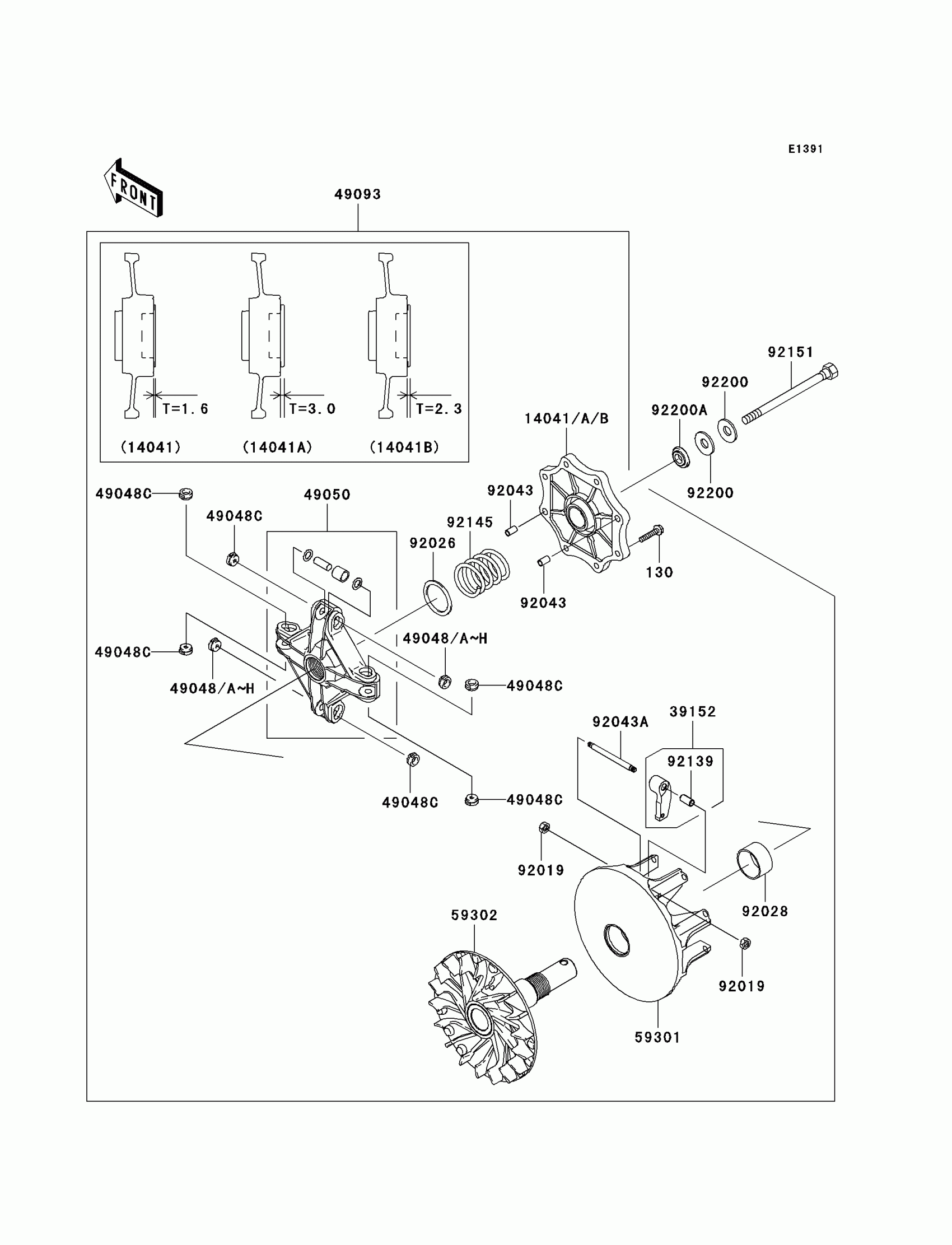

Kawasaki BRUTE FORCE® 750 4x4i Drive Converter Diagram
#
Description
Price
130
BOLT-FLANGED,6X30
130CA0630
$2.49
14041
COVER-COMP,RED
14041-1159
Unavailable
14041A
COVER-COMP,BLUE
14041-1160
Unavailable
14041B
COVER-COMP,STD
14041-1161
$116.67
39152
WEIGHT-RAMP
39152-0019
$58.92
49048
SHOE,T=7.2
49048-1087
Unavailable
49048A
SHOE,T=7.3
49048-1088
Unavailable
49048B
SHOE,T=7.4
49048-1089
Unavailable
49048C
SHOE,T=7.5
49048-1090
$14.82
49048D
SHOE,T=7.6
49048-1091
Unavailable
49048E
SHOE,T=7.7
49048-1092
Unavailable
49048F
SHOE,T=7.8
49048-1093
Unavailable
49048G
SHOE,T=7.9
49048-1094
Unavailable
49048H
SHOE,T=8.0
49048-1095
Unavailable
49050
SPIDER
49050-0010
$139.98
49093
CONVERTER-ASSY-DRIVE
49093-0022
Unavailable
59301
SHEAVE-MOVABLE
59301-0007
$235.19
59302
SHEAVE-COMP
59302-0003
Unavailable
92019
NUT,LOCK,6MM
92019-008
$4.26
92026
SPACER,39X49.5X1.0
92026-1603
$7.63
92028
BUSHING
92028-1975
$12.80
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN
92043-1688
$13.60
92139
BUSHING
92139-0215
$10.21
92145
SPRING
92145-0557
$29.08
92151
BOLT,12X165
92151-1393
$24.22
92200
WASHER,SPRING
92200-1504
$4.18
92200A
WASHER
92200-1634
$9.07
