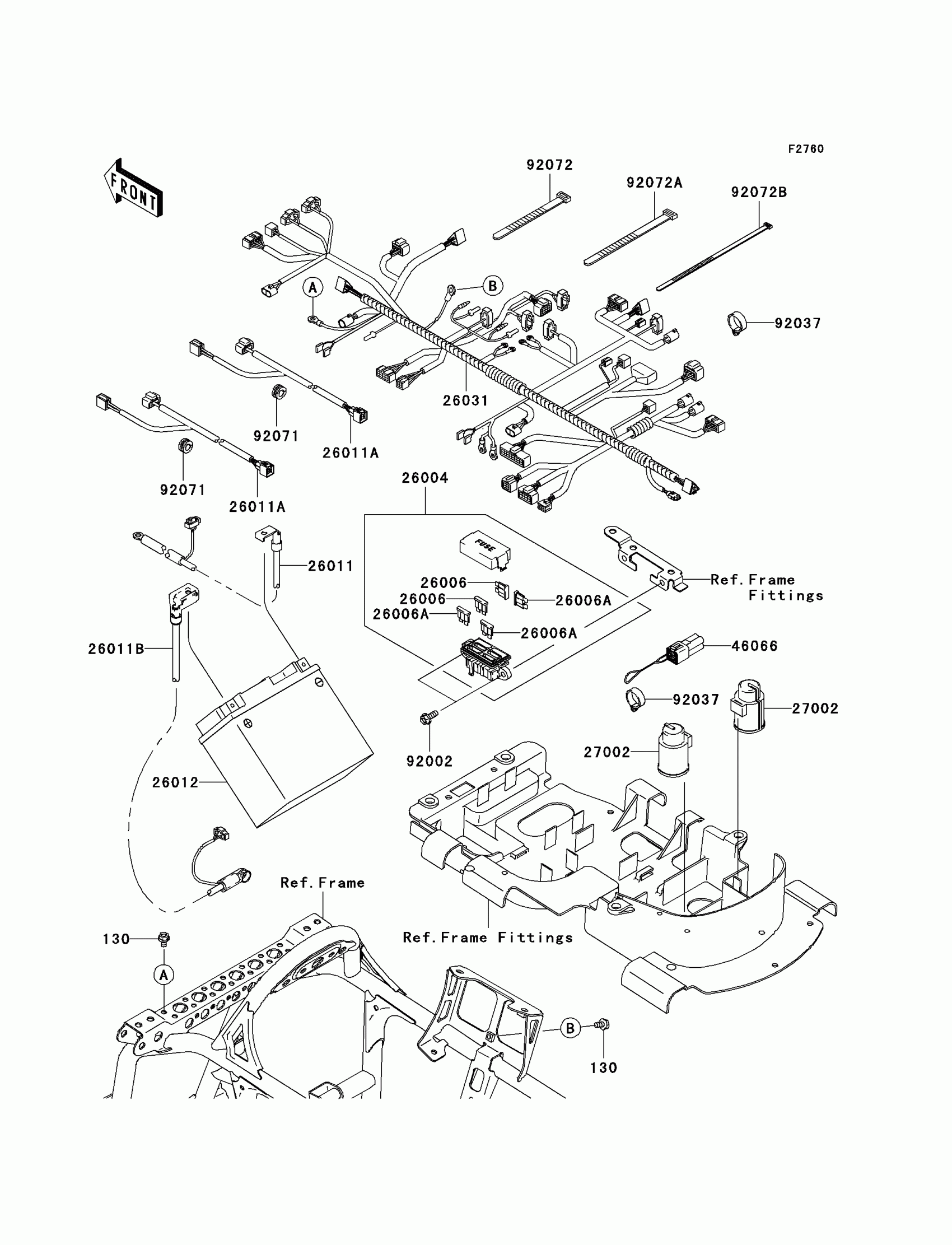

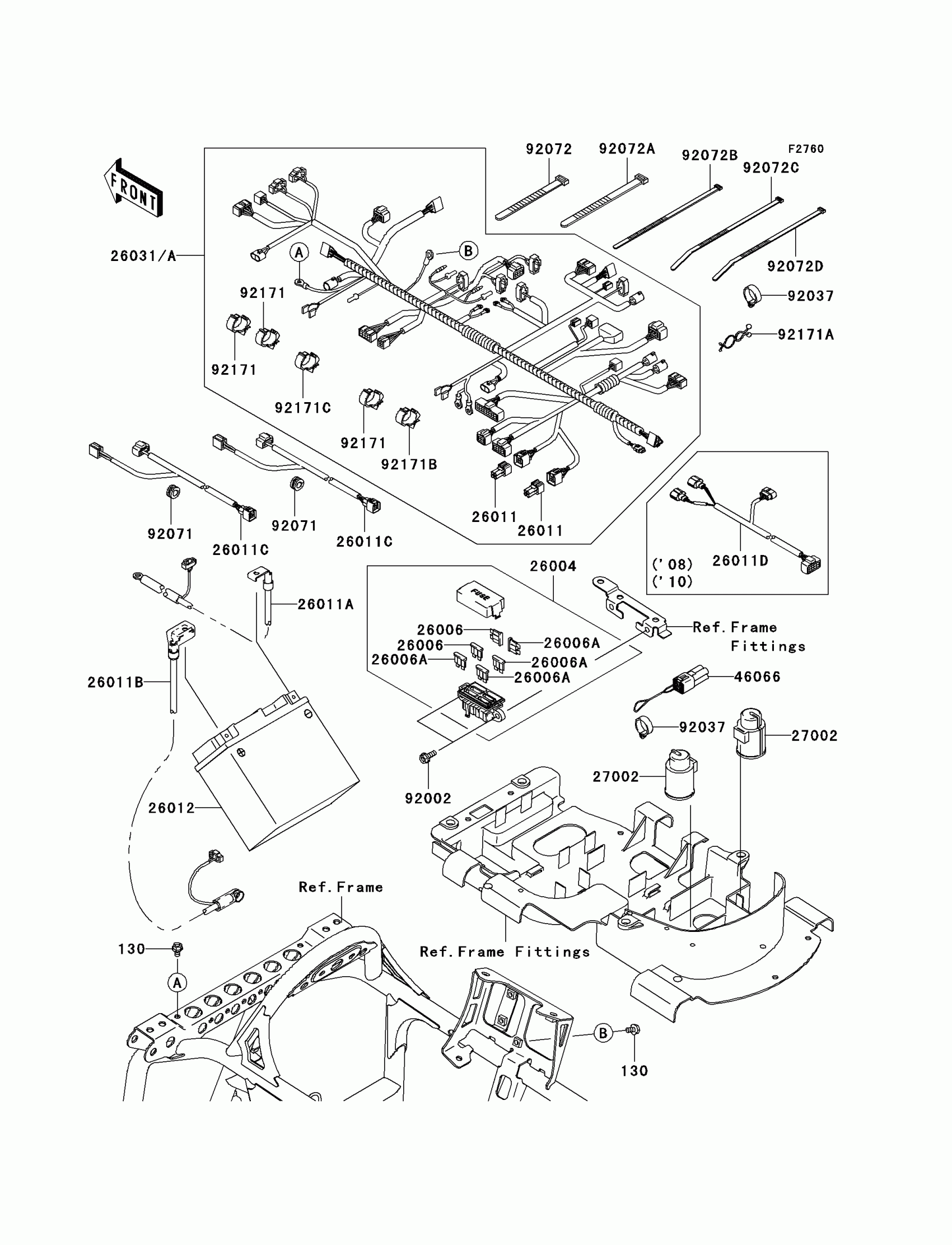

Kawasaki BRUTE FORCE® 750 4x4i Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$2.49

26004

FUSE-ASSY

26004-0016

$46.60

26006

FUSE,BLADE,30A,GREEN

26006-0004

$6.02

26006A

FUSE,BLADE,10A,RED

26006-0005

$6.02

26011

WIRE-LEAD

26011-0037

$13.02

26011A

WIRE-LEAD,BATTERY(-)

26011-0137

$53.43

26011B

WIRE-LEAD,BATTERY(+)

26011-0138

$53.43

26011C

WIRE-LEAD,HEAD LAMP

26011-0141

$33.39

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

26031A

HARNESS,MAIN

26031-0861

$371.89

27002

RELAY-ASSY

27002-1062

$45.39

46066

CONNECTOR-ASSY,RESET

46066-0001

$26.91

92002

BOLT,6X16

92002-1571

$4.69

92037

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-1128

$5.43

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73

92072D

BAND,L=292.1

92072-3509

Unavailable

92171

CLAMP,20MM DIA.

92171-0081

$4.18

92171A

CLAMP

92171-0476

$3.90

92171B

CLAMP,10MM DIA.

92171-1423

$4.18

92171C

CLAMP,DIA=15

92171-1424

$4.18
