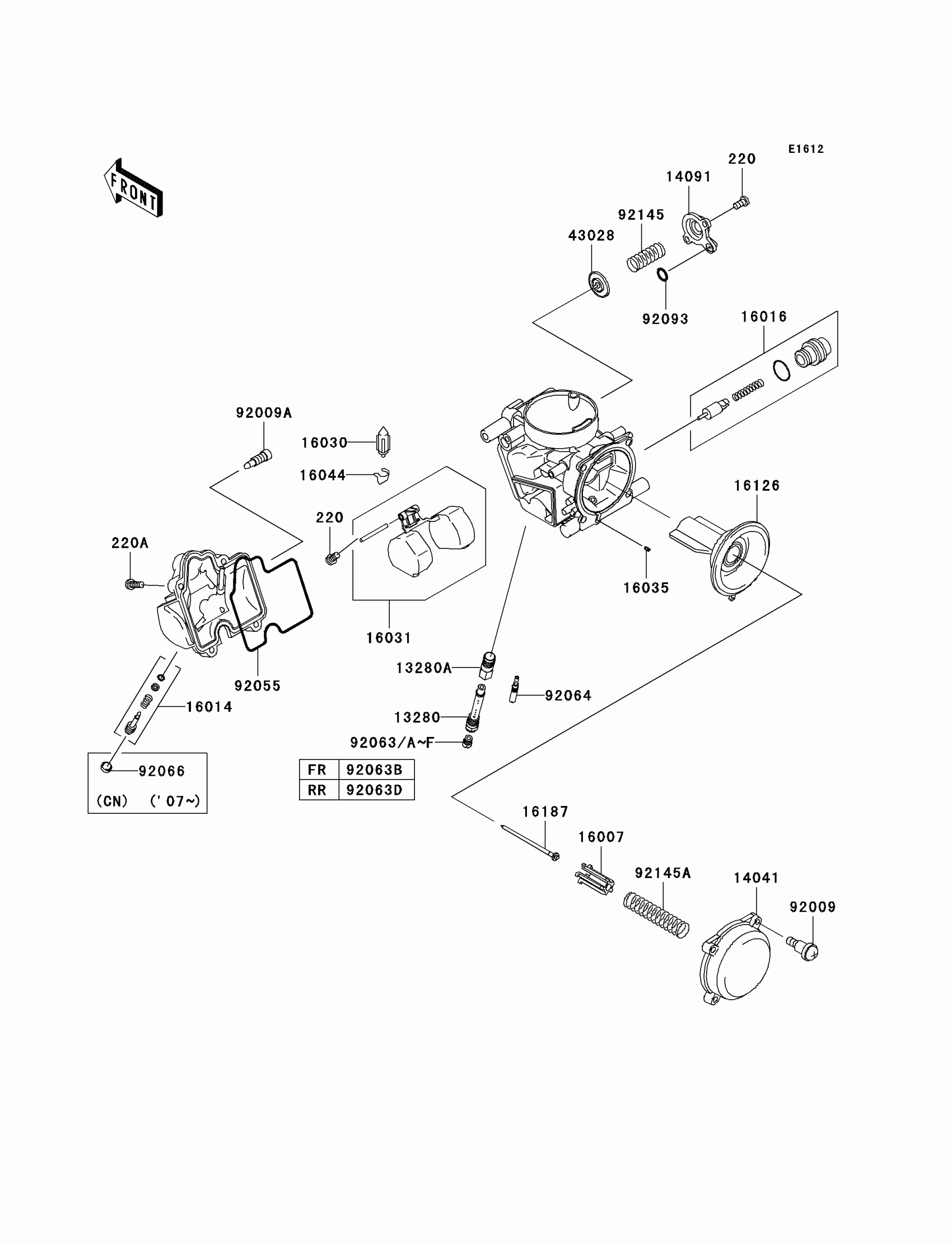

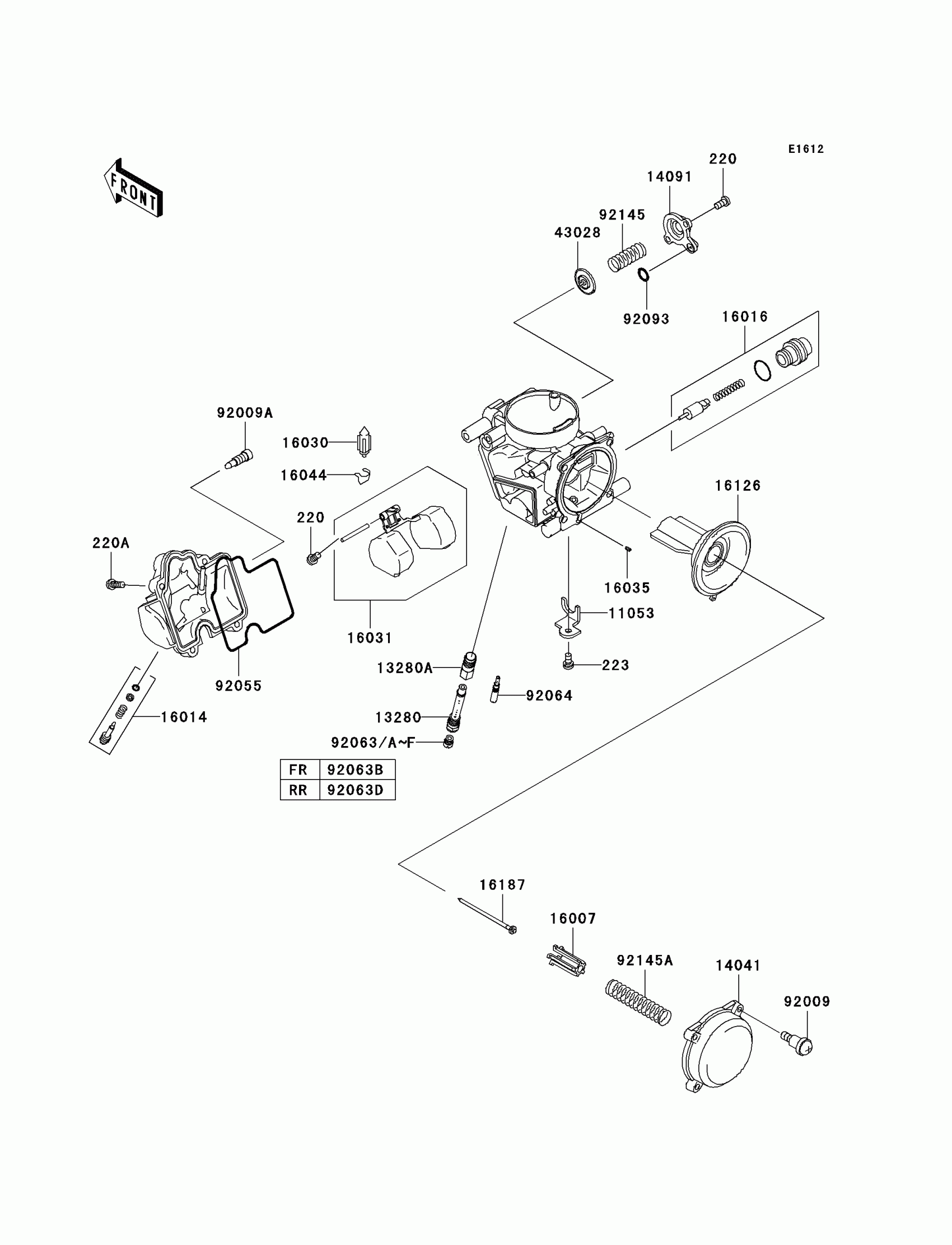

Kawasaki Brute Force 750 4x4i Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

220A

SCREW-PAN-CROS,4X14

220D0414

$4.60

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.28

11053

BRACKET

11053-1606

$9.09

13280

HOLDER

13280-0115

$51.53

13280A

HOLDER,JET

13280-1096

$29.82

14041

CAP-CHAMBER,MIXING

14041-1091

$67.66

14091

COVER,AIR CUT VALVE

14091-1246

$33.04

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16014

SCREW-PILOT AIR

16014-0009

$20.80

16016

PLUNGER

16016-1117

$64.19

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1097

$59.28

16035

JET-AIR,LEAK

16035-1055

$15.74

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE

16126-0015

$197.42

16187

NEEDLE-JET,NFKL

16187-0156

$39.22

43028

DIAPHRAGM,AIR CUT VALVE

43028-1085

$27.45

92009

SCREW,4X4.4

92009-1549

$5.24

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1589

$32.69

92063

JET-MAIN,#148

92063-1324

Unavailable

92063A

JET-MAIN,#150

92063-1330

Unavailable

92063B

JET-MAIN,#152

92063-1331

$14.79

92063C

JET-MAIN,#155

92063-1332

Unavailable

92063D

JET-MAIN,#158

92063-1344

$14.79

92063E

JET-MAIN,#160

92063-1345

Unavailable

92063F

JET-MAIN,#162

92063-1346

Unavailable

92064

JET-PILOT,#38

92064-0011

$18.63

92093

SEAL-"U"RING

92093-1046

$6.51

92145

SPRING,AIR CUT VALVE,RR

92145-0097

$8.90

92145A

SPRING

92145-0267

$7.65
