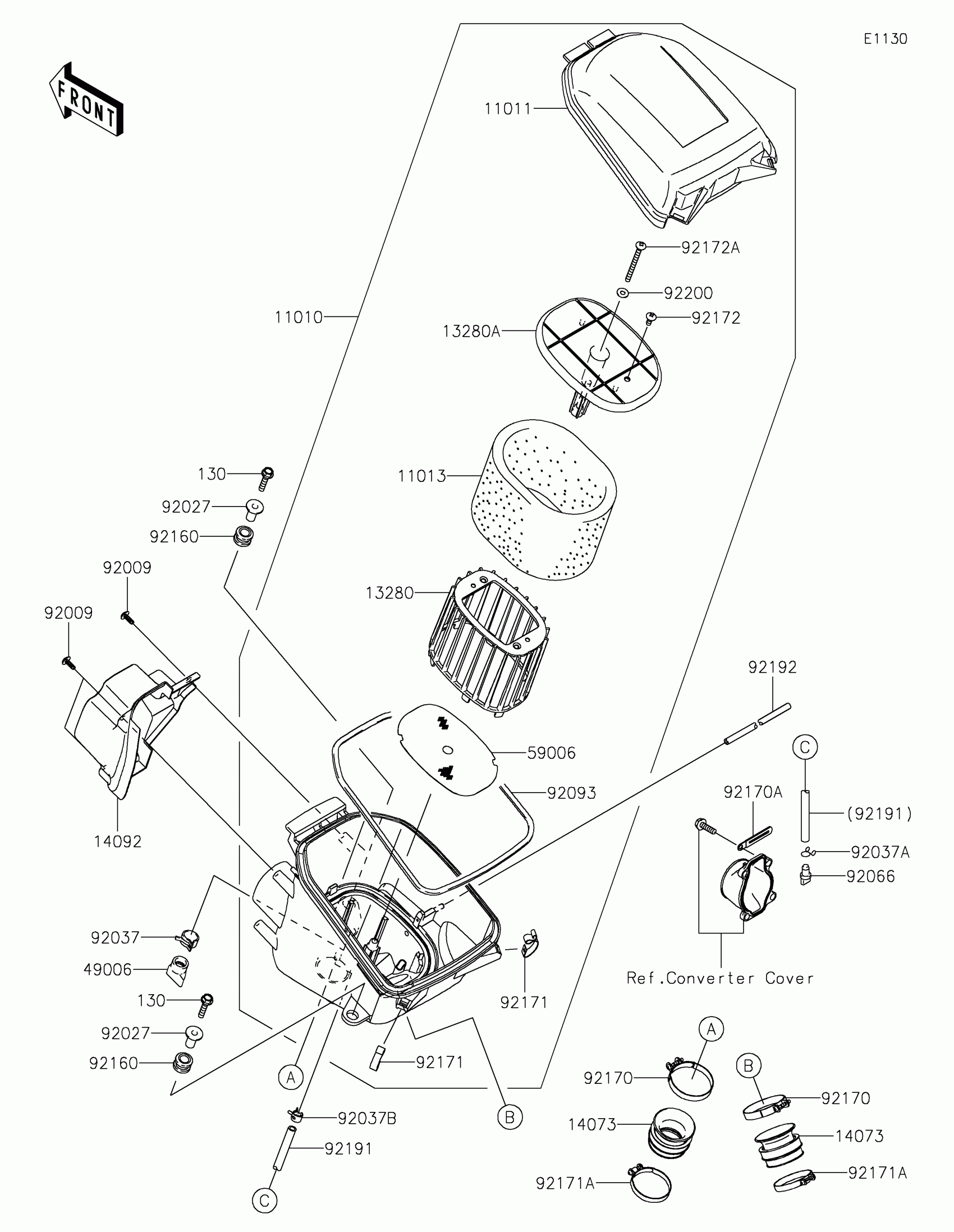

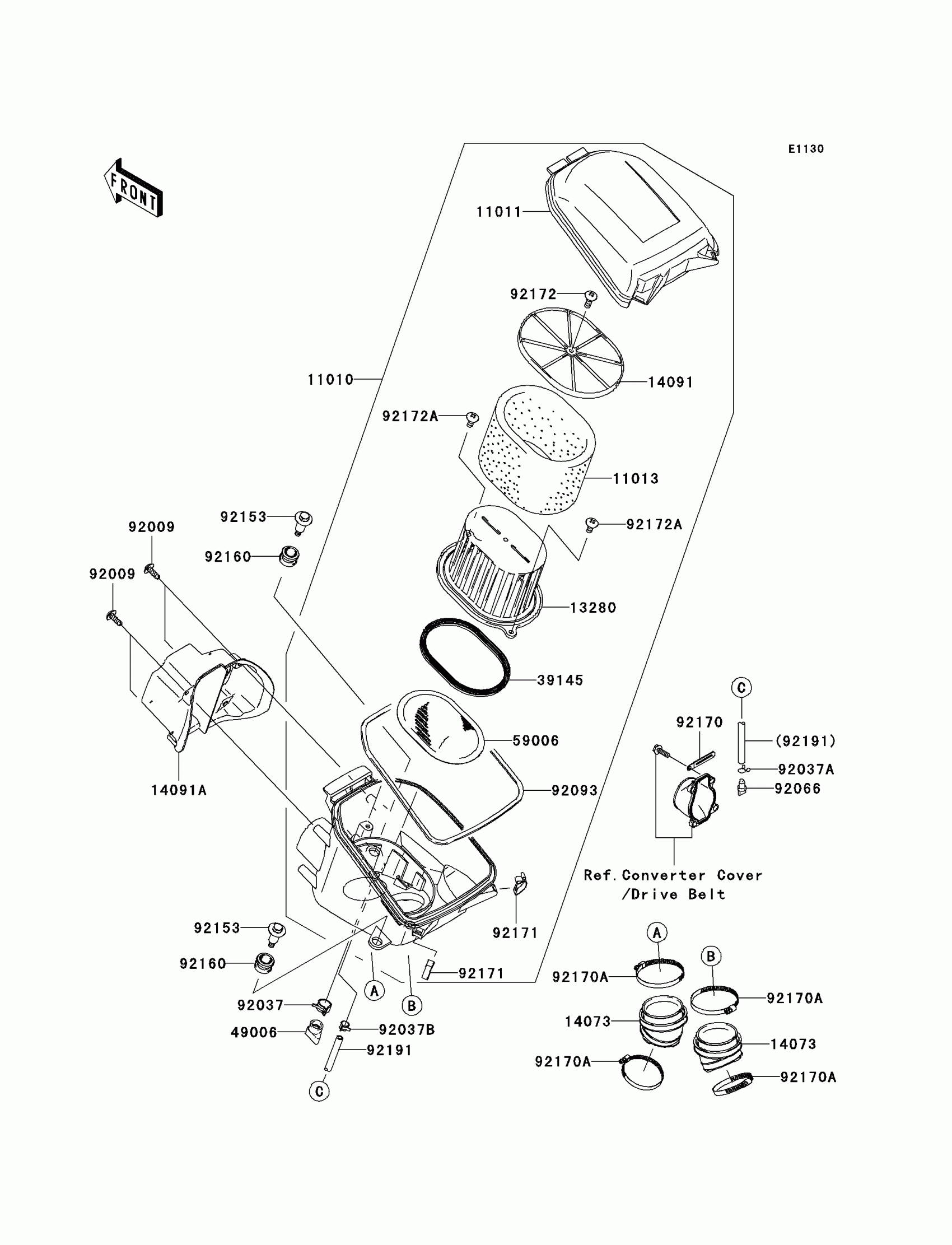

Kawasaki Brute Force 750 4x4i Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR,F.BLACK

11010-0023-6Z

Unavailable

11011

CASE-AIR FILTER,UPP,F.BLACK

11011-0017-6Z

Unavailable

11013

ELEMENT-AIR FILTER

11013-0007

Unavailable

13280

HOLDER

13280-0048

$31.64

14073

DUCT,JOINT

14073-0030

$9.32

14091

COVER,ELEMENT

14091-0163

$8.03

14091A

COVER,FR

14091-0164

$16.95

39145

TRIM-SEAL

39145-0001

$7.50

49006

BOOT

49006-1292

$7.77

59006

ARRESTER-FLAME

59006-0002

$23.76

92009

SCREW,TAPPING

92009-1113

$3.92

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,TUBE

92037-1505

$4.76

92066

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL

92093-0017

$7.87

92153

BOLT,FLANGED,6X28.7

92153-1052

$6.88

92160

DAMPER

92160-1594

$4.69

92170

CLAMP

92170-1514

$4.31

92170A

CLAMP

92170-1763

$5.70

92171

CLAMP

92171-0225

$1.97

92172

SCREW,6X18

92172-0130

$1.79

92172A

SCREW,6X14

92172-0131

$1.79

92191

TUBE,7X11X470

92191-1531

$7.22
