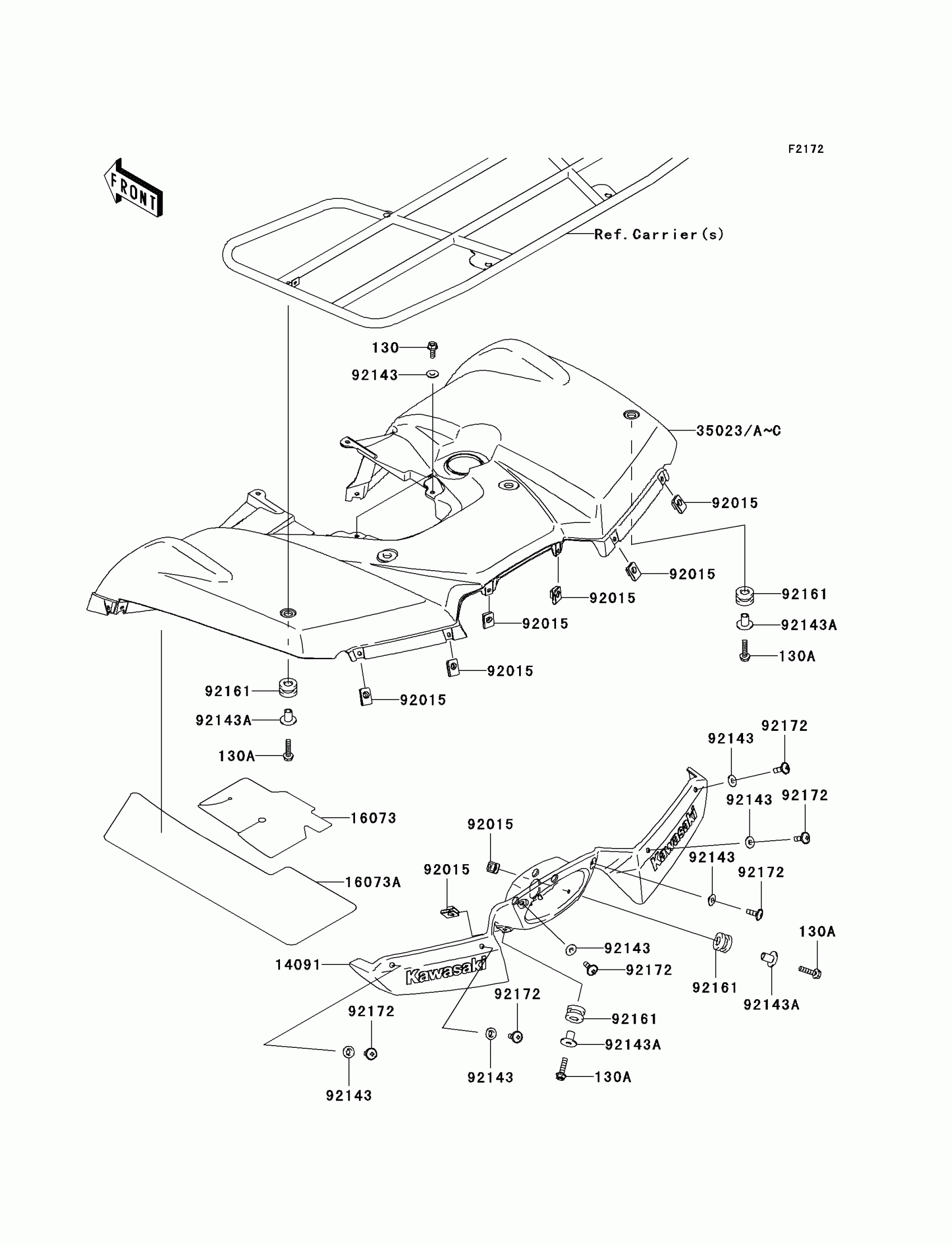

Kawasaki Brute Force 650 4x4i Rear Fender(s)(F6F-F8F) Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

14091

COVER,TAIL LAMP,F.BLACK

14091-0252-6Z

$43.20

16073

INSULATOR,REAR FENDER,INNER

16073-0031

Unavailable

16073A

INSULATOR,REAR FENDER,OUTER

16073-0032

$31.21

35023

FENDER-REAR,A.RED

35023-0050-260

Unavailable

35023A

FENDER-REAR,W.GREEN

35023-0050-286

Unavailable

35023C

FENDER-REAR,BLACK

35023-0050-839

Unavailable

92015

NUT,6MM

92015-1602

$5.61

92143

COLLAR

92143-1087

$2.98

92143A

COLLAR

92143-1960

$4.85

92161

DAMPER

92161-0106

$1.30

92172

SCREW,6X18

92172-0002

$1.98
